Selecting the Right Residential Driveway Drainage Solution in Australia

Designing for Effective Surface Water Management
Managing surface water around Australian homes is a critical component of site planning and residential design. Whether installed across a driveway, at garage entrances, or along garden paths, residential drainage systems play a vital role in protecting property, enhancing usability, and maintaining compliance with local authority regulations.

Also referred to as channel drains, strip drains, slot drains, or trench drains, these systems are largely interchangeable in function, although some manufacturers may use specific terms to denote subtle variations in design or performance.

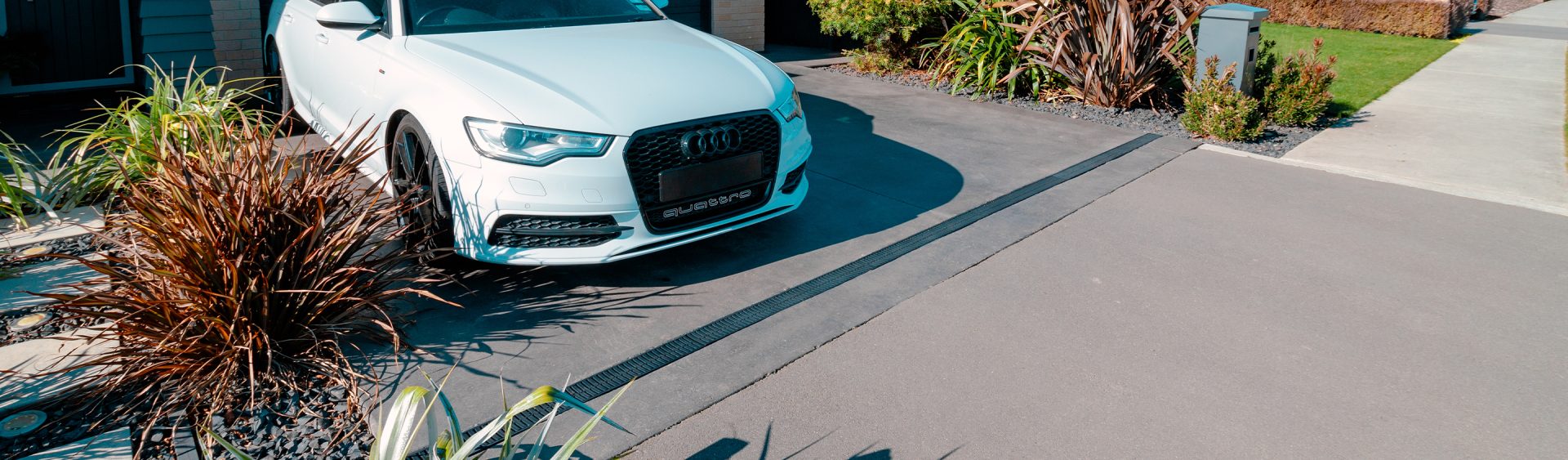

Why Driveway Drainage Matters
Driveway drainage is essential for redirecting surface water away from vulnerable areas, such as garages, building foundations, and paved paths. In modern developments, sections are often graded to direct water down toward the street, but this can lead to issues where heavy rainfall overwhelms council stormwater systems or in cases where topography channels water toward the home.

In these situations, strategic placement of driveway channel drains can effectively intercept and redirect runoff. Common installation points include:

• Across the garage door entrance

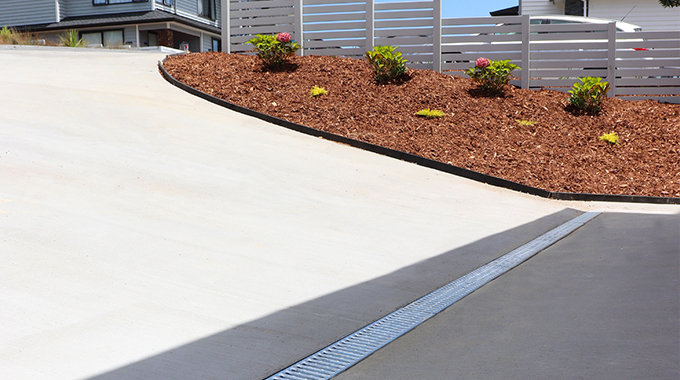

• At the bottom of a sloped driveway
• Along the property boundary line
• Beside paths and building entry points

Channel drains are particularly useful for capturing stormwater before it enters the home or public footpaths, protecting property and complying with council requirements to minimise runoff from impermeable surfaces.

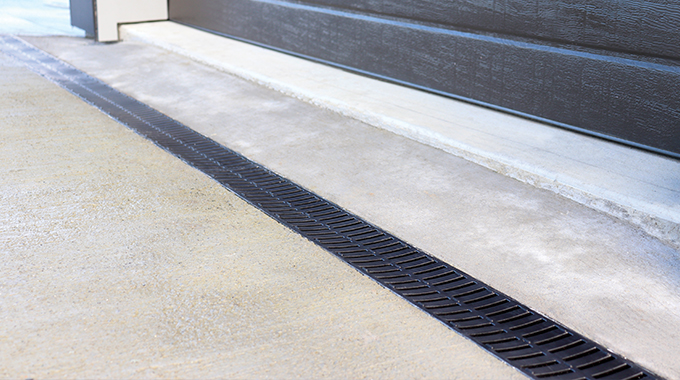

Drainage at the Garage Door
A garage door drain—installed across the width of the garage opening—is a simple but crucial detail in Australian residential design. It allows for level access into the garage while preventing ingress of surface water during storms.

To ensure effective operation, a slight external ramp is recommended, guiding water away from the internal slab. It is also important that the drain body is installed outside the garage floor slab, allowing for full concrete encasement and structural integrity—particularly important when the system is subject to vehicle loads.

Grate Selection: Function, Form, and Flow
Choosing the right grate affects both the performance and aesthetic of a drainage system. Factors such as hydraulic capacity, safety, blockage resistance, and visual appearance should all be considered.

Key considerations include:

Open area: Grates with a higher open surface (e.g., wedge wire) offer superior flow but may be more prone to blockage or unsuitable for areas where small objects could fall through.

Slot drains: Allproof’s 15mm Slot Drain offers a discreet visual solution for flat surfaces such as courtyards or pool surrounds. However, they may not be suitable at the base of steep driveways where flow rates are higher.

Outlet positioning: Vertical outlets generally allow for faster drainage compared to end-of-line horizontal outlets. Including multiple outlets can also enhance flow efficiency.

Load Rating and Installation Best Practices
Driveway drains must meet appropriate load class standards under AS3996. For residential driveways that support heavier vehicles or boats, a minimum Class C rating is recommended.

Where turning movements are expected (e.g., driveways with narrow access or multiple vehicles), dynamic loads can shift grates. In such cases, using a system with grate lockdowns—like those in Allproof’s Polymer Concrete range—will prevent movement, minimise damage to surrounding concrete, and extend system life.

Proper installation requires full concrete encasement, with at least 100mm of cover below and to the sides of the channel. For paved finishes, concrete should be installed up to the required surface depth to preserve structural strength.

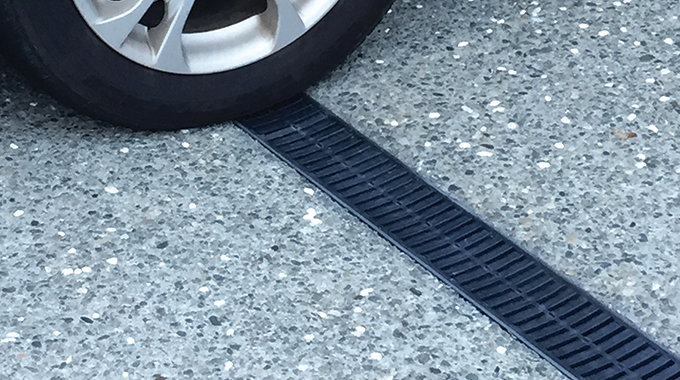

Recommended System: Allproof Domestic Channel
Allproof’s Domestic Channel is an ideal solution for most residential driveway applications. Manufactured from 100% recycled polypropylene using solar energy, it provides a sustainable, lightweight, and durable option that is easy to install and maintain.

Grate Material Options
Selecting the right grate material enhances durability and ensures compatibility with environmental and aesthetic requirements:

• Galvanised Steel: Cost-effective with good durability, though subject to weathering over time as the zinc layer breaks down.
• 304/316 Stainless Steel: Highly resistant to corrosion. 316-grade is recommended for coastal or marine environments.
• Cast Iron: Extremely robust. Offers unique aesthetics through its natural oxidised patina but is generally more suited to commercial or high-load residential areas.
• Glass-Filled Nylon / Polypropylene: Non-reactive, colour-stable, and ideal for modern, black-finish architectural designs.

Maintenance for Optimal Performance
Routine maintenance ensures longevity and performance of driveway drainage systems. It is advisable to:

• Clean grates monthly or whenever external surfaces are washed.
• Adjust cleaning schedules during autumn or storm-heavy seasons.
• Remove and clean grates every six months.
• Clear sediment and debris from pits and sumps connected to the stormwater system.

Seasonal maintenance schedules should be tailored to local conditions across Australia’s diverse climate zones, from tropical QLD and NT to cooler VIC and TAS.

Sustainability and Quality Assurance
Allproof is committed to manufacturing processes that align with environmental goals. By using recycled materials, solar-powered production, and maintaining local manufacturing, Allproof supports reduced carbon footprints while ensuring high-performance products for long-term use in Australian homes.
