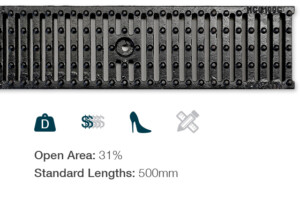

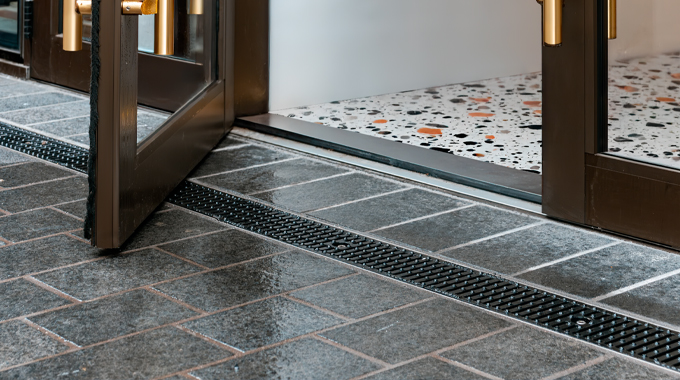

Heelproof Cast Iron

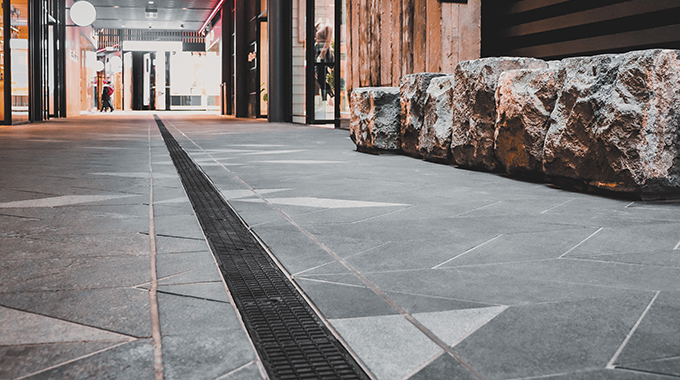

Cast Iron

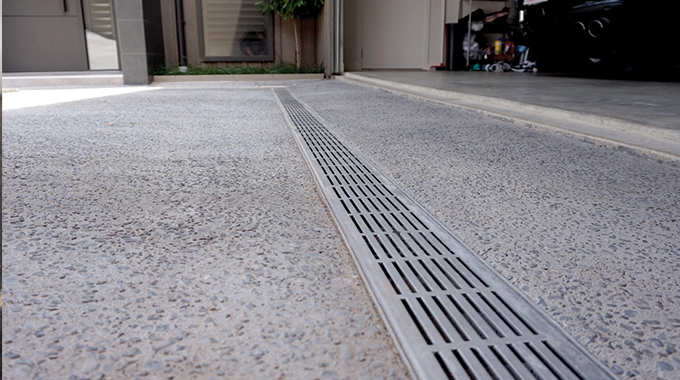

LAS
GFN

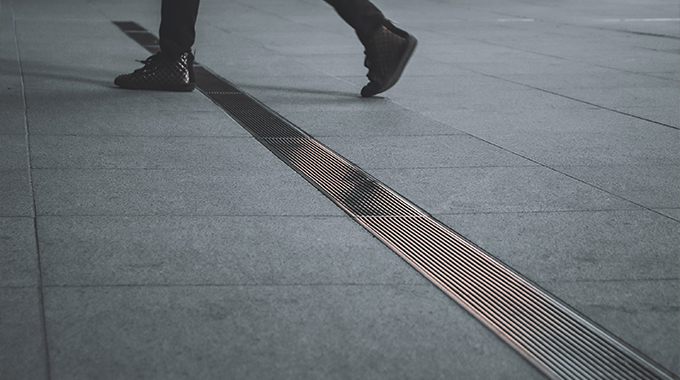

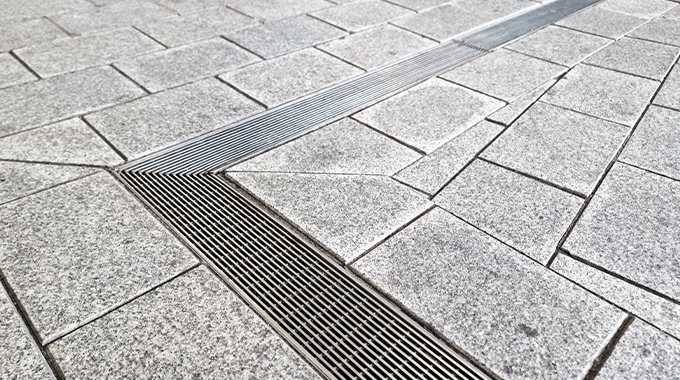

Pressed Stainless

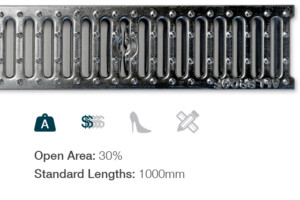

Pressed Galv

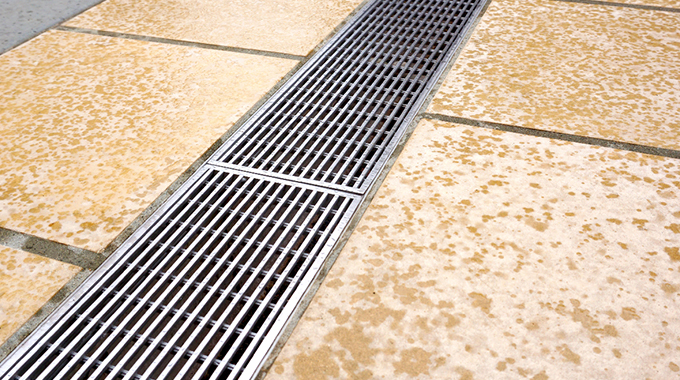

Ladder

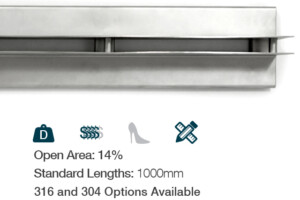

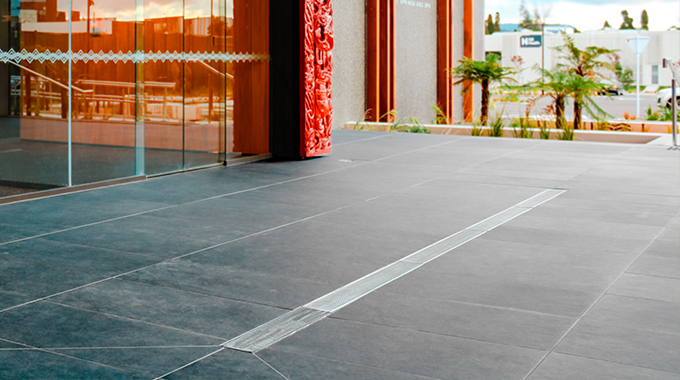

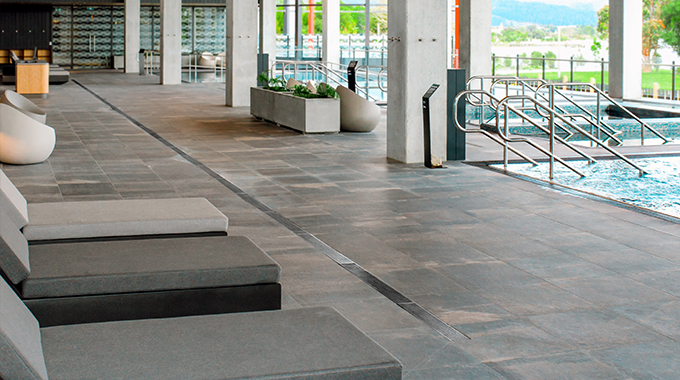

Stainless Centre Slot

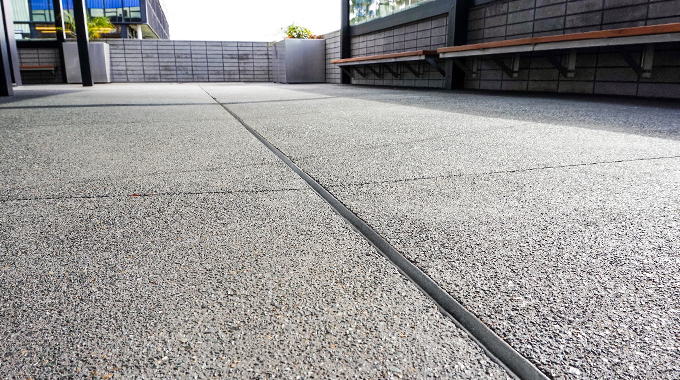

Galv Centre Slot
Stainless Offset Slot
Galv Offset Slot

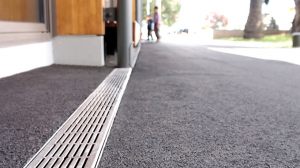

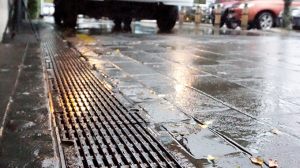

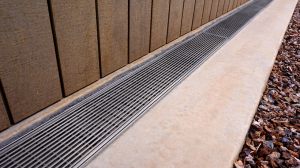

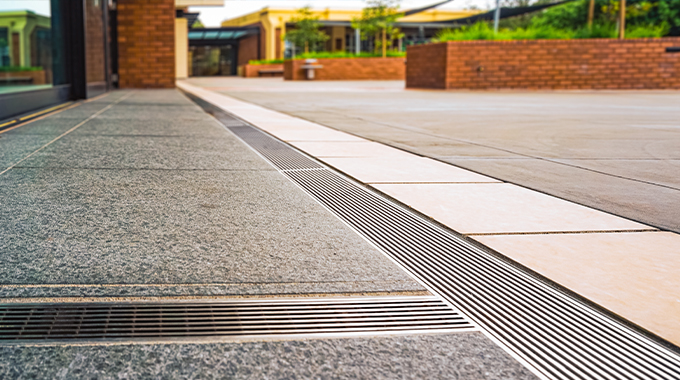

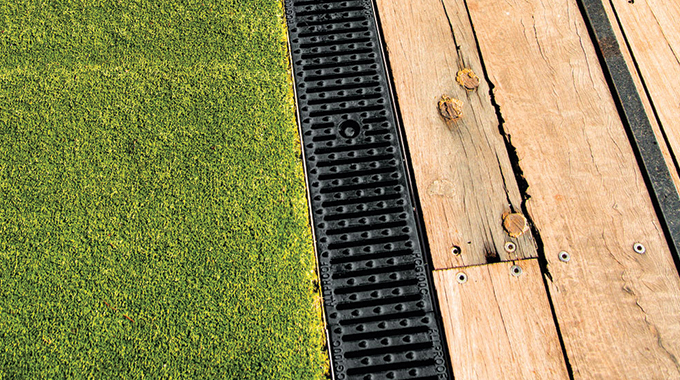

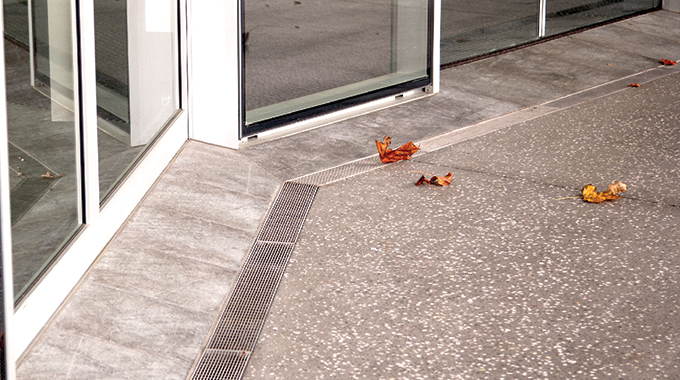

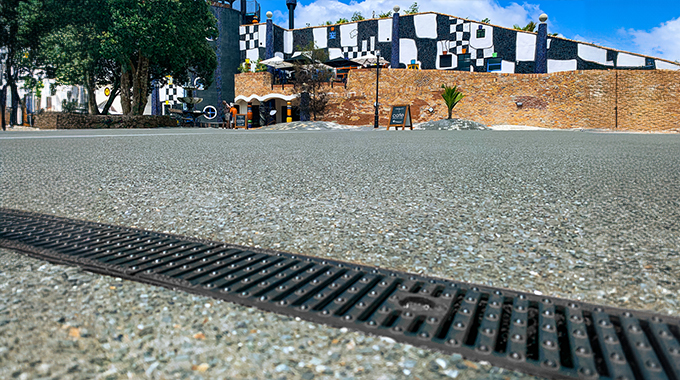

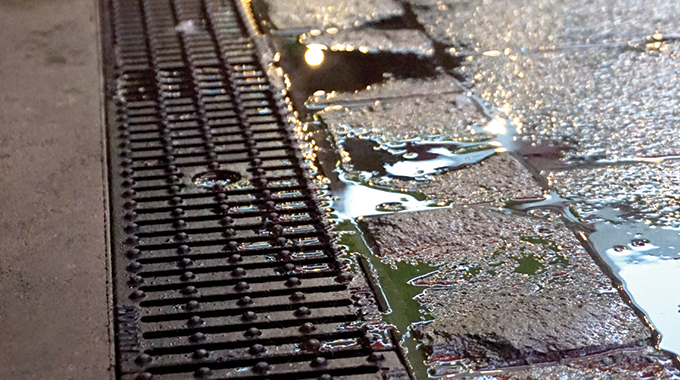

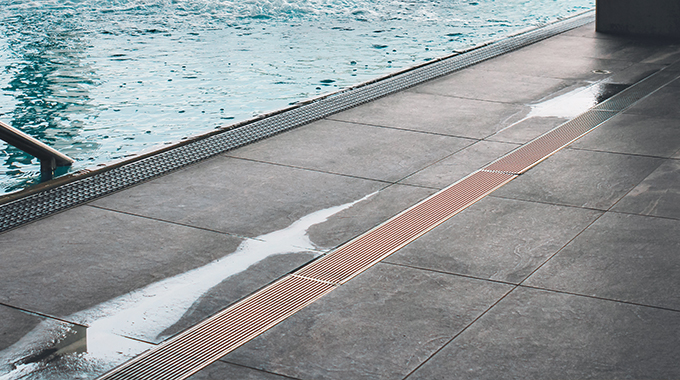

100MM Opening Polymer Concrete Channel Drain
100MM Opening Polymer Concrete Channel Drain

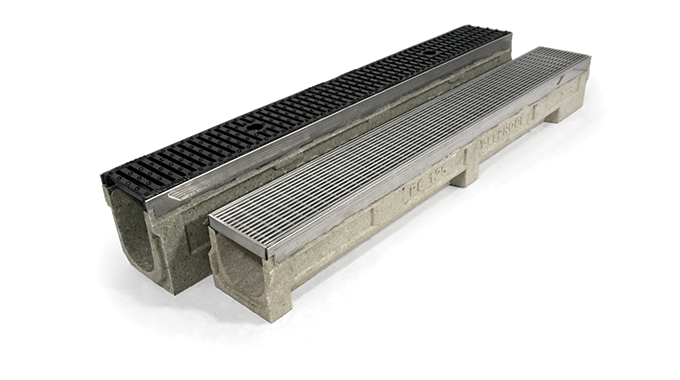

A heavy-duty, high‑capacity linear stormwater drainage solution designed for residential and commercial applications. Made using polymer concrete for improved chemical resistance and low permeability, this strip drain system ensures long‑term performance in demanding environments.
Features
- 100 mm clear opening
- Depth options: 75 mm to 225 mm
- Supplied in 1 m lengths for flexible installation
- Joiner channels create fall along runs
- Inline sump option for mirrored layouts and indefinite run lengths
- 12 grate options, load class rated A–D (lockdowns included)
- Optional PC Clamp available

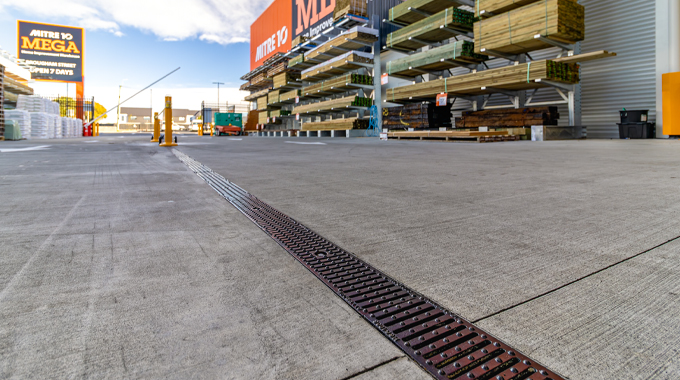

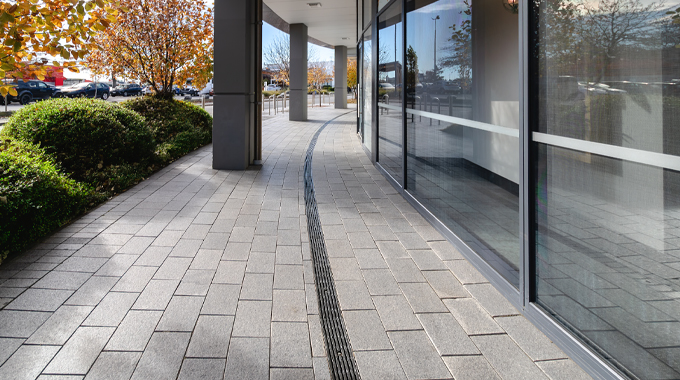

- Suitable for streets, laneways, car parks, loading bays, service stations, communal areas and internal facilities such as breweries
75mm SS/GALV
75-125mm SS/GALV Channel Joiner
125mm SS/GALV
125-175mm SS/GALV Channel Joiner
175mm SS/GALV
175-225mm SS/GALV Channel Joiner
225mm SS/GALV
SS/GALV Inline Sump
Standard stainless finish is supplied as default on Stainless Steel products unless otherwise advised.
Stainless Steel
Electropolished Stainless Steel
Galvanised Steel
Cast Iron
Glass Filled Nylon

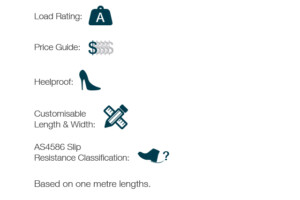

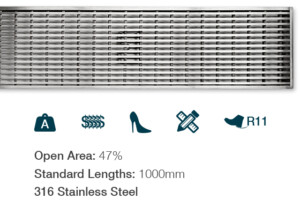

316 Stainless Steel Wedgewire
Galv or 304 Stainless Steel Grate
Heelproof Cast Iron Grate
Cast Iron Grate
304 Stainless Steel Laser Grate
304 Stainless Steel Ladder Grate
Glass Filled Nylon Grate
Galv Centre Slot Drain
Galv Offset Slot Drain
End Caps
End caps aren’t included with channels, please specify amount of end caps required when requesting a quote.
Revit Files
PCCI.rvt
PCGCSL.rvt

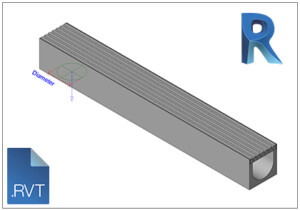

PCGFN.rvt

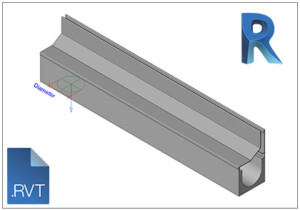

PCGOSL.rvt
PCSS.rvt

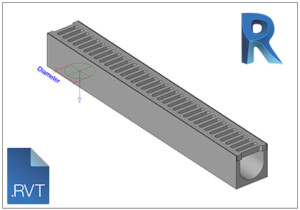

PCGS.rvt

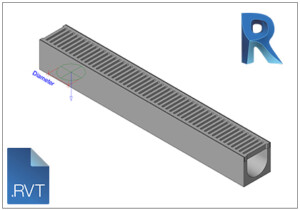

PCHCI.rvt
PCLAS.rvt

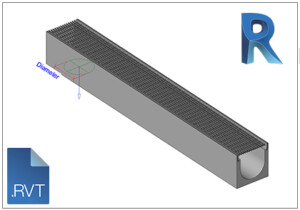

PCWW.rvt

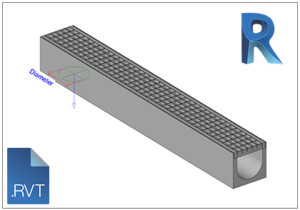

PCLAD.rvt
Install Drawings
PC Install.pdf
PC Install.dwg
PC Inline Sump Install.pdf
PC Inline Sump Install.dwg
PC Clamp Install
Technical Documents
Install Guide
Load Class
Material Analysis Report
Cast Iron Material Information
Galv Material Information
System Example
The system design accommodates runs of up to 43 meters, terminating at a sump. A mirror image can then be run in the opposite direction, resulting in maximum length of 76 meters between sumps. Overall system length is unlimited. This may be reduced dependent on required flow rates or other constraints. We suggest talking to a Hydraulics Consultant with your exact requirements.
