BT100 Cleanout Drain Inspection Point
BT100 Cleanout Drain Inspection Point
The BT100 is a robust cleanout designed to provide quick and reliable access for drainage system inspection and maintenance. Featuring a durable cast base and a secure, anti-slip lid, it ensures safe and convenient use in both commercial and residential environments.
The push-fit connection to 100mm PVC pipe allows for fast installation, making it ideal for plumbing contractors and maintenance teams. Available in three premium finish options, 316 stainless steel, cast brass, and chrome-plated brass, the BT100 cleanout suits a wide range of applications, including high-traffic or public spaces, thanks to optional security screws that deter tampering.
Features:
-
- Cleanout access for inspection and maintenance
- Push-fit connection for 100mm PVC pipe
- Durable cast base
- Anti-slip grooved lid
- Finishes: 316 stainless steel, cast brass, chrome-plated brass
- Lockdown screws with optional security screw
- Load rated to Class B (AS 3996)

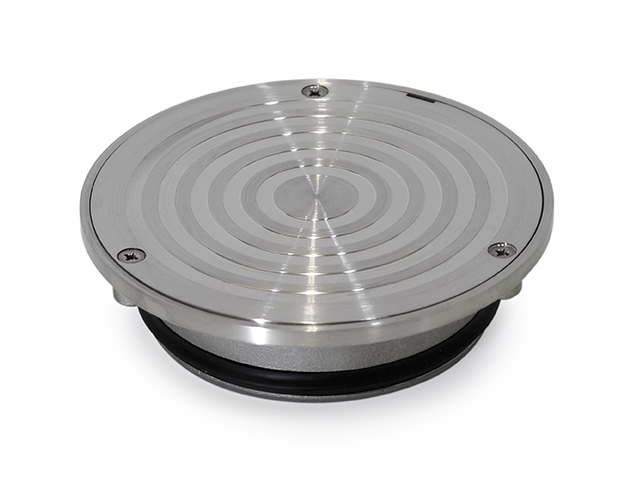

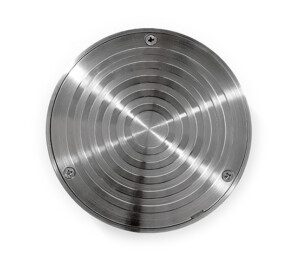

316 Stainless Steel

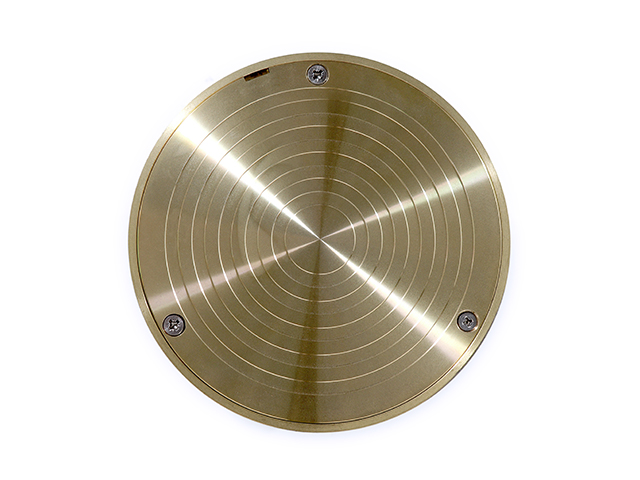

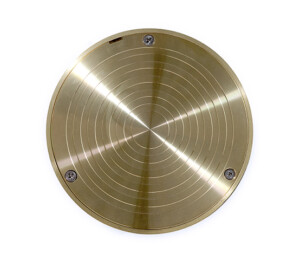

Brass

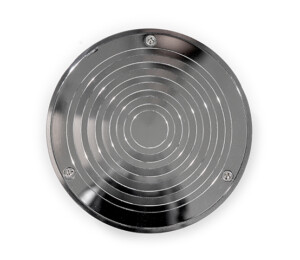

Chrome Plated
BT
| wdt_ID | Code | Description | .pdf File | CAD File |
|---|---|---|---|---|
| 5 | BT100SS | 100mm bolted trap screw SS316 | ||
| 6 | BT100BR | 100mm bolted trap screw brass | ||
| 7 | BT100CP | 100mm bolted trap screw chrome plated |
BT With Security Screw
| wdt_ID | Code | Description | .pdf File | CAD File |
|---|---|---|---|---|
| 5 | BT100SS SEC | 100mm bolted trap security screw SS316 | ||
| 6 | BT100BR SEC | 100mm bolted trap security screw brass | ||
| 7 | BT100CP SEC | 100mm bolted trap security screw chrome plated |
Install

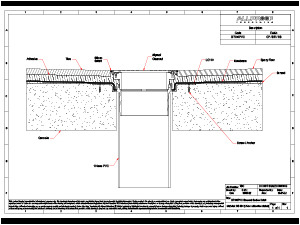

BT100PVC Install Detail
