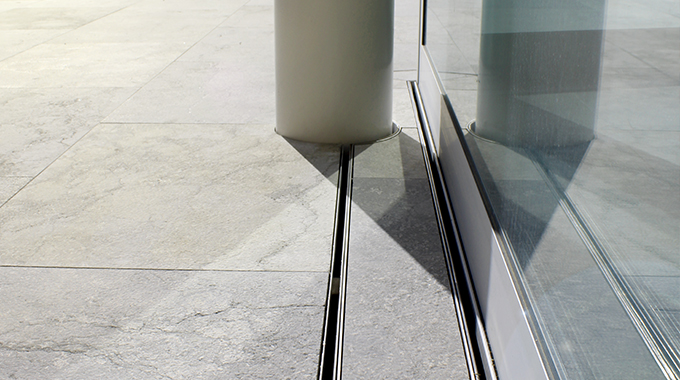

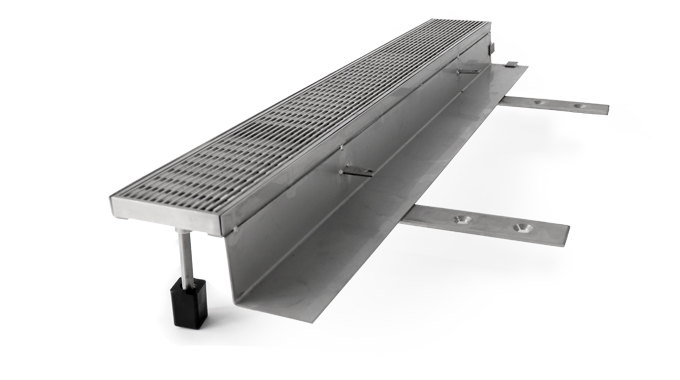

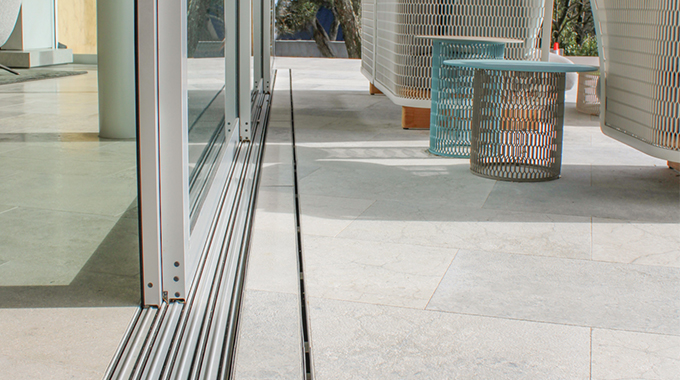

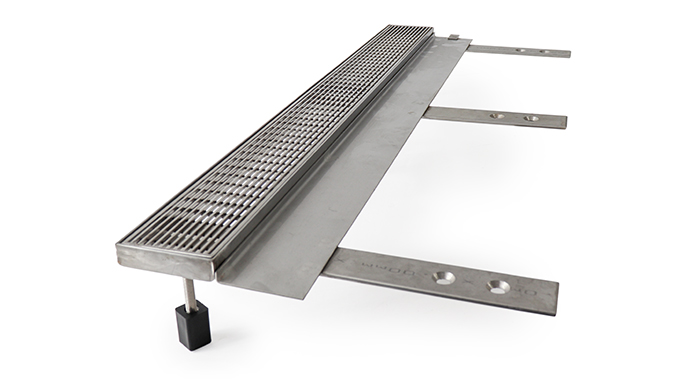

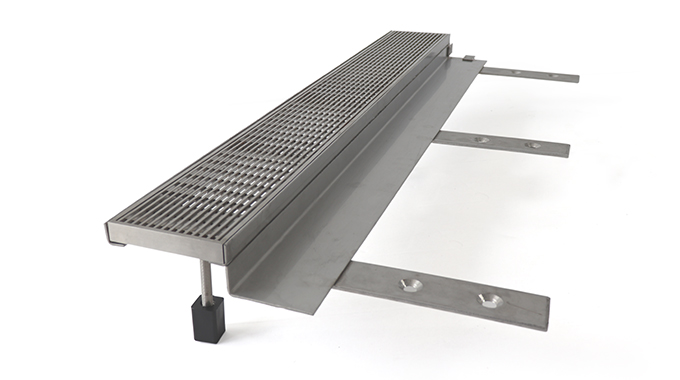

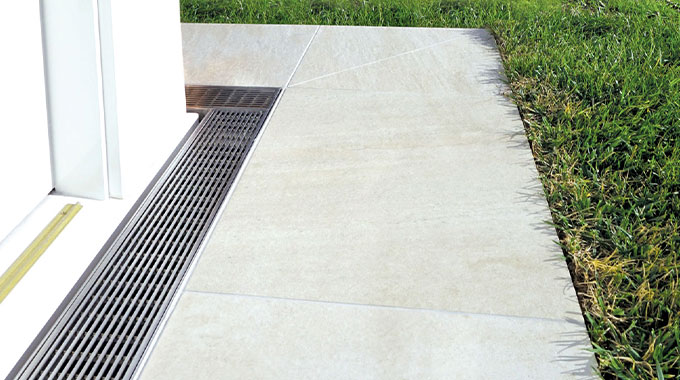

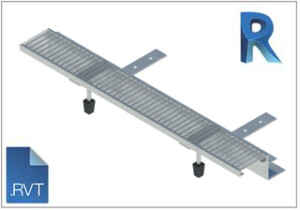

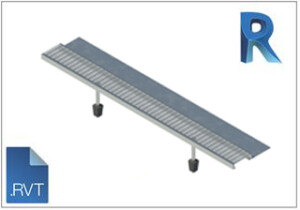

The Cantilever Bracket provides a permanent mounting solution for level threshold drainage, suitable for both tile/paver and concrete finishes. It can be bolted to the exterior slab before finishing or cast into the slab for concrete surfaces. For tiled or paved installs, slab set-down details can be supplied to manufacture the bracket to match the final surface depth.

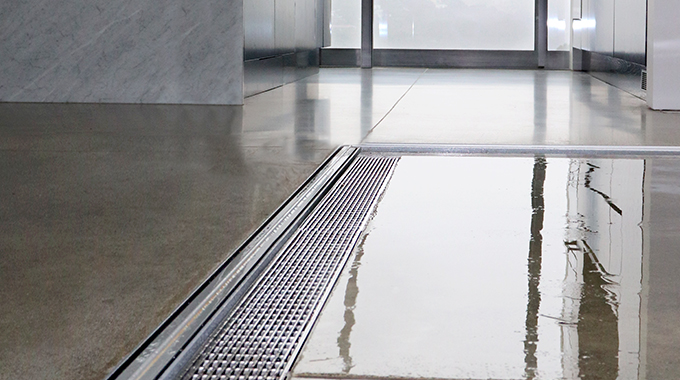

This two-pour concrete option creates a platform for the bracket and a second finished surface pour, delivering a durable and compliant solution that mechanically separates the drain from joinery. By supporting tiles or pavers on a continuous bar, the system allows for a narrow reveal while maintaining reliable drainage performance.

Fully customisable to suit project-specific requirements, the Cantilever Bracket has a load class rating of A, making it ideal for pedestrian foot traffic.

Features

• • Supports tile/paver or concrete finishes
  • Permanent mounting option for level threshold drains
  • Can be bolted to the slab or cast into concrete
  • Maintains drip line separation between bracket and joinery
  • Allows for large-capacity channel with narrow reveal
  • Fully customisable to match project slab set-down and drainage layout
  • Designed for pedestrian foot traffic (Load Class A)

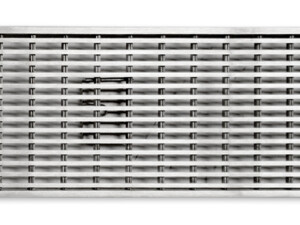

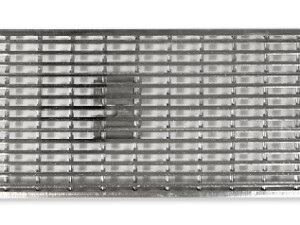

  • Grate options:

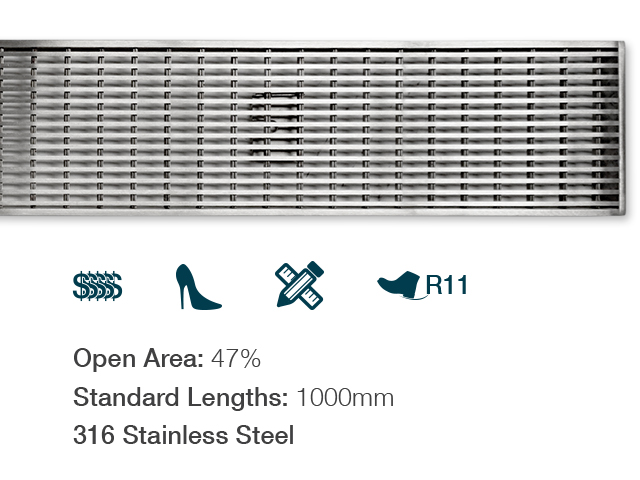

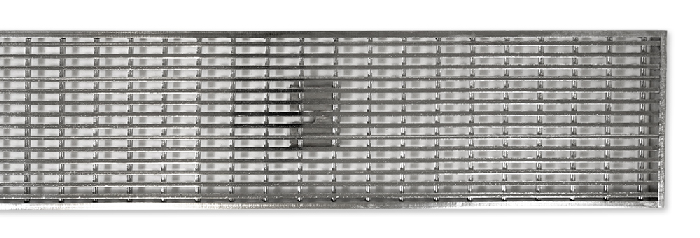

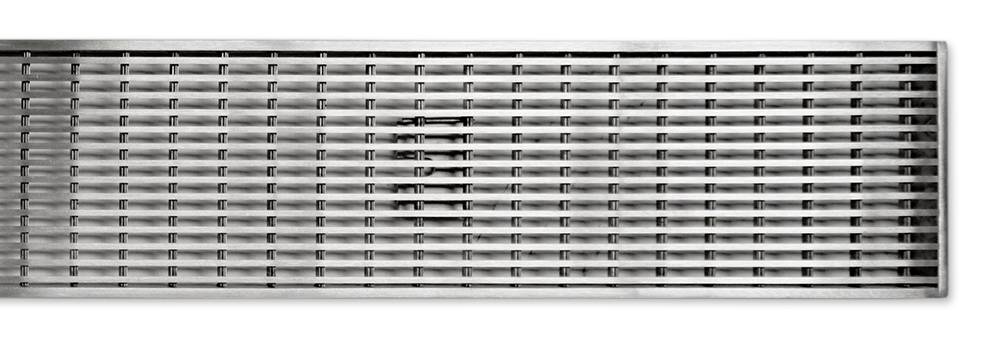

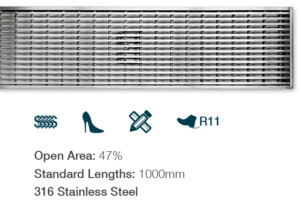

    – Wedge Wire (WW)

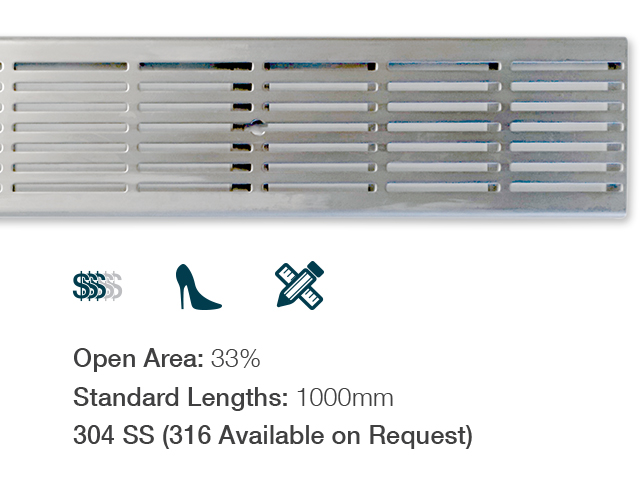

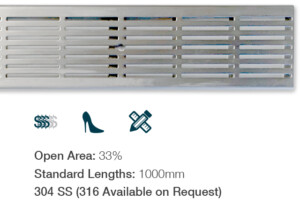

    – Laser (LAS)

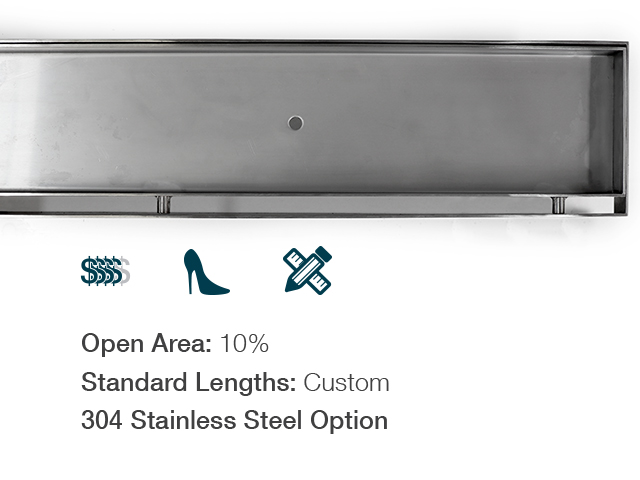

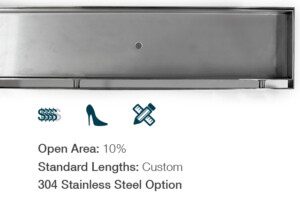

    – Tile Insert (TI)

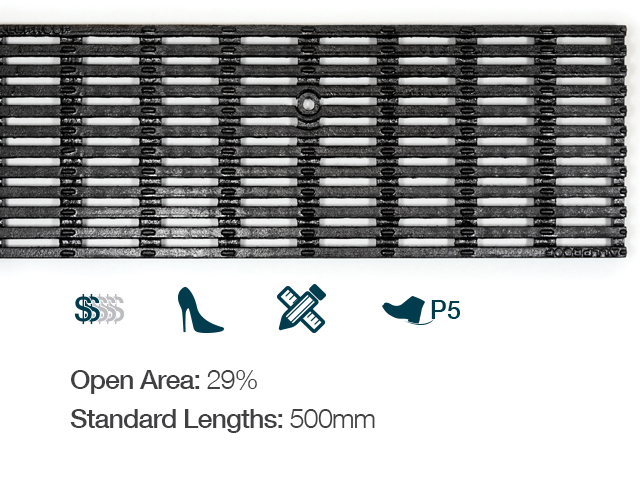

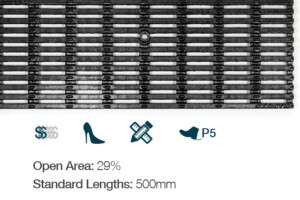

    – Heelproof Cast Iron (HCI)

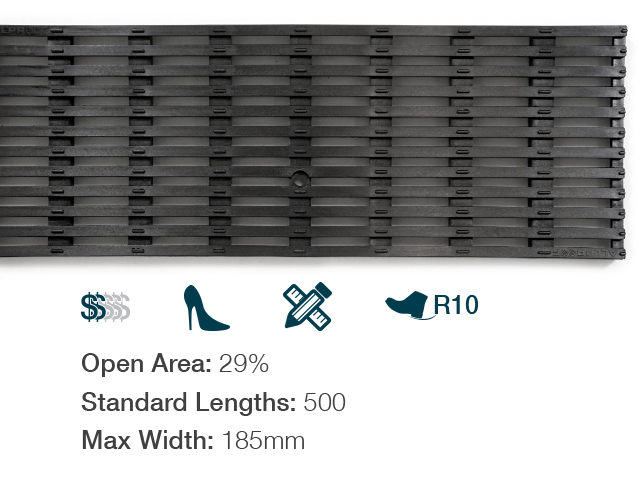

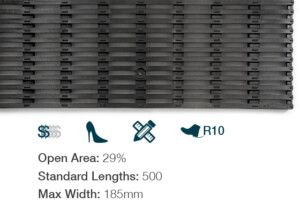

    – Glass Filled Nylon (GFN)
