Cast Bronze Vinyl Flange

Name: Cast Bronze Vinyl Flange
SKU: VCR 168.50VCRSS 168.50VCRSS90 168.65VCRSS 168.65VCRSS90 168.80VCRSS 168.100VCRSS 168.80VCR/HINGE 168.100VCR/HINGE 168.50VCRBR 168.50VCRBR90 168.65VCRBR 168.65VCRBR90 168.80VCRBR 168.100VCRBR 168.50VCRCP 168.50VCRCP90 168.65VCRCP 168.65VCRCP90 168.80VCRCP 168.100VCRCP

Cast Bronze Vinyl Flange

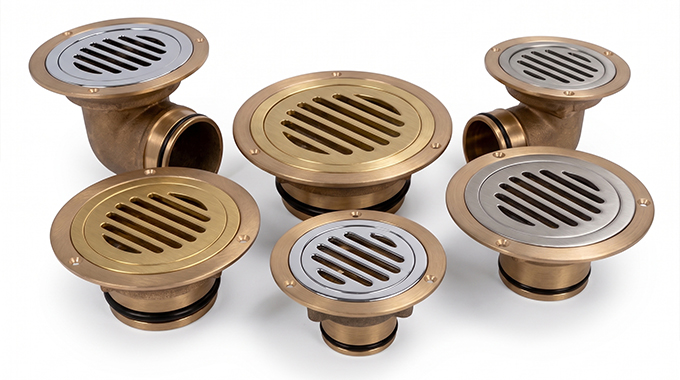

The Cast Bronze Vinyl Flange is ideal for vinyl showers, vinyl flooring, and membrane roofing systems used across Australian construction. It’s compatible with 50mm, 65mm, 80mm, and 100mm pipe risers, making it suitable for both residential and commercial applications. Manufactured from premium cast bronze, this flange offers exceptional durability and a long service life.

Features:

- Premium cast bronze construction for maximum durability
- Clamp ring system with stainless steel screws for secure membrane fastening
- Cam-lock grate for easy cleaning without compromising the seal
- Flush floor finish for a seamless, trip-free surface
- Optional 88° side outlet and double strainer basket for improved flexibility
- Grates available in stainless steel, polished brass, or chrome on brass

Stainless Steel

wdt_ID	Code	Description
9	168.80VCR/HINGE	80mm Cast Bronze Base with Stainless Steel Hinged Grate and Clamp Ring

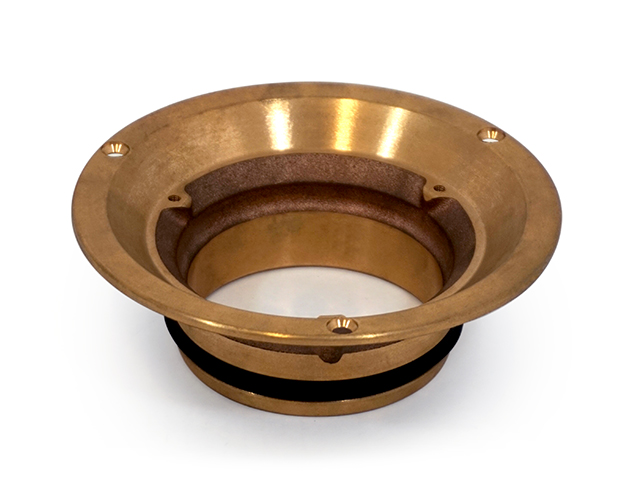

10	168.100VCR SS	100mm Cast Bronze Base with Stainless Steel Grate and Clamp Ring

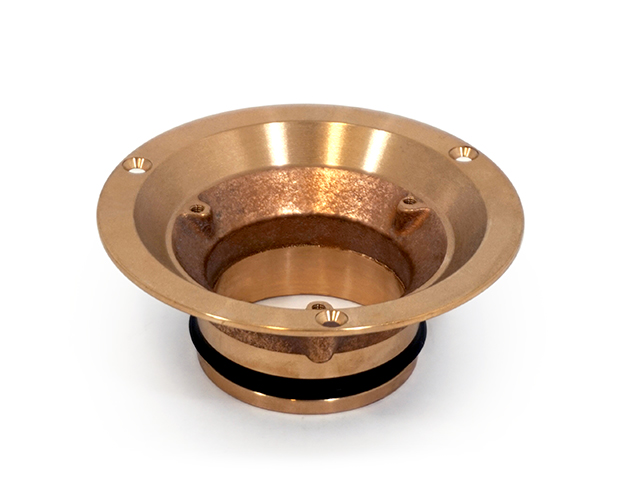

11	168.80VCR SS	80mm Cast Bronze Base with Stainless Steel Grate and Clamp Ring

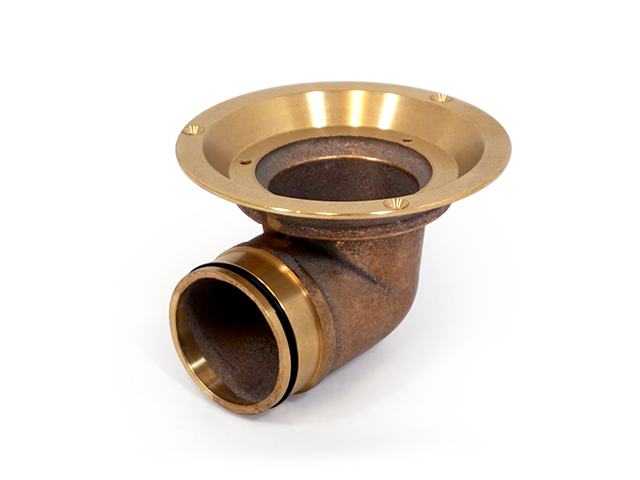

12	168.65VCR SS 90	65mm Cast Bronze Base 90° bend with Stainless Steel Grate and Clamp Ring

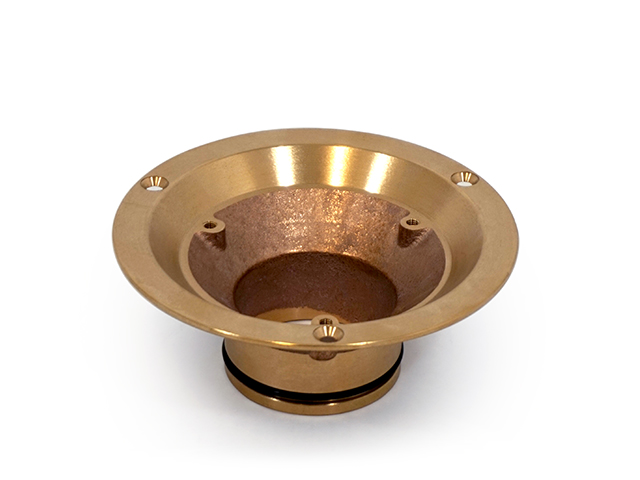

13	168.65VCR SS	65mm Cast Bronze Base with Stainless Steel Grate and Clamp Ring

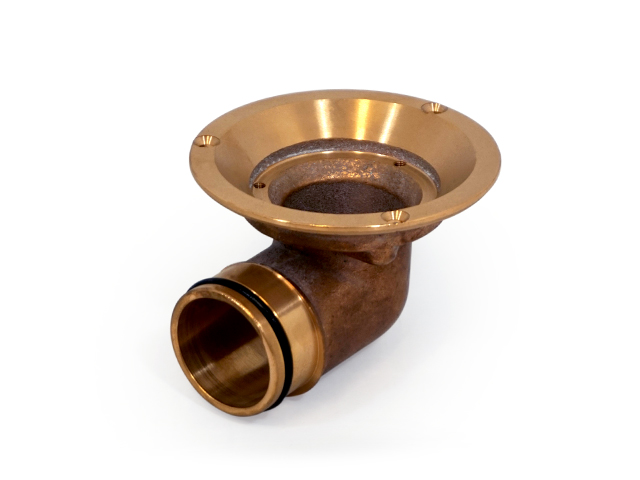

14	168.50VCR SS 90	50mm Cast Bronze Base 90° bend with Stainless Steel Grate and Clamp Ring
15	168.50VCR SS	50mm Cast Brass Bronze with Stainless Steel Grate and Clamp Ring
16	168.100VCR/HINGE	100mm Cast Bronze Base with Stainless Steel Hinged Grate and Clamp Ring

wdt_ID	Code	Description

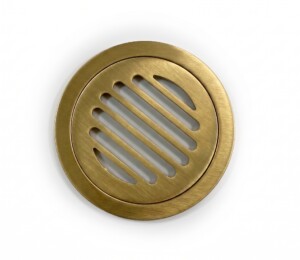

17	168.100VCR BR	100mm Cast Bronze Base with Brass Grate and Clamp Ring

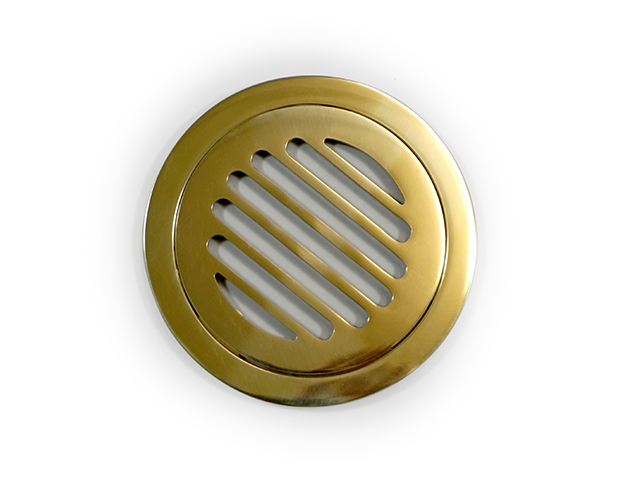

18	168.80VCR BR	80mm Cast Bronze Base with Brass Grate and Clamp Ring
19	168.65VCR BR 90	65mm Cast Bronze Base 90° bend with Brass Grate and Clamp Ring
20	168.65VCR BR	65mm Cast Bronze Base with Brass Grate and Clamp Ring
21	168.50VCR BR 90	50mm Cast Bronze Base 90° bend with Brass Grate and Clamp Ring
22	168.50VCR BR	50mm Cast Bronze Base with Brass Grate and Clamp Ring

wdt_ID	Code	Description
17	168.100VCR CP	100mm Cast Bronze Base with Chrome Plated Grate and Clamp Ring

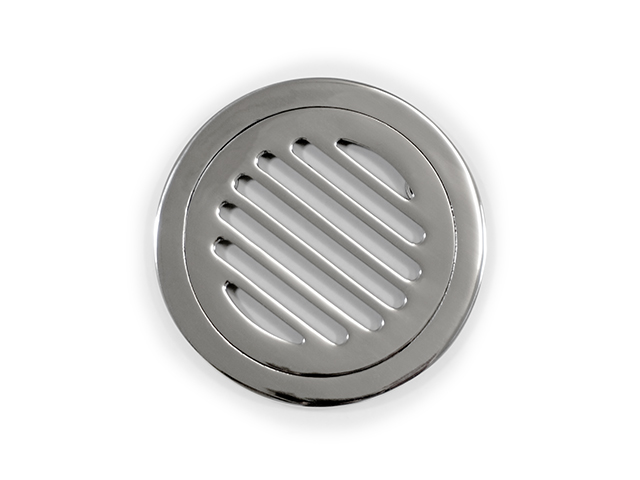

18	168.80VCR CP	80mm Cast Bronze Base with Chrome Plated Grate and Clamp Ring
19	168.65VCR CP 90	65mm Cast Bronze Base Base 90° with Chrome Plated Grate and Clamp Ring
20	168.65VCR CP	65mm Cast Bronze Base with Chrome Plated Grate and Clamp Ring
21	168.50VCR CP 90	50mm Cast Bronze Base Base 90° with Chrome Plated Grate and Clamp Ring
22	168.50VCR CP	50mm Cast Bronze Base with Chrome Plated Grate and Clamp Ring

Cast Bronze Vinyl Flange

Cast Bronze Vinyl Flange

Features:

Stainless Steel

Brass

Chrome Plated

Revit

Specialists in Plumbing, Drainage & Passive Fire Protection Products

Allproof Industries is a New Zealand family-owned manufacturing, marketing and distribution company specialising in Plumbing, Drainage Systems and Fire Protection Products.

Cast Bronze Vinyl Flange

Cast Bronze Vinyl Flange

Features:

Stainless Steel

Brass

Chrome Plated

Revit

Related Products

Storm Series Stormwater Drain

Vinyl Clamping Channel

Vinyl Double Strainer Basket

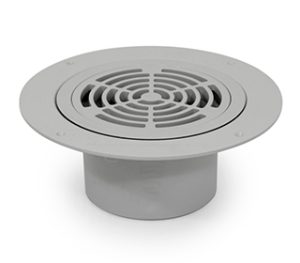

Vinylrite
