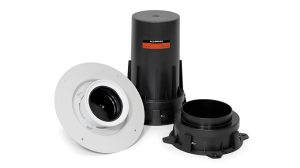

Allproof Cast-In Fire Rated Floor Waste Collar Kits provide a fully fire-rated solution for floor waste penetrations.

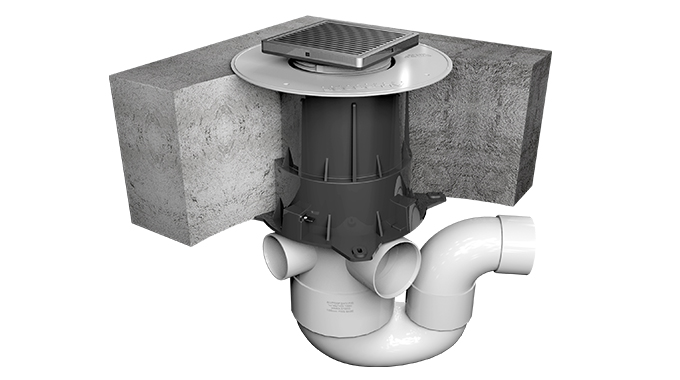

Cast-in collars for fire-rated floor waste kits are ideal for on-site poured slabs. Simply secure the cast-in fire collar in the desired location, pour the concrete, trim the plastic collar to the correct height, and install the plumbing system. The kit includes an Allproof Cyclone or Tilt A Grate puddle flange, offering a fire-rated floor waste system. These puddle flanges feature adjustable spigots, saving labor during installation. The fire-rated floor waste has been tested with riser junctions and a gully trap, allowing for the convergence of multiple drainage systems.
Ideal for high-density and medium-density projects, such as apartment blocks, it’s an excellent solution for fire-rating bathroom floor waste drains where multiple systems (shower drain, floor waste, etc.) connect to a single drain waste vent.
Subscribe for Product Updates
Cast-in Collar Fire Rated Floor Wastes
wdt_ID | Code | Description | .pdf File | CAD File |
---|---|---|---|---|

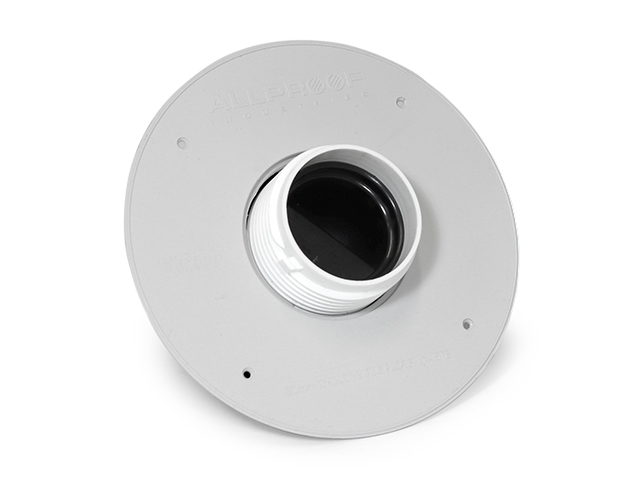

13 | CYC100 FR | 100mm Cyclone Fire Rated | ||

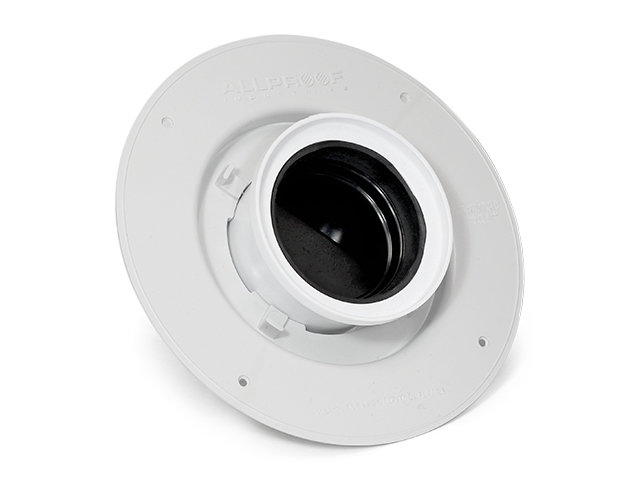

14 | TG100 FR | 100mm Tilt A Grate Fire Rated |

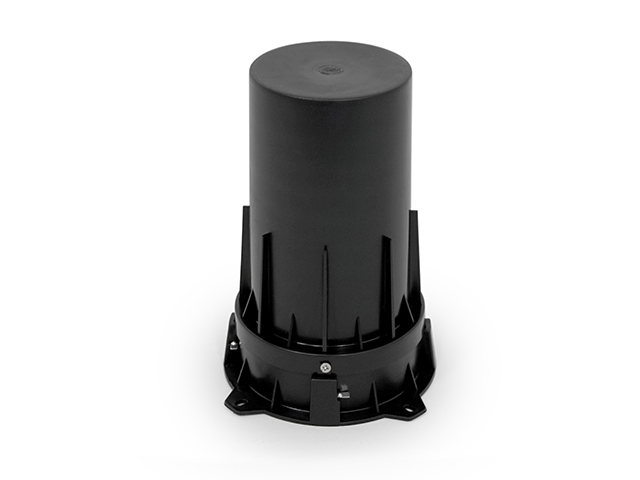

Cast-In Fire Collars
wdt_ID | Code | Description | .pdf File | CAD File |
---|---|---|---|---|
16 | CIFC50S | 50mm Cast In Fire Collar | ||
17 | CIFC80S | 80mm Cast In Fire Collar | ||
18 | CIFC100S | 100mm Cast In Fire Collar | ||
19 | CIFC150S | 150mm Cast In Fire Collar |

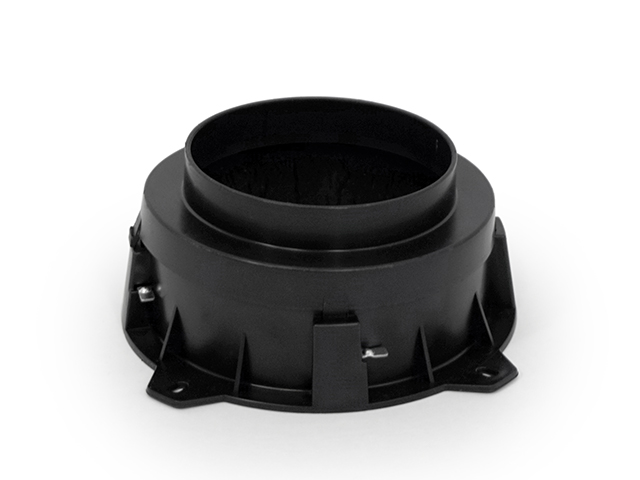

Low Cast-In Collars
Installation Instructions:
-
- Nail to formwork in correct location.
- Pour concrete floor.
- Remove formwork ensuring galvanised steel ring is exposed.
- Cut plastic collar to desired height.
- Install pipework and fire rated floor waste kit.

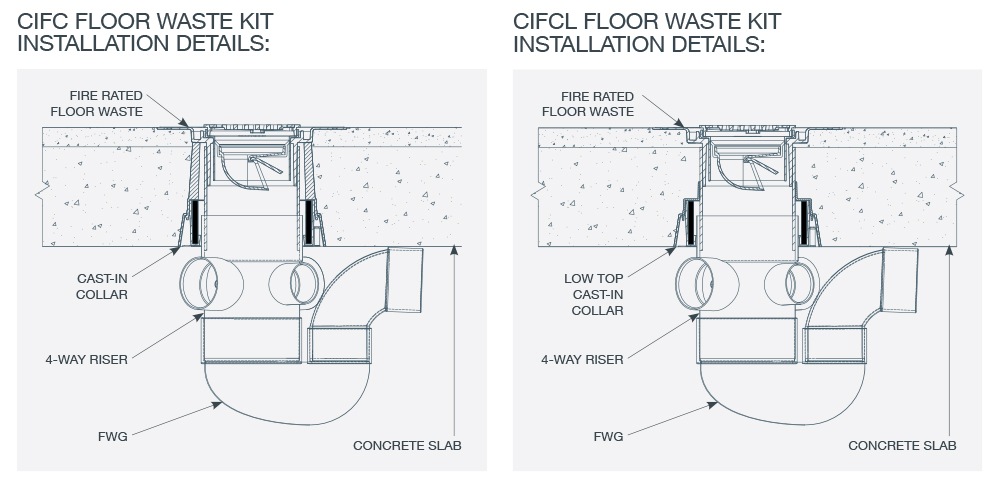

Installation Details
