Commercial Channel – 200mm Clear Opening Strip Drain

Commercial Channel – 200mm Clear Opening Strip Drain

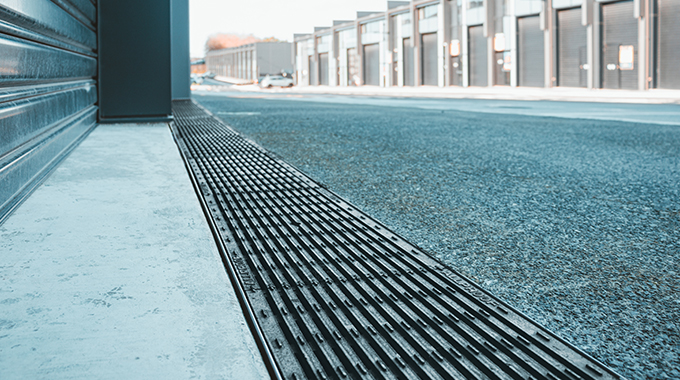

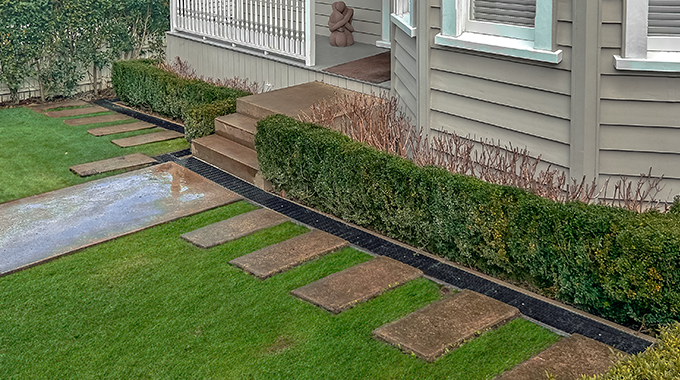

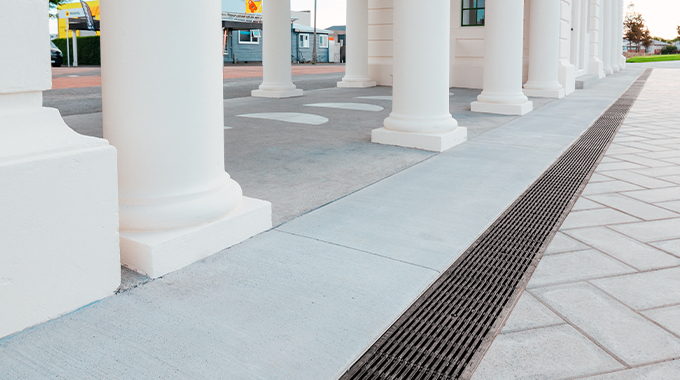

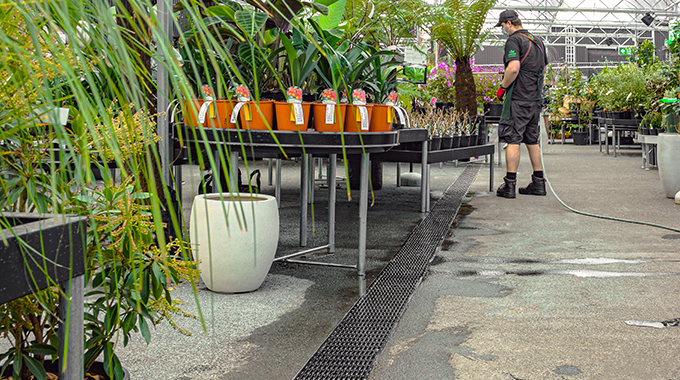

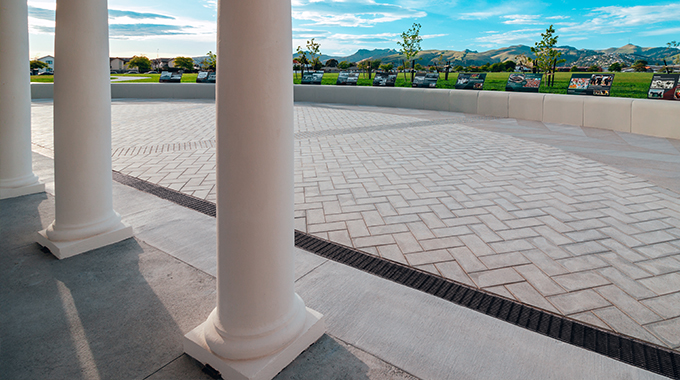

The Allproof Commercial Channel is a 200 mm clear opening linear strip drain designed for commercial stormwater management. Injection moulded from 100% recycled material, it offers an environmentally conscious and economical solution.

This durable trench drain system is designed to utilise the strength of surrounding concrete, creating a robust and long-lasting installation. Grates are load class tested to AS3996, ranging from pedestrian (A) to heavy commercial (D), making this system suitable for a wide variety of applications. For high-traffic pedestrian areas, the stainless steel wedge wire grate (R11 slip resistance) is ideal for aesthetics, while heelproof cast iron grates provide reliable performance in heavy vehicle areas.

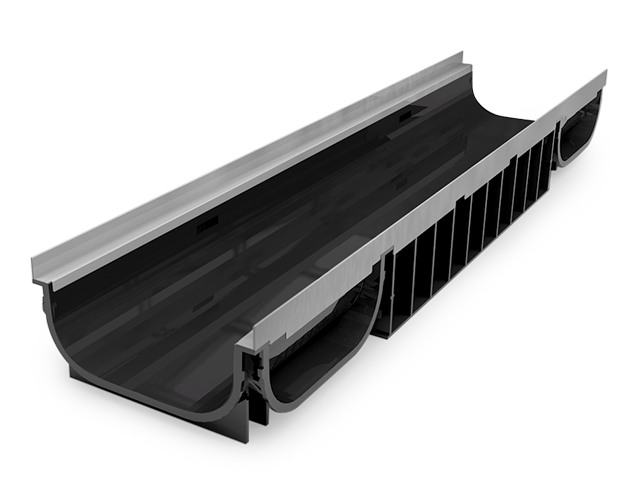

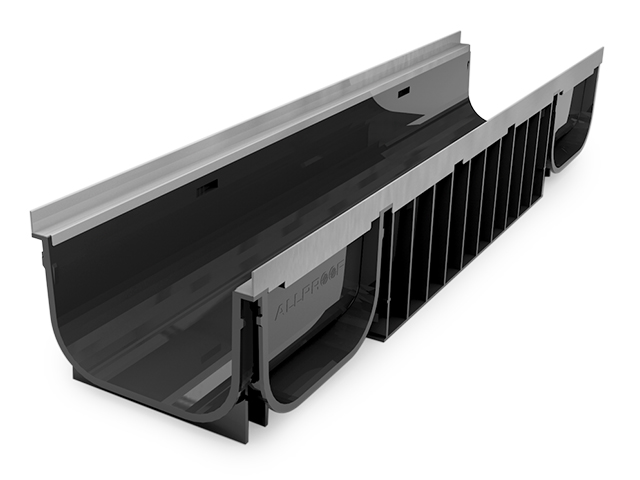

The Commercial Channel is available with 100 mm or 150 mm internal depth options, supplied in lightweight 1 m sections with stainless steel or galvanised steel edge rails for a clean and durable finish.

Features

    • 200 mm clear opening
    • 100 mm or 150 mm internal depth options
    • Injection moulded from 100% recycled plastic using renewable solar energy
    • Designed to be concrete-encased for maximum strength
    • Grates load class tested to AS3996 (A–D)
    • Stainless steel wedge wire grate (R11 slip resistance) for pedestrian areas

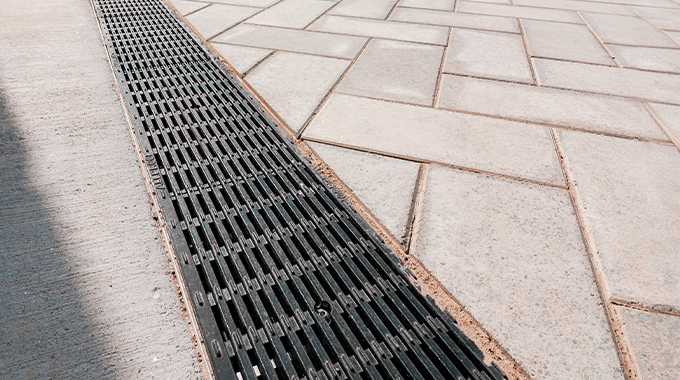

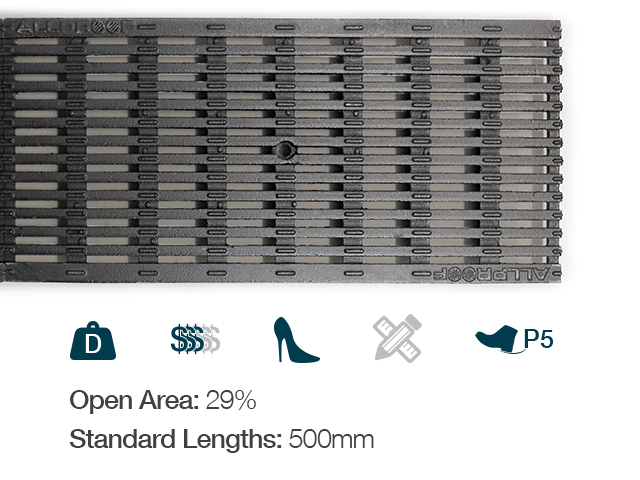

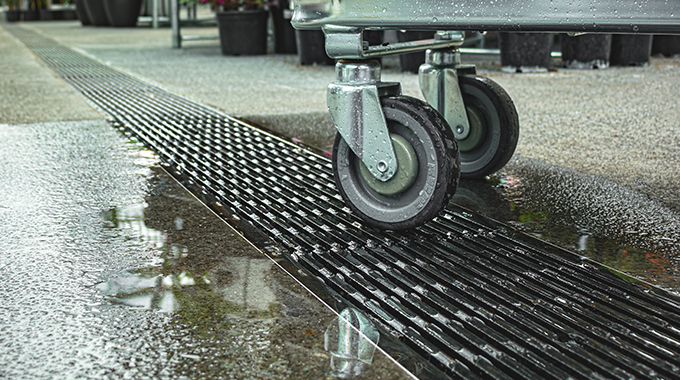

    • Heelproof cast iron grates for heavy vehicle traffic
    • Lightweight 1 m clip-together sections for quick installation
    • Stainless steel or galvanised steel edge rails
    • Optional inline sump pit, end caps, joiners, and levelling system available

Allproof specification masterspec

100mm Depth - Commercial Channel 200mm Clear Opening

wdt_ID Code Description .pdf File CAD File
1 CC200x100HCI 200x100mm Channel and HCI Grate

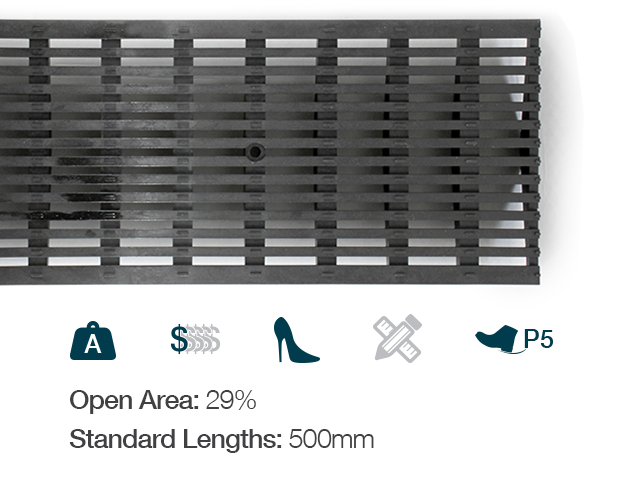

2 CC200x100GFP 200x100mm Channel and GFP Grate
3 CC200x100WW B 200x100mm Channel and WW Grate

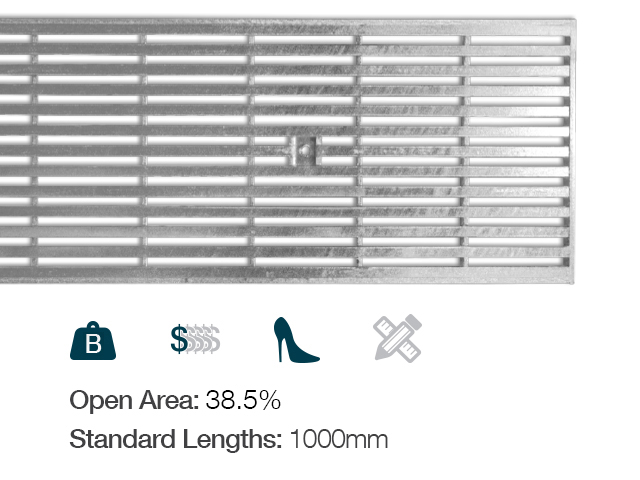

4 CC200x100GAL 200x100mm Channel and GALV Grate

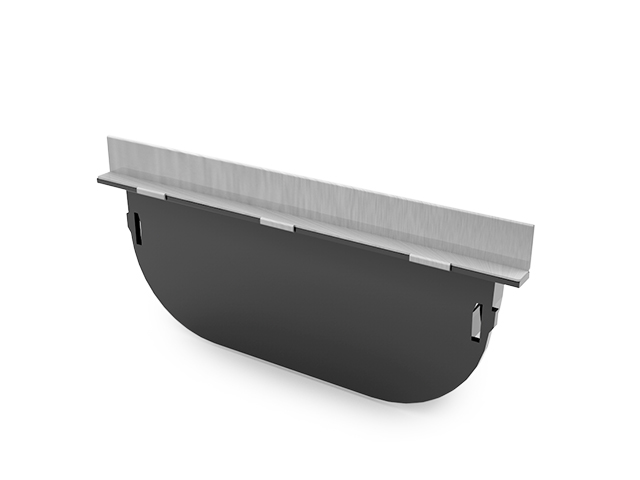

5 CC200x100EC 200x100mm Channel End Cap SS Edge
6 CC200x100ECG 200x100mm Channel End Cap GALV Edge

150mm Depth - Commercial Channel 200mm Clear Opening

wdt_ID Code Description .pdf File CAD File
1 CC200x150HCI 200x150mm Channel and HCI Grate
2 CC200x150GFP 200x150mm Channel and GFP Grate
3 CC200x150WW B 200x150mm Channel and WW Grate
4 CC200x150GAL 200x150mm Channel and GALV Grate

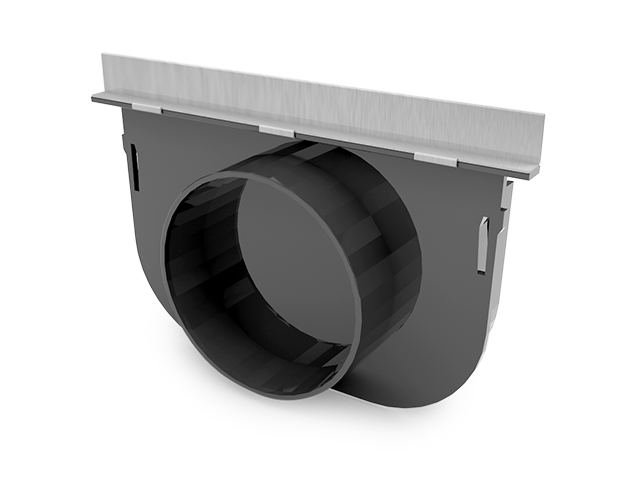

5 CC200x150EC 200x150mm Channel End Cap SS Edge
6 CC200x150ECG 200x150mm Channel End Cap GALV Edge

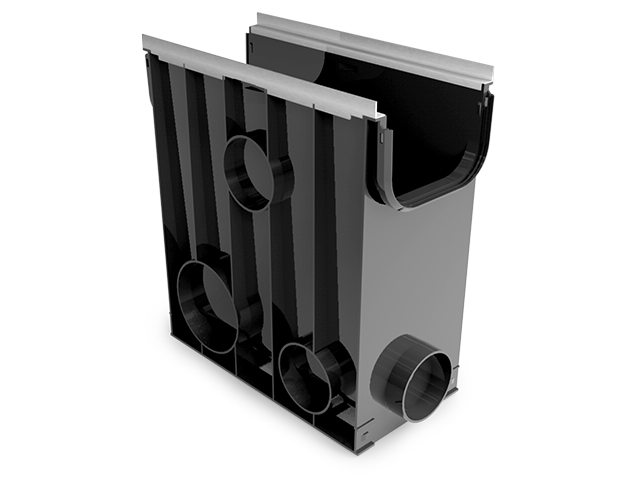

Inline Sump - Commercial Channel 200mm Clear Opening

wdt_ID Code Description .pdf File CAD File
1 CC200SUMPHCI CC200 Inline sump SS Edge HCI grate
2 CC200SUMPGFP CC200 Inline sump SS Edge GFP grate
3 CC200SUMPWW B CC200 Inline sump SS Edge WW grate
4 CC200SUMPGAL CC200 Inline Sump and GALV Grate

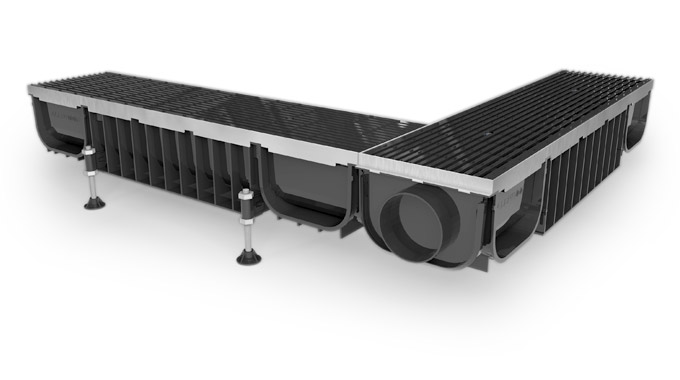

Levelling System - Commercial Channel 200mm Clear Opening

wdt_ID Code Description .pdf File CAD File
1 CLC01 Channel levelling clip
2 CLF01 Channel levelling foot

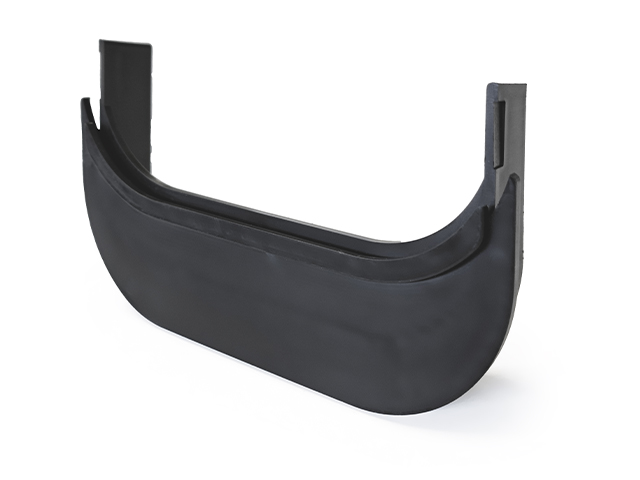

CC200 Joiner

wdt_ID Code Description .pdf File CAD File
1 CC200X150-100J CC200x100 to CC200x150 Joiner

Commercial Channel Volume Capacity (L)


Install Drawings


Install Guide


Material Information Sheets

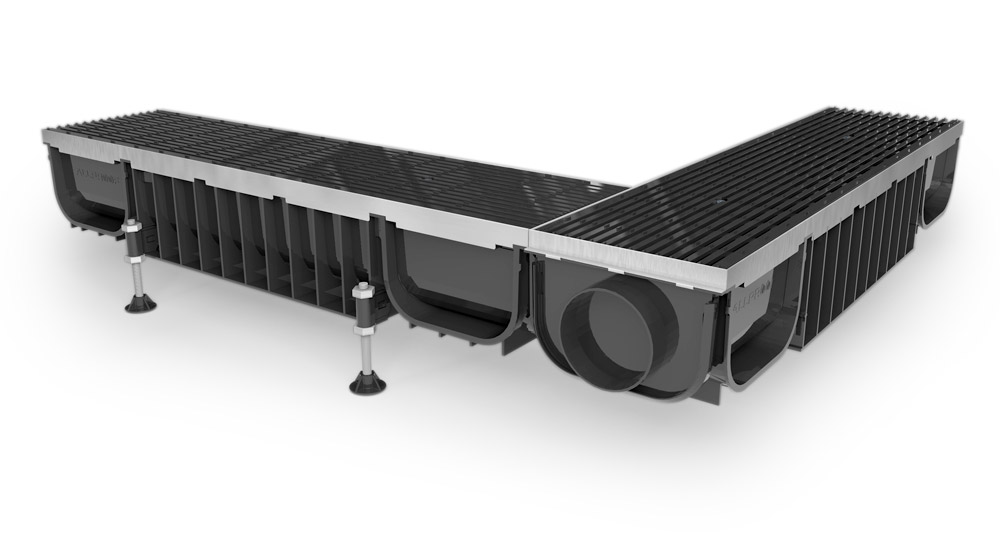

Clip Together Connections
