Commercial Channel – 300 × 150 mm Clear Opening Strip Drain

Commercial Channel – 300 × 150 mm Clear Opening Strip Drain

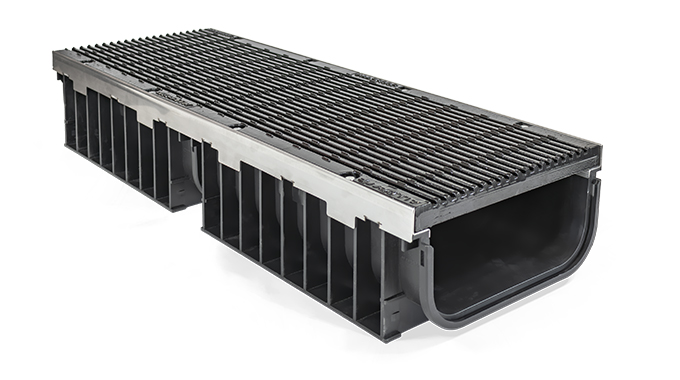

The 300 mm clear opening Commercial Channel provides an environmentally conscious solution for high-capacity surface water drainage. Made from 100% recycled polypropylene using renewable solar energy, this lightweight trench drain is easy to assemble and install while delivering exceptional durability and strength when encased in concrete.

Its 150 mm depth provides excellent hydraulic performance while minimising excavation, making it ideal for large-scale commercial drainage applications. The clip-and-connect joining system improves channel alignment and simplifies installation, while stainless or galvanised edge rails ensure a robust and professional finish.

Features

    • 300 mm clear opening with 150 mm depth
    • Manufactured from 100% recycled polypropylene using renewable solar energy
    • Lightweight and easy to assemble, reducing installation time and costs
    • Clip-and-connect joining system for precise alignment
    • Designed to gain strength from surrounding concrete
    • Stainless steel or galvanised edge rails for a clean, durable edge
    • Range of grate options available to suit diverse applications

Allproof specification masterspec

The grates present a range of features engineered to elevate the system’s performance. Each grate variant is designed to be heelproof for pedestrian safety, and to accommodate mobility aids and bicycle tyres, accounting for directional travel. Fixings are used to secure the grates, preventing potential damage from vehicular movement and unauthorised access.

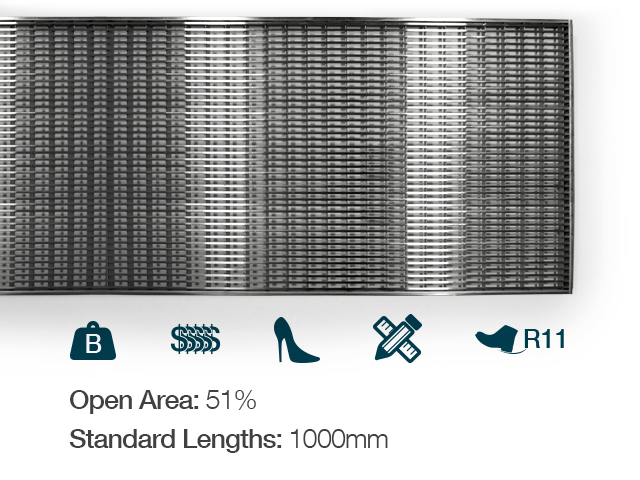

The Wedge Wire (WW) grate is fabricated from 316-grade stainless steel, enhancing its resistance to corrosion, particularly in marine environments. It is classified as load class B when tested in accordance with AS3996 standards for light vehicles and has undergone independent slip resistance testing (AS4586), achieving an R11 classification.

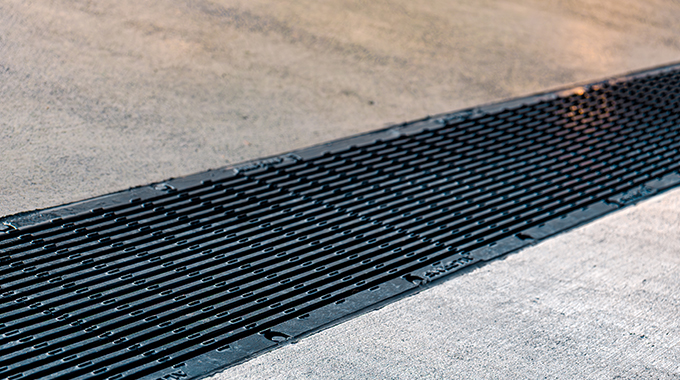

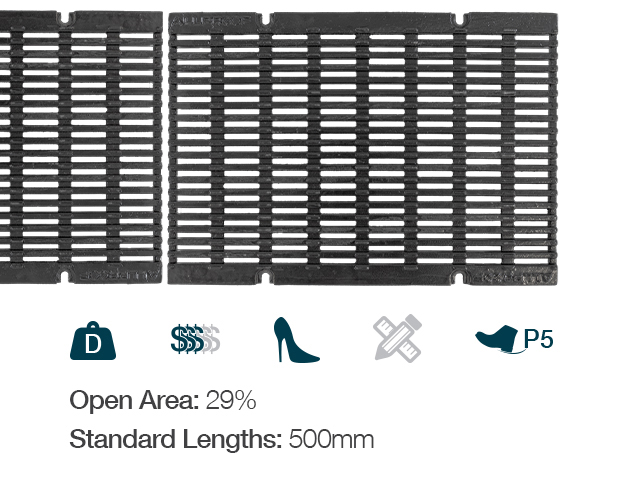

The Heelproof Cast Iron (HCI) grate is rated as load class D, suitable for accommodating commercial vehicle traffic, and holds a slip resistance certification of P5.

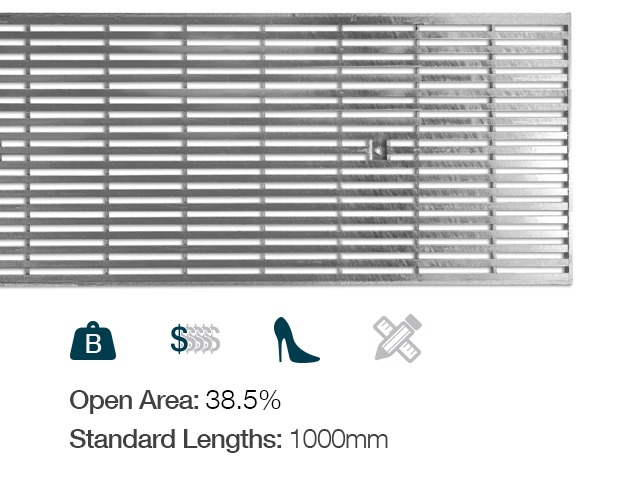

For an economic solution, the Galvanised Steel (GAL) option is available. It maintains a load class rating of B and offers a large open area, contributing to its excellent hydraulic performance.



150mm Depth - Commercial Channel 300mm Clear Opening

Commercial Channel Volume Capacity (L)
