Domestic drainage channel – driveway strip drain

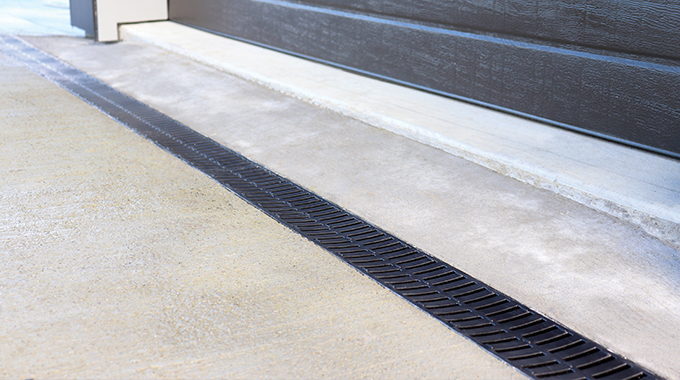

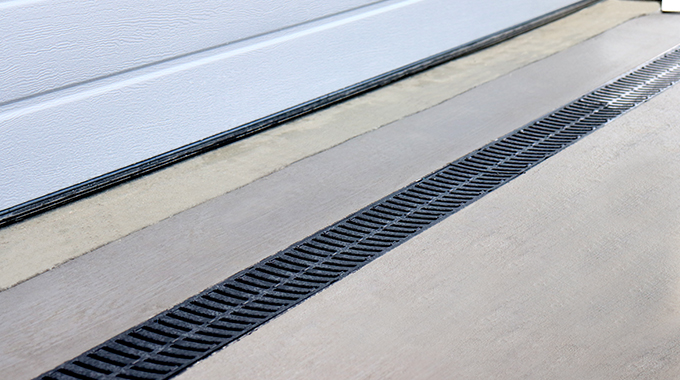

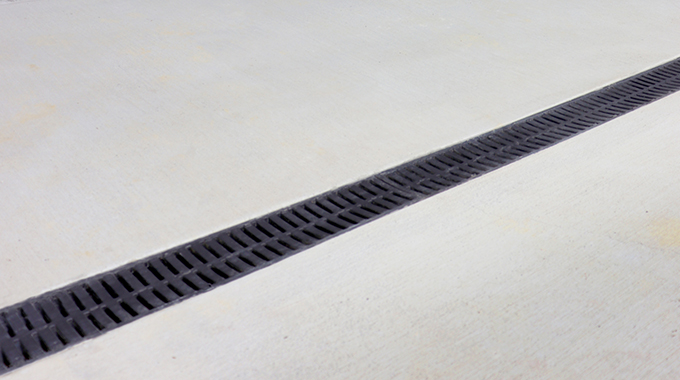

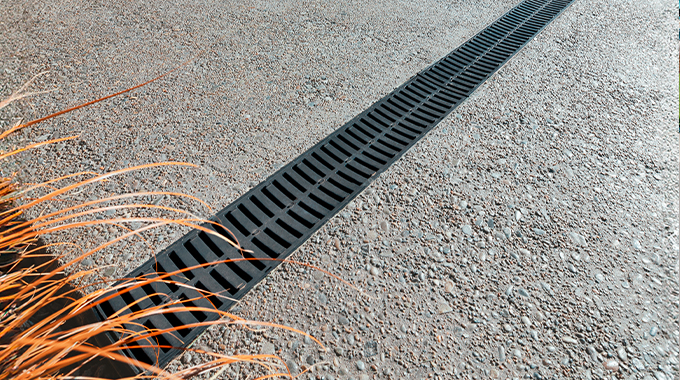

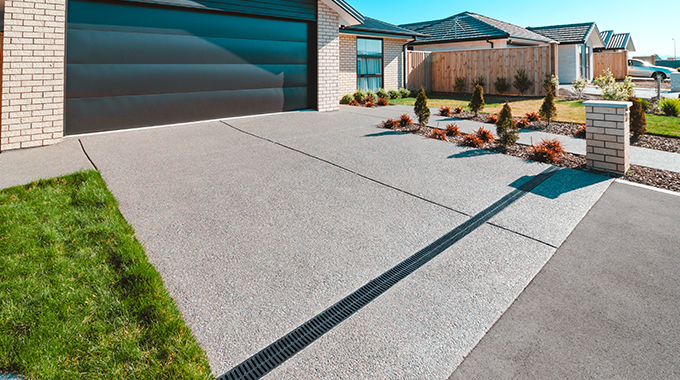

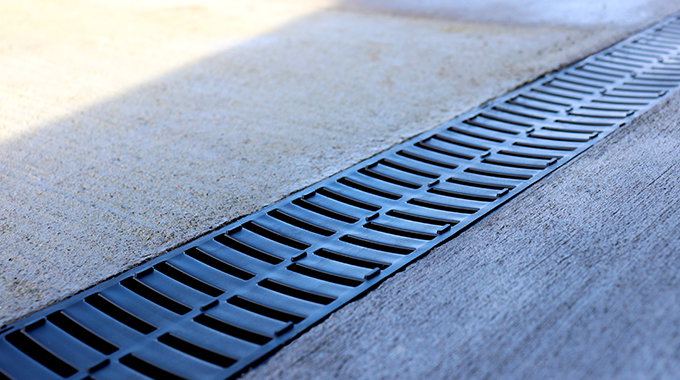

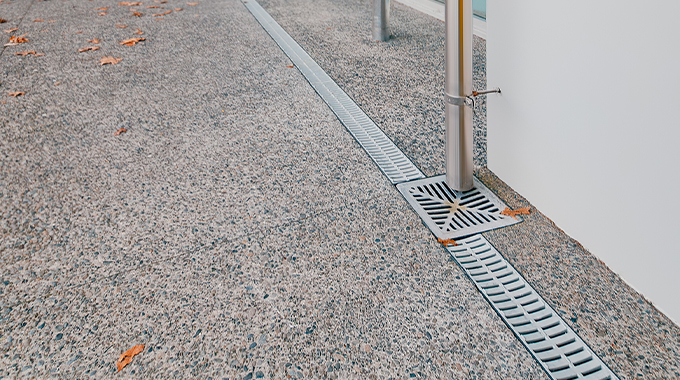

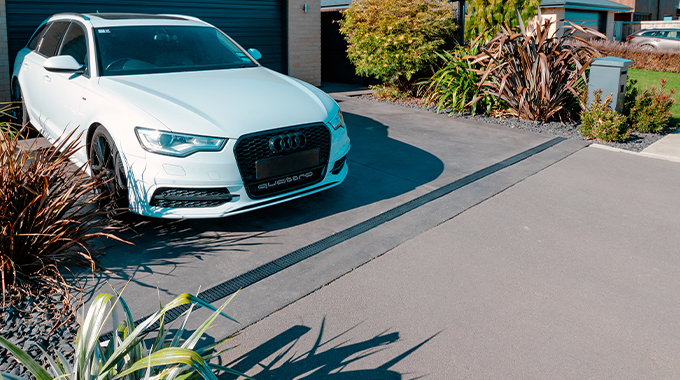

The Domestic Channel by Allproof is a strip drain system made for residential use. It works well as a driveway drain, around property perimeters, pavements, patios, gardens, and retaining walls. The DC trench drain is compatible with various surfaces like pavers, tiles, concrete, and tarmac. It collects stormwater from outside spaces and directs it to a sediment collection point before transferring it to the local authorities’ stormwater system.

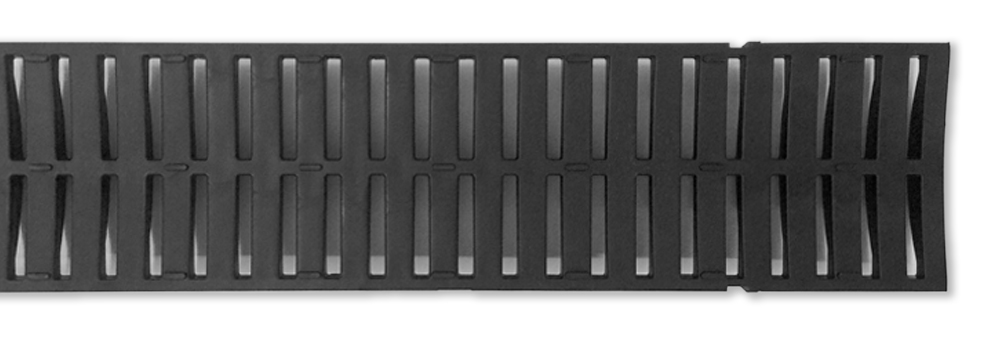

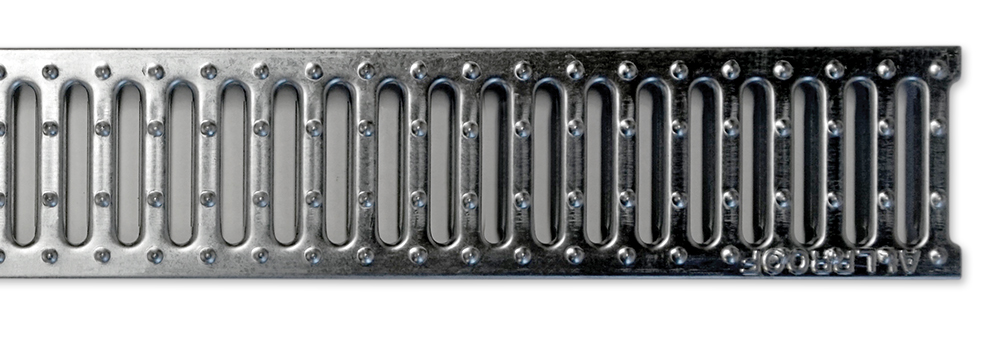

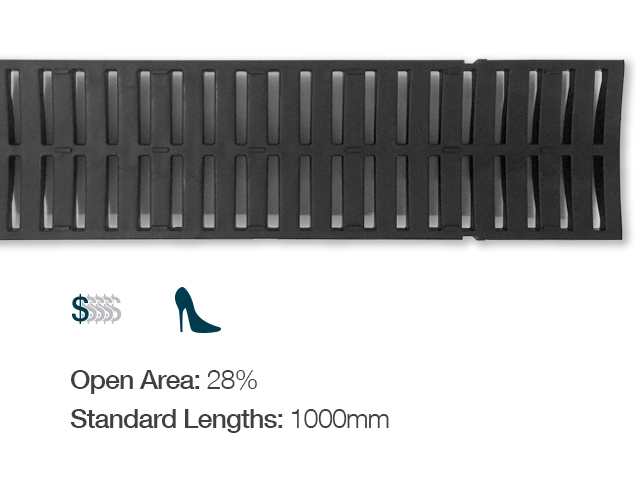

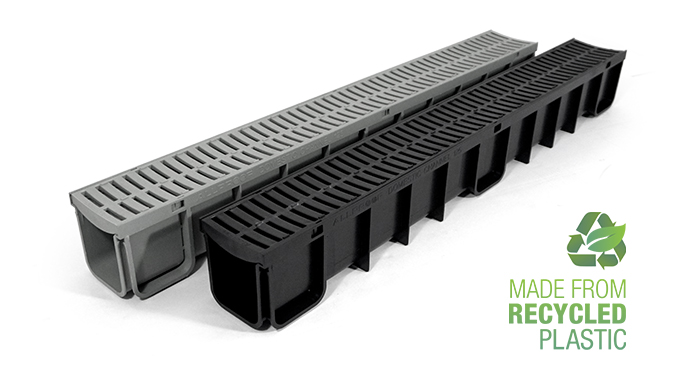

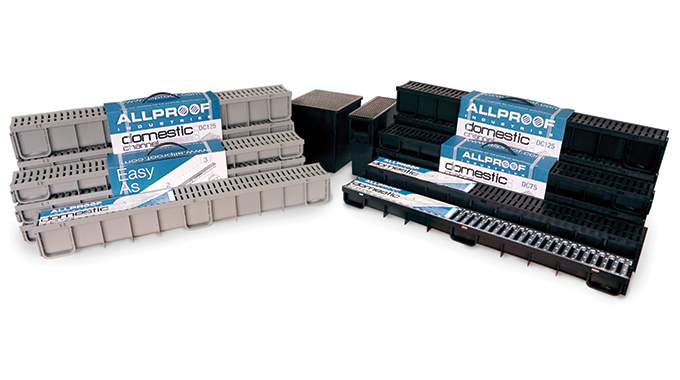

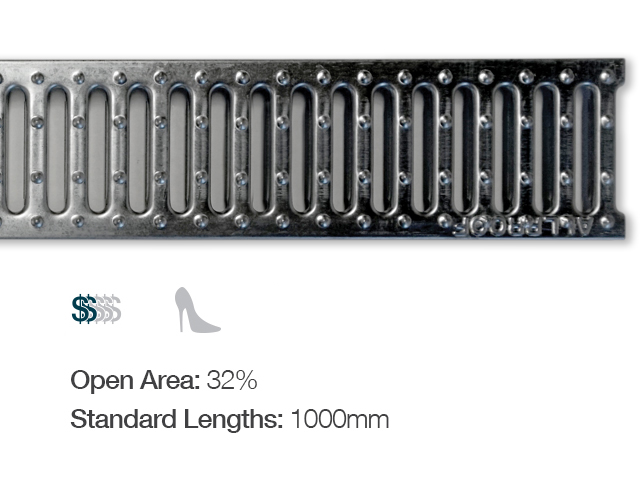

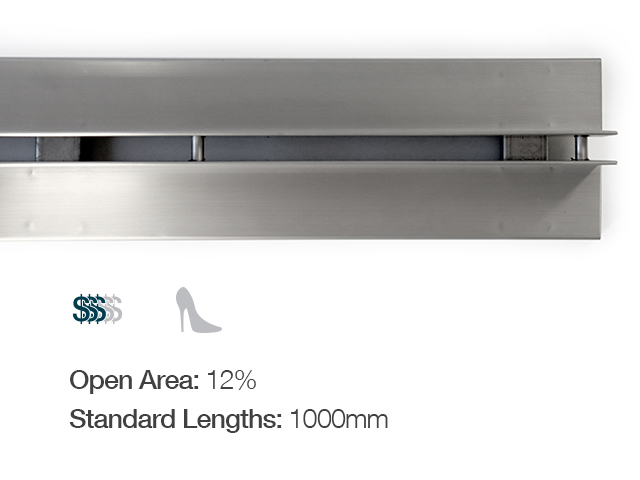

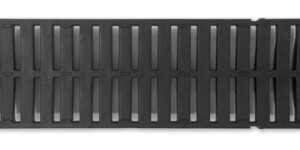

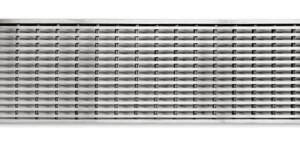

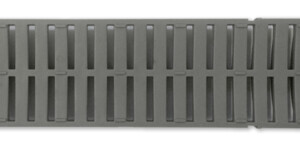

The Domestic Channel is available in two depths of 75mm and 125mm, both of which are 110mm wide. It comes in 1m lengths or as a convenient 3-pack that interlocks without needing additional fittings. The system can be completed by fitting an inline sump at the end of a run. The black domestic channels and grates are made from 100% recycled plastic using renewable solar energy. Allproof offers stainless steel and galvanized steel grates, including a slot drain grate; options for aesthetic appeal and functionality. This driveway drainage system is designed to be easy to install and maintain.

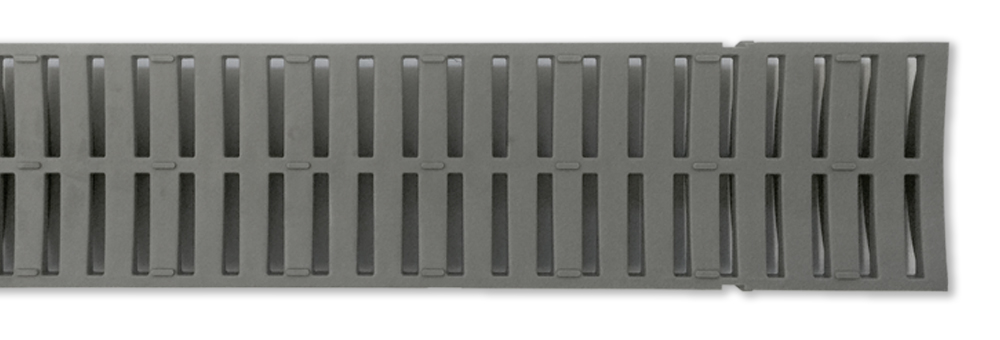

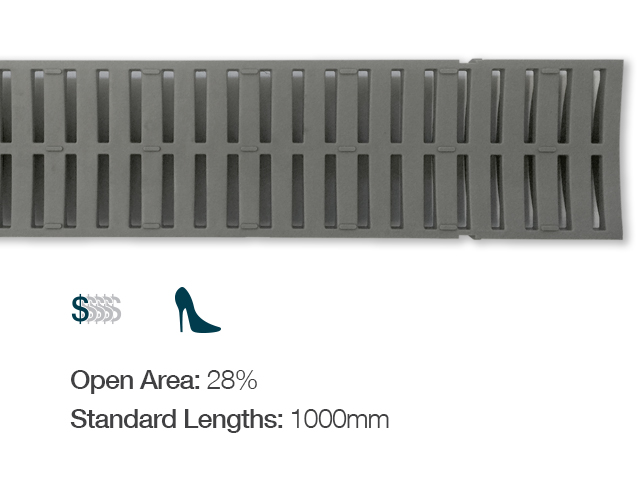

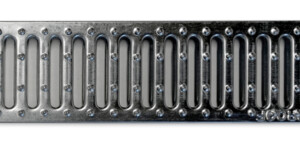

- Grate Options
- Product Options
- Finishes
- Codes & Drawings
- Technical Details

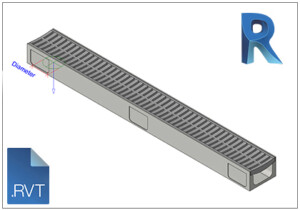

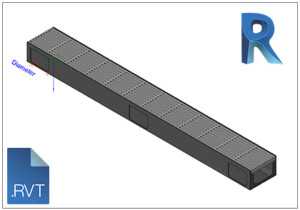

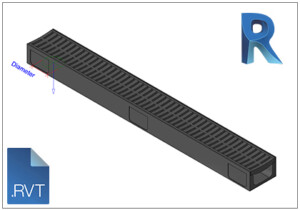

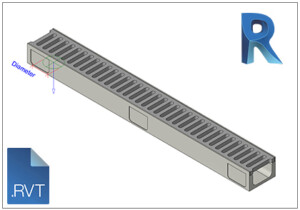

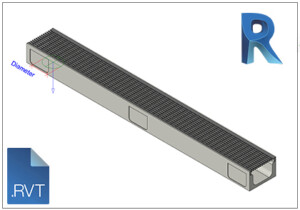

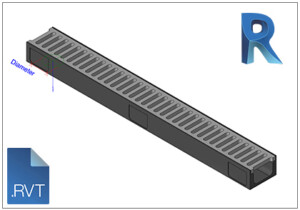

- BIM / Revit
- Videos & Images

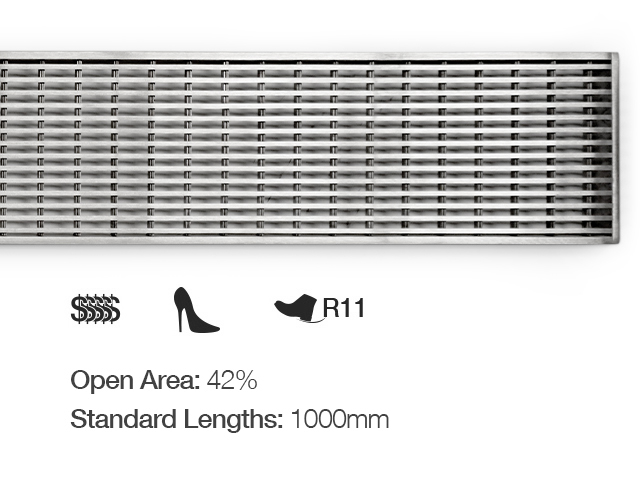

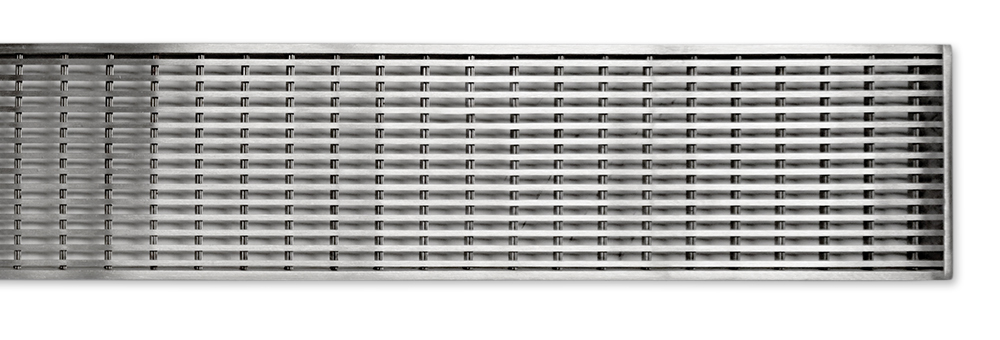

Electropolished Stainless available for marine environments. Standard stainless finish is supplied as default on Stainless Steel products unless otherwise advised.

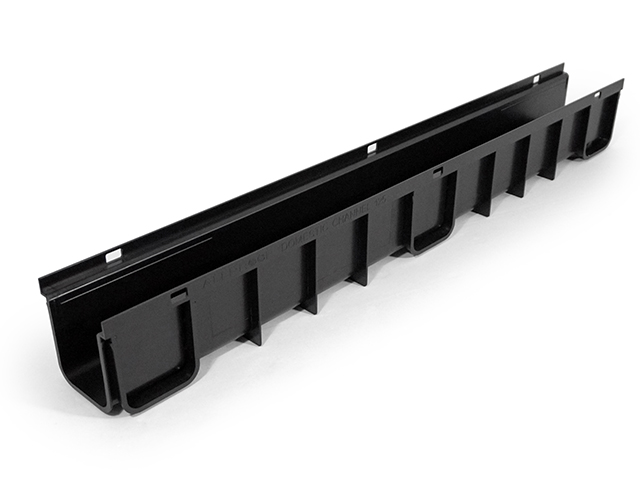

Domestic Channel - 125mm

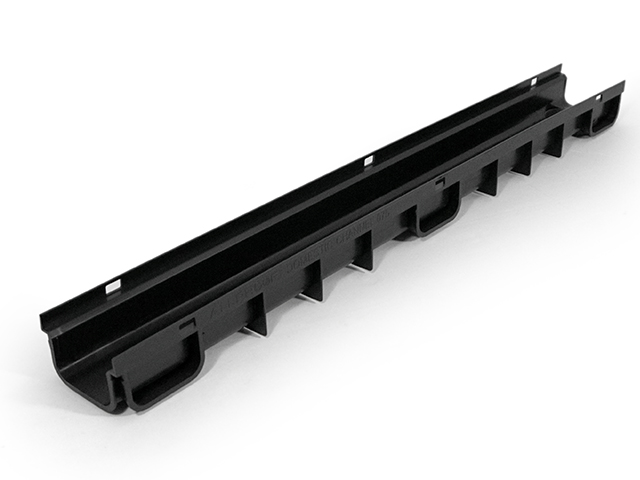

Domestic Channel - DC75
Domestic Channel - Joiners
Domestic Channel - End Caps

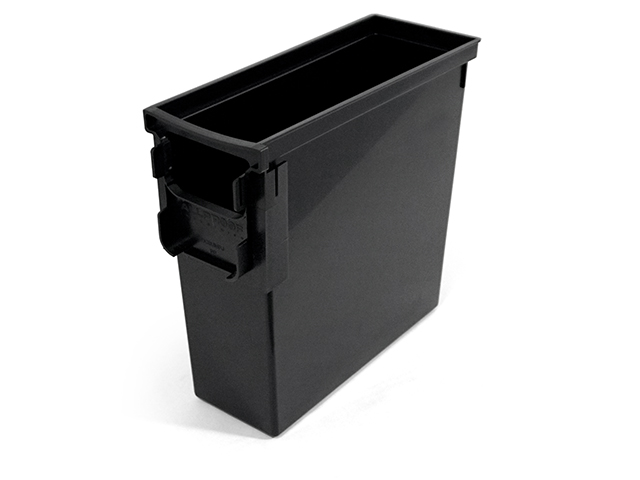

Domestic Channel - Inline Sumps
Material Information

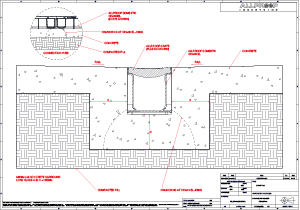

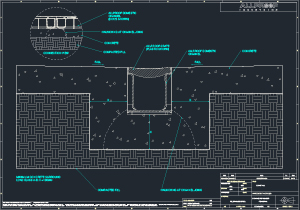

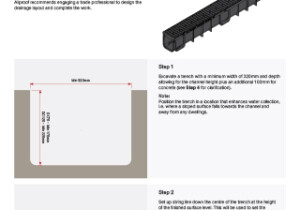

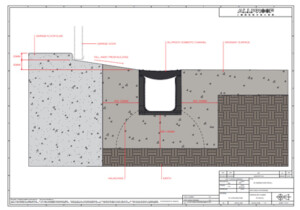

Install Details
DC Volume Capacity (L)
wdt_ID | Code | Description | Total Litre Capacity |
---|---|---|---|
10 | DC125 | Domestic Channel & Grate 125mm x 1m | 8.22L |
13 | DC75 | Domestic Channel & Grate 75mm x 1m | 4L |
14 | DCSUMP | Domestic Channel Inline Sump & Grate | 6.9L |
