Fire Plates

Fire Plates

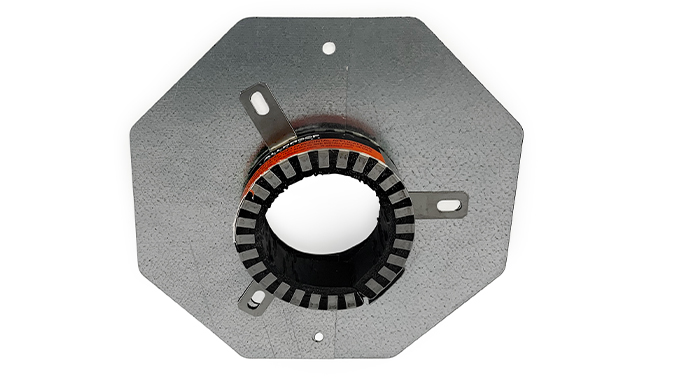

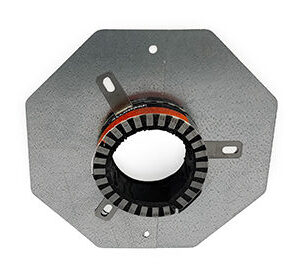

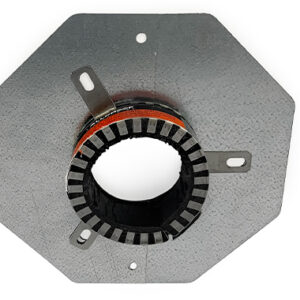

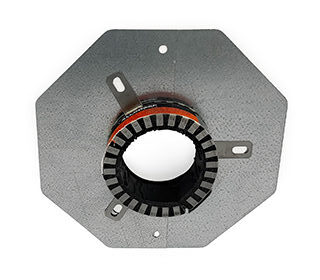

Allproof Fire Plates are designed to cover voids created by cast-in rocket fittings beneath flat slab substrates at 50mm or 100mm floor waste gully (FWG) locations. This two-piece plate system secures to the slab and provides a stable mounting surface for an Allproof Fire Collar (sold separately). The Fire Plate’s flexible design allows adjustment to suit surrounding services, ensuring an efficient and compliant passive fire protection solution.

Features:

    • Two-piece plate design for void coverage under flat slab FWG locations
    • Compatible with Cast-in Rocket fittings (50mm & 100mm FWG)
    • Fixed to slab to secure and stabilise installation
    • Cut-out tabs for direct Fire Collar mounting (ALLFC sold separately)
    • Adjustable positioning for surrounding services

Note: ALLFC Fire Collar supplied separately.

Branz Appraised Icon  Allproof specification masterspec

 Subscribe for Product Updates

Allproof passive fire products have been tested on plumbing and electrical service penetrations. To assist with product research and technical information our test literature has been presented in documents relevant to the service penetration that requires fire rating.

Fire Plate

Suitable For Fitting To:

    • Concrete floors

Features:

    • Totally unaffected by water
    • Retro or pre-service install fitting

Installation Instructions:

    1. Install floor waste pipework.
    2. Ensure the substrate around the Rocket fitting is flat and free from obstructions.
    3. Place plates around the uPVC pipe so it is centred and the plate lap fixing holes are aligned. Position the plate so fixing points avoid obstructions when drilling; mark and set the plate aside.
    4. Drill fixing holes with a masonry drill bit into the concrete slab to a depth that accommodates a 6 x 40mm wedge anchor.
    5. Position plates and drive anchors into the concrete through the plate lap fixing holes to secure in place.
    6. Open the fire collar and position it around the pipe.
    7. Slide the tab through the slot in the fire collar and fold it back 180° to secure.
    8. Secure the fire collar using a 6 x 40mm wedge anchor as per testing. Do not use fixings that rely on plastic or nylon components for grip.
    9. Install only from the underside on floor penetrations.
    10. Allproof recommends any thermal or acoustic lagging maintains a 50mm separation from the fire collar.

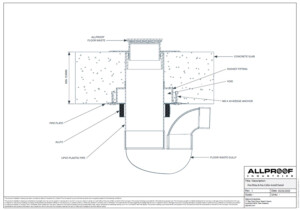

Install Details
