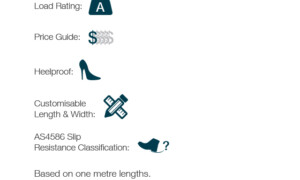

Key - Grate Options

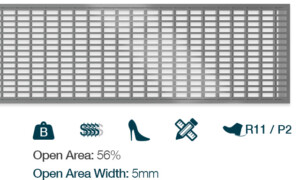

Wedge Wire (WW)

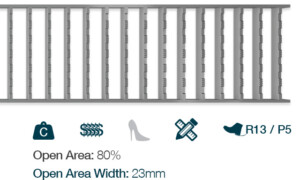

Slip Resistant Ladder (SRL)

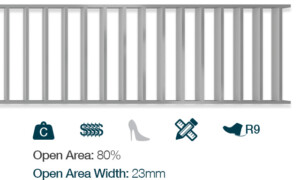

Ladder (LAD)

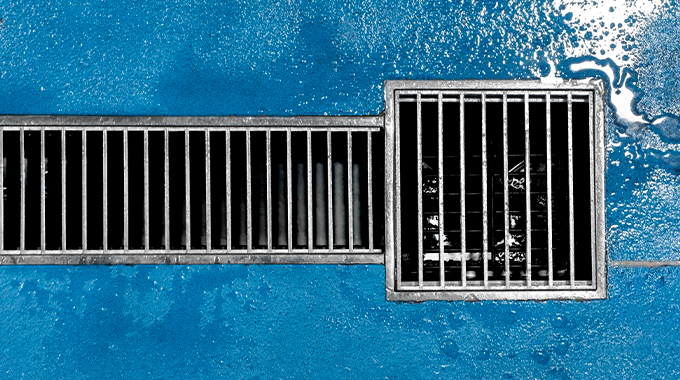

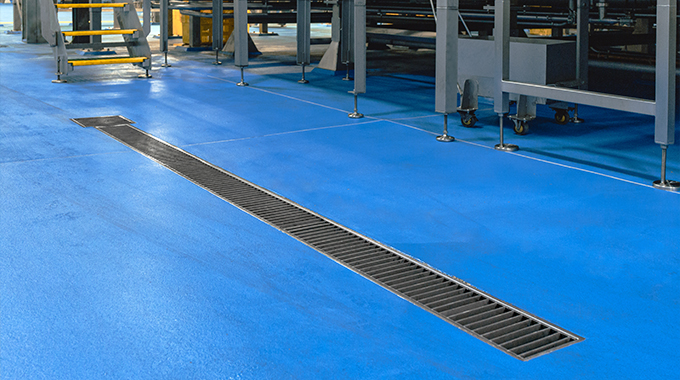

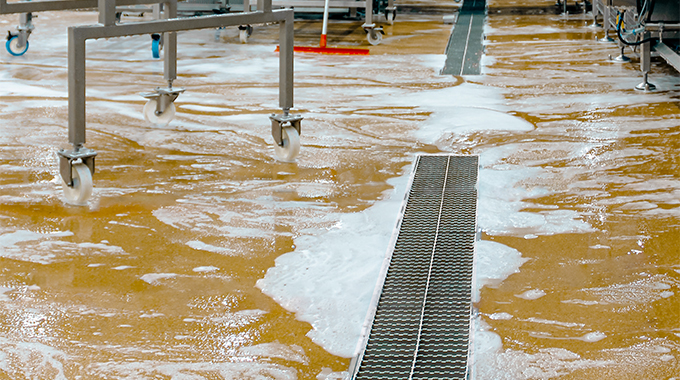

Stainless Modular Strip Drain System

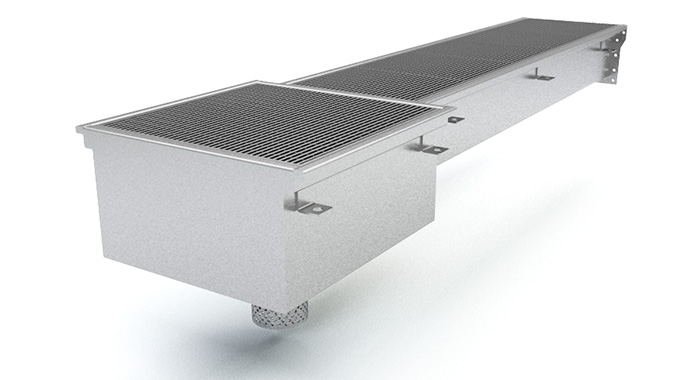

The MC Series is a modular channel drain with sump available in standard sizes creating a system that’s easy to assemble to the needs of specific projects.
With a range of channels available providing various options for width, length and depth this system provides excellent flexibility creating layouts for large complex projects.

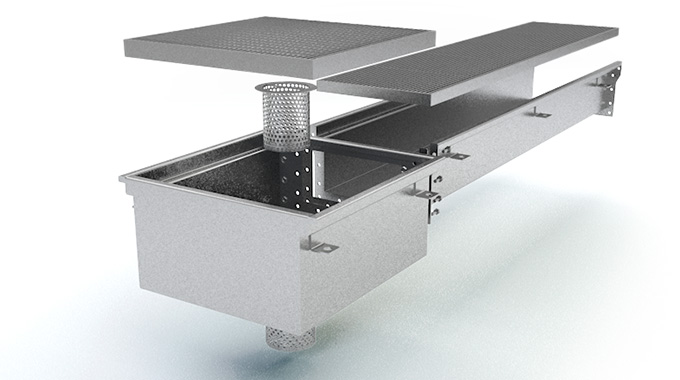

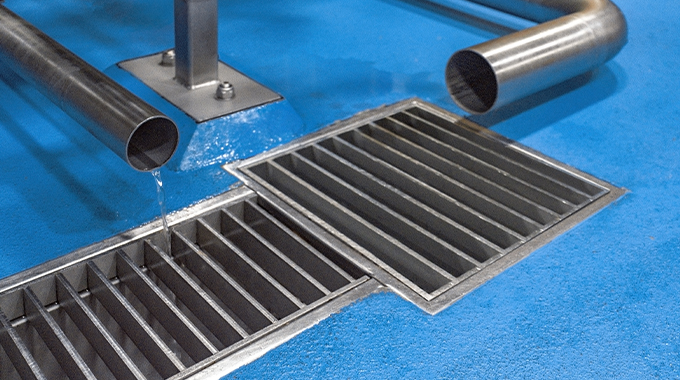

The channels come in 1m or 2m lengths allowing for transport and easy handling on site during install. Sumps available as an end terminal or as a continuous junction for channels. The use of joiners allow depths to increase towards the sumps for greater hydraulic performance.
By selecting the 2m length channels the system accommodates runs of up to 6 meters terminating at a sump. A mirror image can then be run in the opposite direction, resulting in 10 meters between sumps. Overall system length is unlimited when using the straight through sump junction.
By selecting a system constructed from standardised components it becomes easy to specify, order and install.

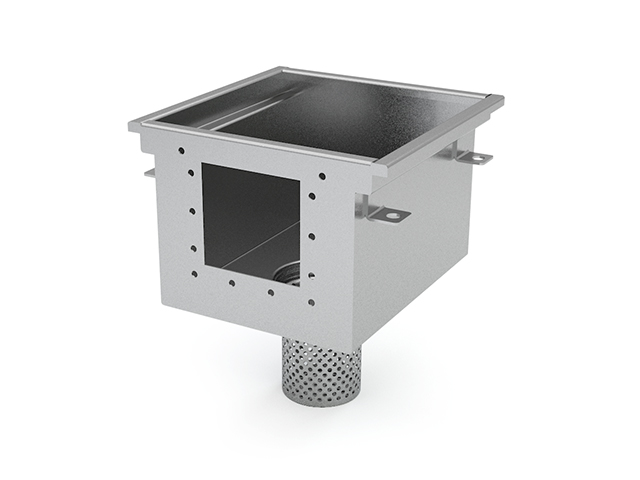

Sump 200CO

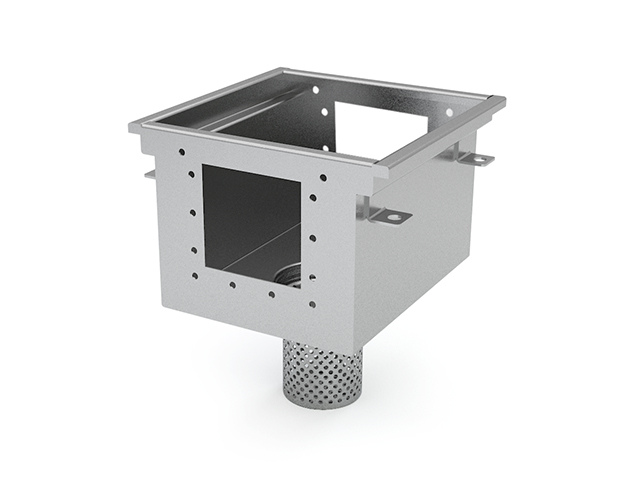

Sump 200CO continuous

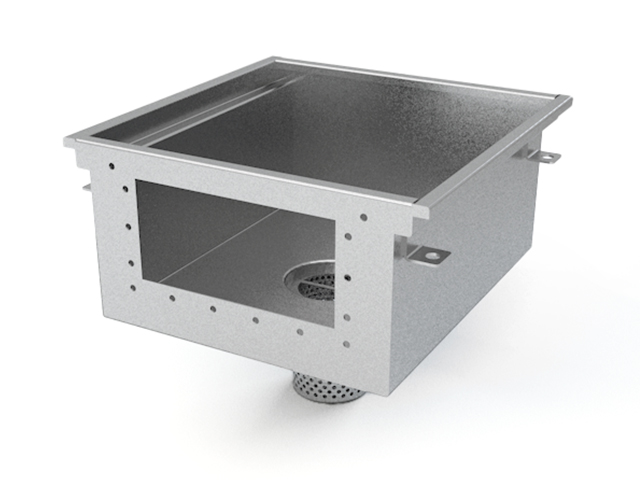

Sump 300CO

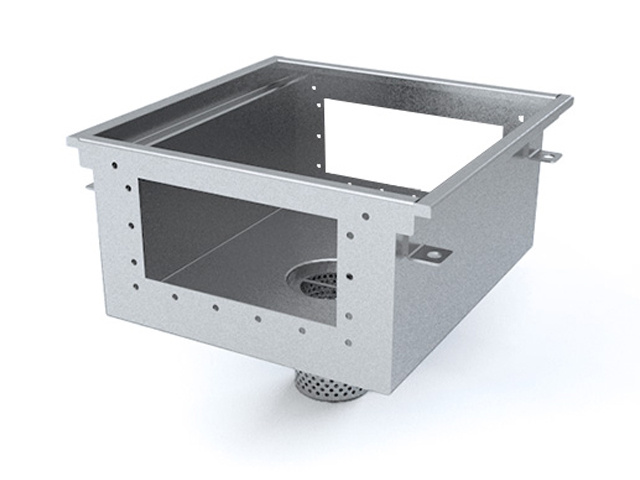

Sump 300CO continuous

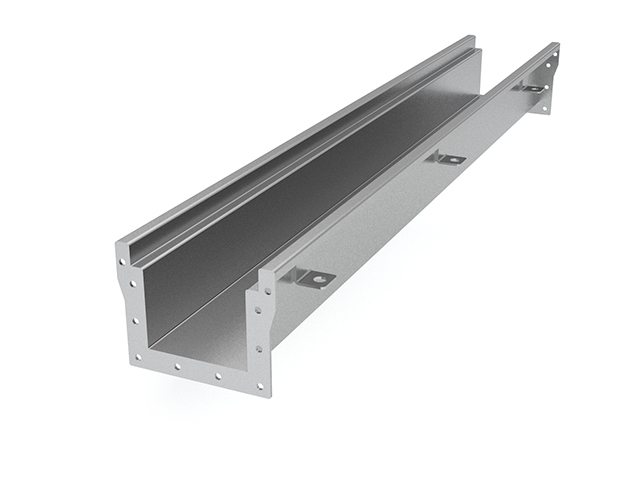

100CO x 100mm Depth
100CO Joiner

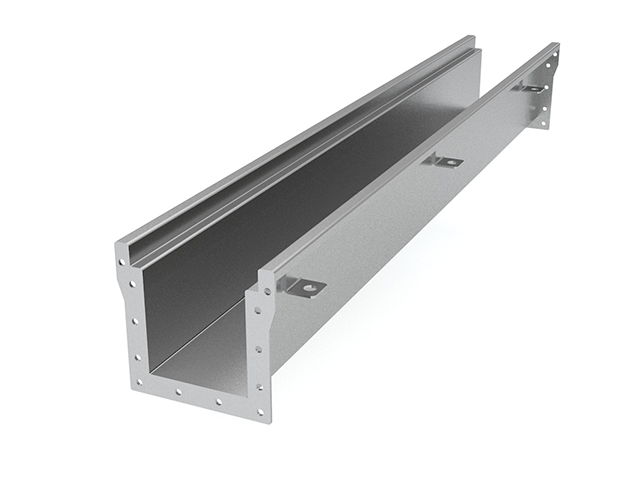

100CO x 125mm Depth

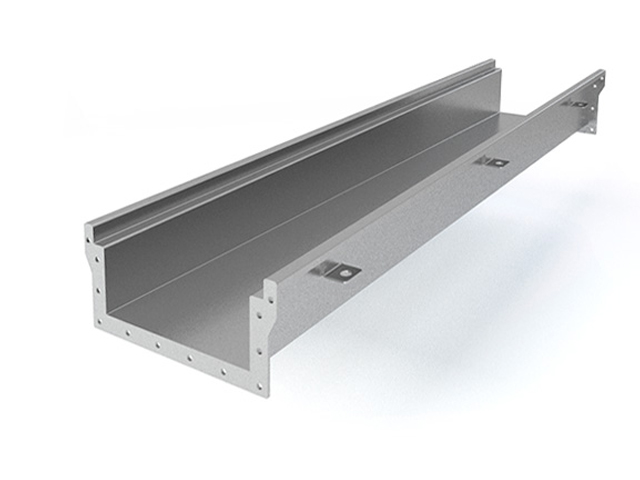

200CO x 100mm Depth

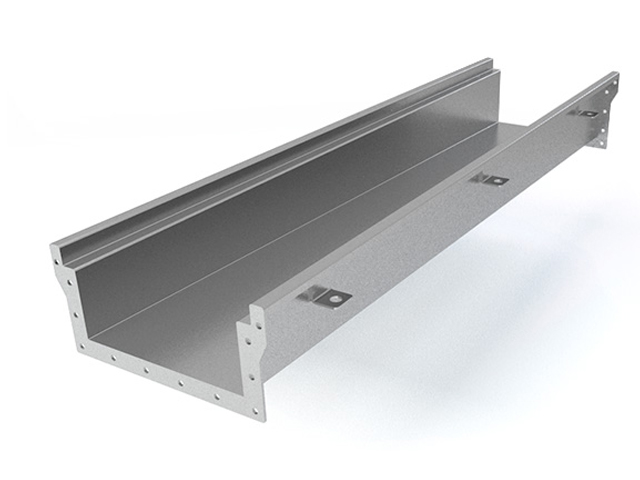

200CO Joiner

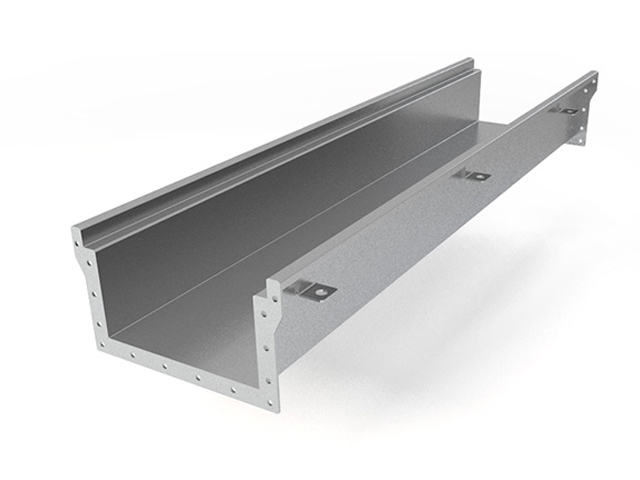

200CO x 125mm Depth

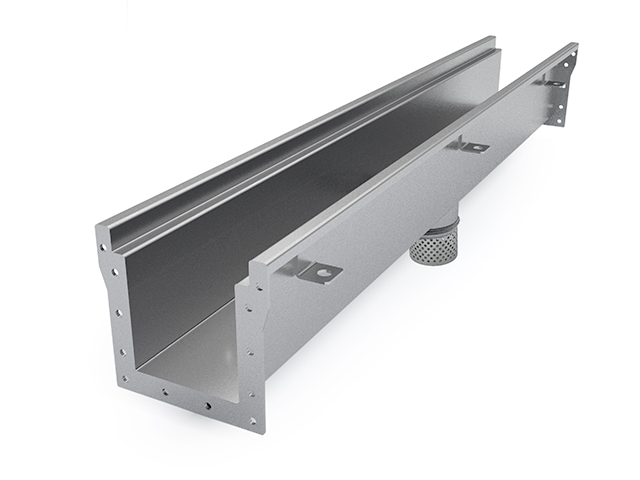

100CO Outlet Channel
200CO Outlet Channel

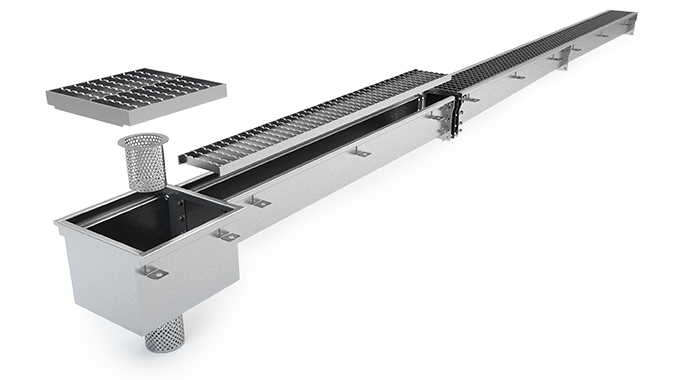

Product Assemblies:

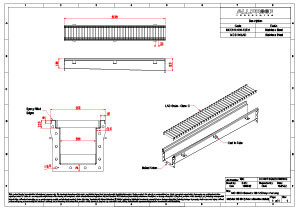

MC Series .pdf Files
MC Series .dwg Files
Allproof recommend early engagement for the specification of the MC Series, please contact us for product selection, lead times and installation advise.
MC100 Channel Grates
| wdt_ID | Code | Description | .pdf File | CAD File | Revit Files |
|---|---|---|---|---|---|
| 4 | MCG100WW | WW Grate to suit MCC100 Channel 1m | |||
| 5 | MCG100SRL | SRL Grate to suit MCC100 Channel 1m | |||
| 6 | MCG100LAD | LAD Grate to suit MCC100 Channel 1m |
MC200 Channel Grates
| wdt_ID | Code | Description | .pdf File | CAD File | Revit Files |
|---|---|---|---|---|---|
| 4 | MCG200WW | WW Grate to suit MCC200 Channel 1m | |||
| 5 | MCG200SRL | SRL Grate to suit MCC200 Channel 1m | |||
| 6 | MCG200LAD | LAD Grate to suit MCC200 Channel 1m |
MC200 Sump Grates
| wdt_ID | Code | Description | .pdf File | CAD File | Revit Files |
|---|---|---|---|---|---|
| 4 | MCSG200WW | WW Grate to suit MCS200 Sump | |||
| 5 | MCSG200SRL | SRL Grate to suit MCS200 Sump | |||
| 6 | MCSG200LAD | LAD Grate to suit MCS200 Sump |
MC300 Sump Grates
| wdt_ID | Code | Description | .pdf File | CAD File | Revit Files |
|---|---|---|---|---|---|
| 4 | MCSG300WW | WW Grate to suit MCS300 Sump | |||
| 5 | MCSG300SRL | SRL Grate to suit MCS300 Sump | |||
| 6 | MCSG300LAD | LAD Grate to suit MCS300 Sump |
MC100 Channels
| wdt_ID | Code | Description | .pdf File | CAD File | Revit Files |
|---|---|---|---|---|---|
| 4 | MCC100x100x1 | MC 100CO Channel x 100mm deep x 1m long | |||
| 5 | MCC100x125x1 | MC 100CO Channel x 125mm deep x 1m long | |||
| 6 | MCC100x100-125x1 | MC 100CO Channel x 100-125mm deep x 1m long | |||
| 7 | MCC100x100x2 | MC 100CO Channel x 100mm deep x 2m long | |||
| 8 | MCC100x125x2 | MC 100CO Channel x 125mm deep x 2m long | |||
| 9 | MCC100x100-125x2 | MC 100CO Channel x 100-125mm deep x 2m long | |||
| 10 | MCC100x125x1OUT | MC 100CO Channel x 125mm deep x 1m long with centre outlet |
MC200 Channels
| wdt_ID | Code | Description | .pdf File | CAD File | Revit Files |
|---|---|---|---|---|---|
| 4 | MCC200x100x1 | MC 200CO Channel x 100mm deep x 1m long | |||
| 5 | MCC200x125x1 | MC 200CO Channel x 125mm deep x 1m long | |||
| 6 | MCC200x100-125x1 | MC 200CO Channel x 100-125mm deep x 1m long | |||
| 7 | MCC200x100x2 | MC 200CO Channel x 100mm deep x 2m long | |||
| 8 | MCC200x125x2 | MC 200CO Channel x 125mm deep x 2m long | |||
| 9 | MCC200x100-125x2 | MC 200CO Channel x 100-125mm deep x 2m long | |||
| 10 | MCC200x125x1OUT | MC 200CO Channel x 125mm deep x 1m long with centre outlet |
MC200 Sumps
| wdt_ID | Code | Description | .pdf File | CAD File | Revit Files |
|---|---|---|---|---|---|
| 4 | MCS200E | MC 200CO Sump End to suit MCC100 Channels | |||
| 5 | MCS200C | MC 200CO Sump Continuous to suit MCC100 Channels |
MC300 Sumps
| wdt_ID | Code | Description | .pdf File | CAD File | Revit Files |
|---|---|---|---|---|---|
| 4 | MCS300E | MC 300CO Sump End to suit MCC100 Channels | |||
| 5 | MCS300C | MC 300CO Sump Continuous to suit MCC100 Channels |
MC End Caps
| wdt_ID | Code | Description | .pdf File | CAD File | Revit Files |
|---|---|---|---|---|---|
| 4 | MCC100x100EC | MC 100CO Channel 100mm deep End Cap | |||
| 5 | MCC100x125EC | MC 100CO Channel 125mm deep End Cap | |||
| 6 | MCC200x100EC | MC 200CO Channel 100mm deep End Cap | |||
| 7 | MCC200x125EC | MC 200CO Channel 125mm deep End Cap |
MC Gaskets & Fixings
| wdt_ID | Code | Description | .pdf File | CAD File | Revit Files |
|---|---|---|---|---|---|
| 4 | MCC100x100G | MC 100CO Channel 100mm deep sealing gasket | |||
| 5 | MCC100x125G | MC 100CO Channel 125mm deep sealing gasket | |||
| 6 | MCC200x100G | MC 200CO Channel 100mm deep sealing gasket | |||
| 7 | MCC200x125G | MC 200CO Channel 125mm deep sealing gasket | |||
| 8 | M6 NUT | M6 SS304 nut | |||
| 9 | BOLTS04 | M6x20 SS304hex head bolt |
Order Form
MC Order Form
