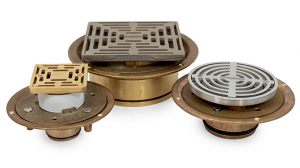

Podium Drains

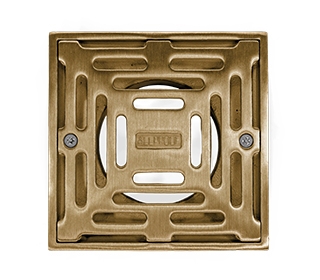

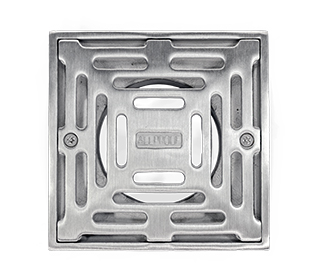

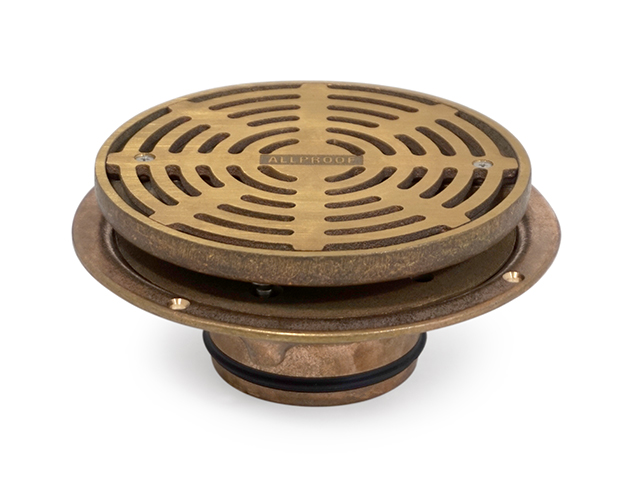

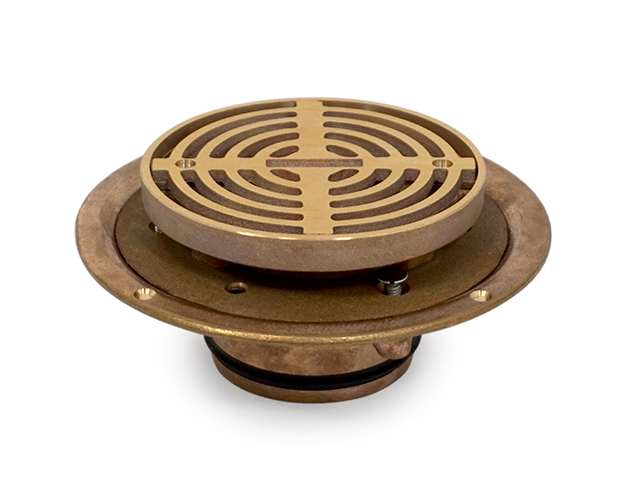

Durable cast construction including bronze body, bronze clamp ring and storm series grate

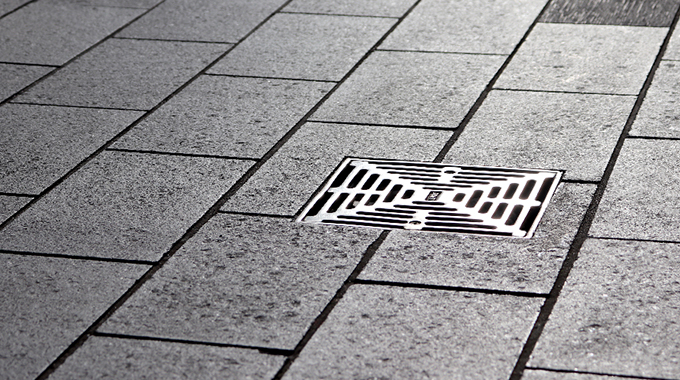

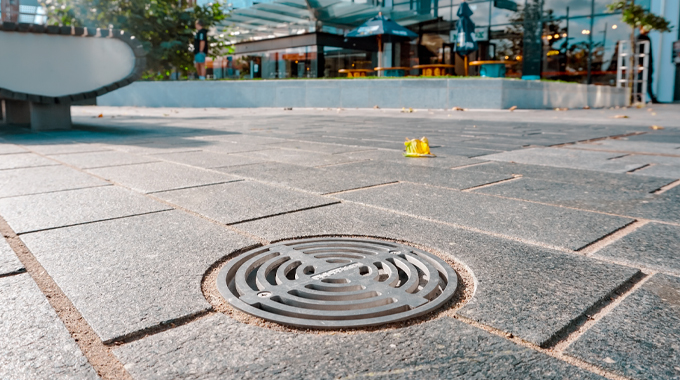

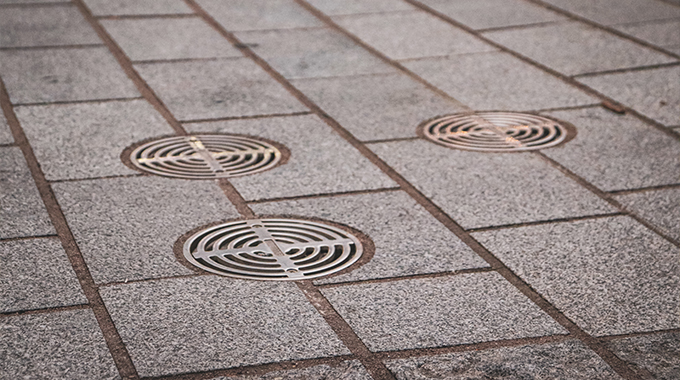

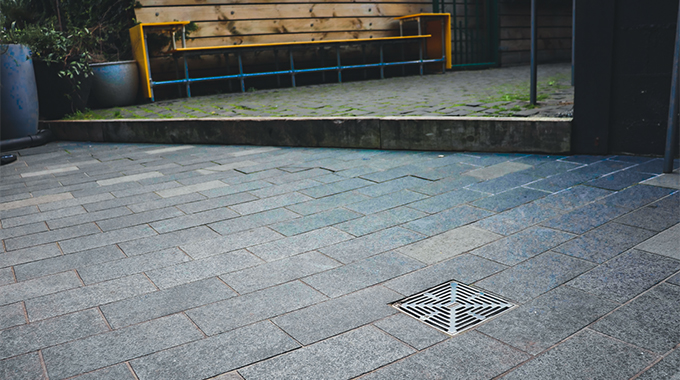

Ideal for commercial situations, podium areas, carparks, malls, decks, and balconies
Spigot fits inside 80mm, 100mm or 150mm pipe riser with o-ring seal
Clamp ring features drainage holes for weepage

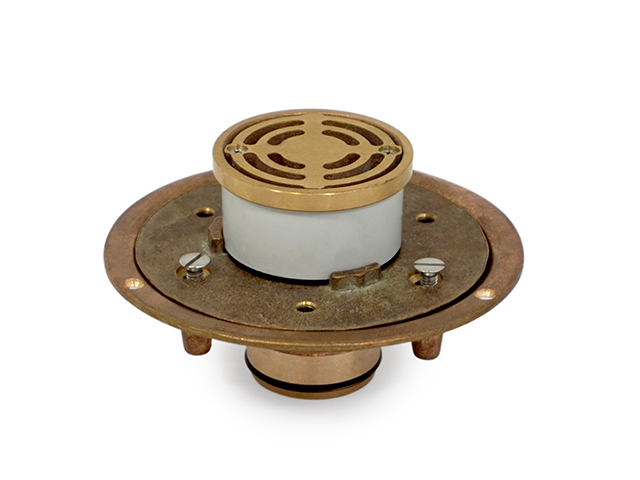

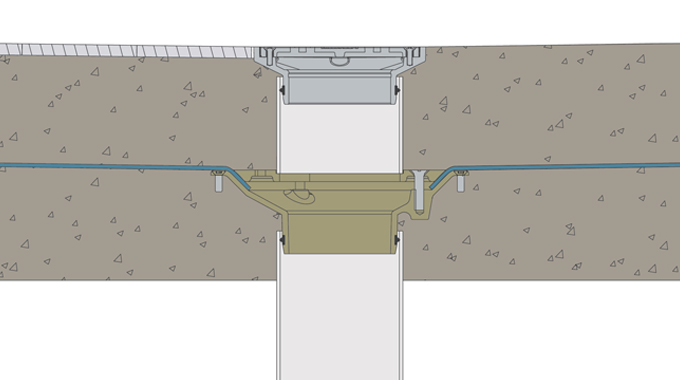

PVC pipe used for height adjustment between clamp ring and grate to suit topping level

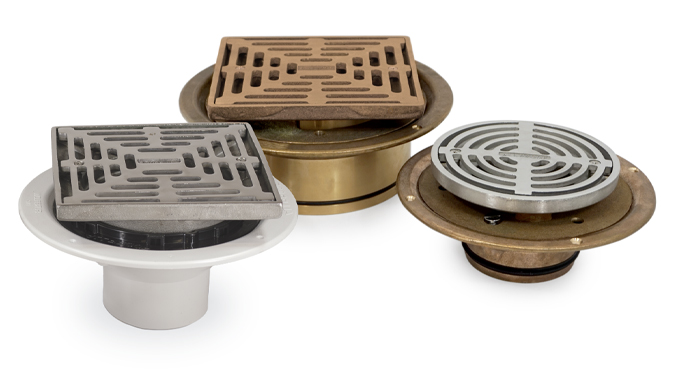

Standard Finish Options: Polished Stainless Steel and Bronze
Independently Flow Rate tested

Please note these finishes are only available on selected grate options, please see codes and drawings tab for a full list.

Podium Drains - Round

Code	Grate Size	Outlet Size	Finish	.pdf File
3	168.100.80PODRSS	100mm	80mm	Stainless Steel
4	168.100.80PODRB	100mm	80mm	Bronze
5	168.150.100PODRSS	150mm	100mm	Stainless Steel
6	168.150.100PODRB	150mm	100mm	Bronze
7	168.200.100PODRSS	200mm	100mm	Stainless Steel
8	168.200.100PODRB	200mm	100mm	Bronze
9	168.200.150PODRSS	200mm	150mm	Stainless Steel

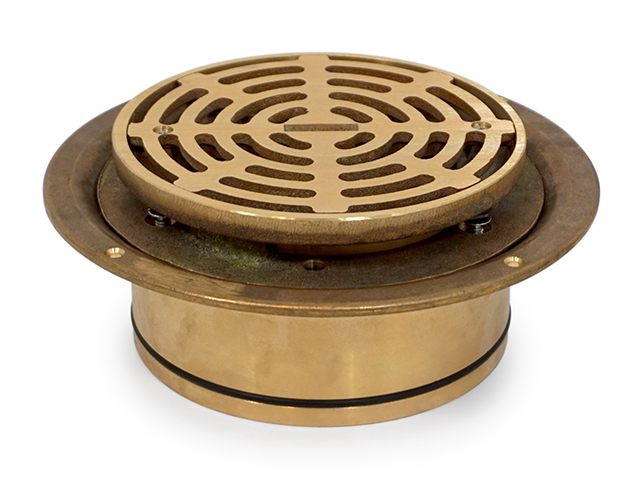

10	168.200.150PODRB	200mm	150mm	Bronze

Podium Drains - Square

Code	Grate Size	Outlet Size	Finish	.pdf File
1	168.100.80PODSSS	100mm	80mm	Stainless Steel
2	168.100.80PODSB	100mm	80mm	Bronze
3	168.150.100PODSSS	150mm	100mm	Stainless Steel
4	168.150.100PODSB	150mm	100mm	Bronze
5	168.200.100PODSSS	200mm	100mm	Stainless Steel
6	168.200.100PODSB	200mm	100mm	Bronze
7	168.200.150PODSSS	200mm	150mm	Stainless Steel
8	168.200.150PODSB	200mm	150mm	Bronze
