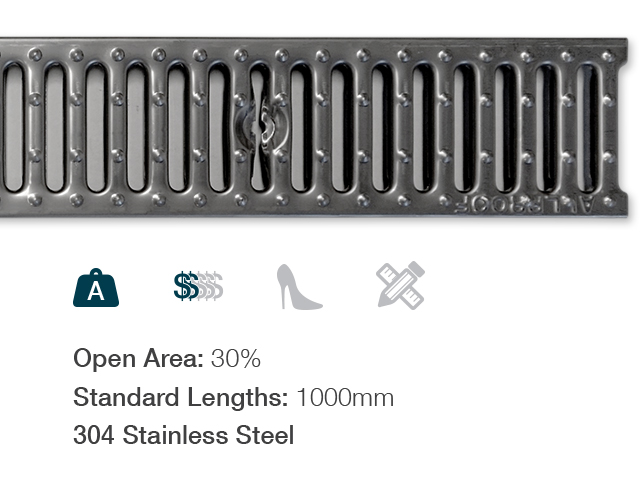

Pressed Stainless

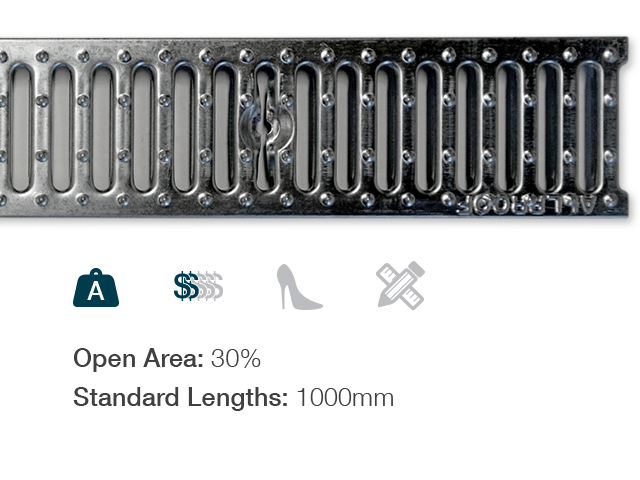

Pressed Galv
Ladder

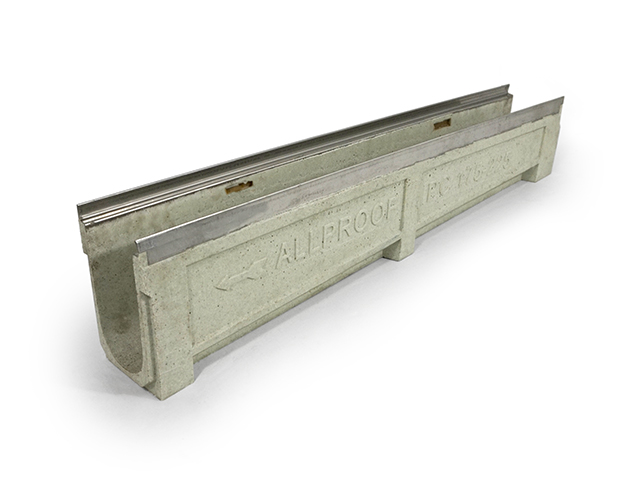

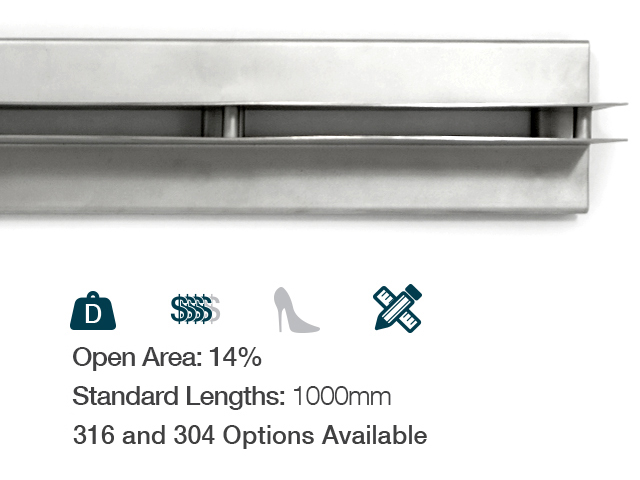

Stainless Centre Slot

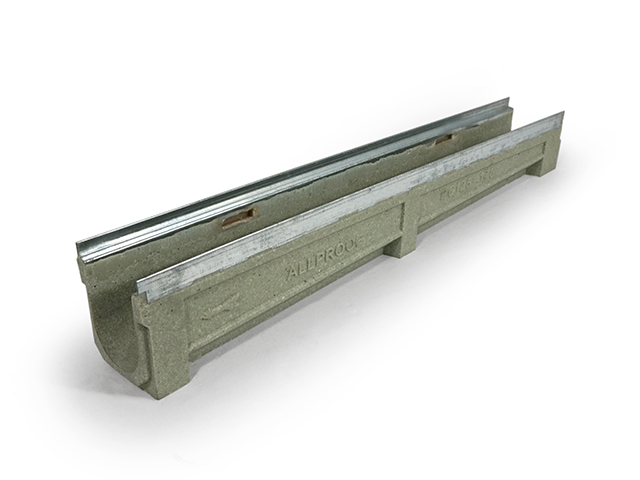

Galv Centre Slot
Stainless Offset Slot

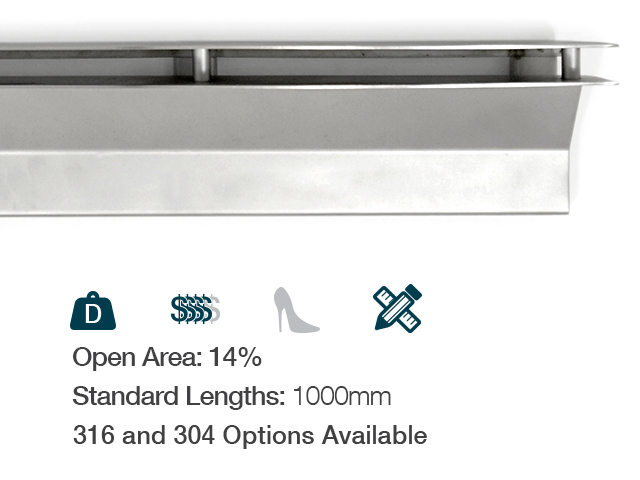

Galv Offset Slot
Polymer Concrete Slot
Polymer Concrete Slot

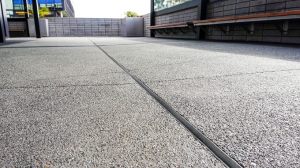

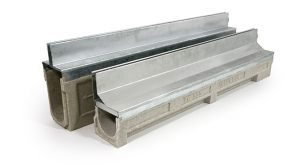

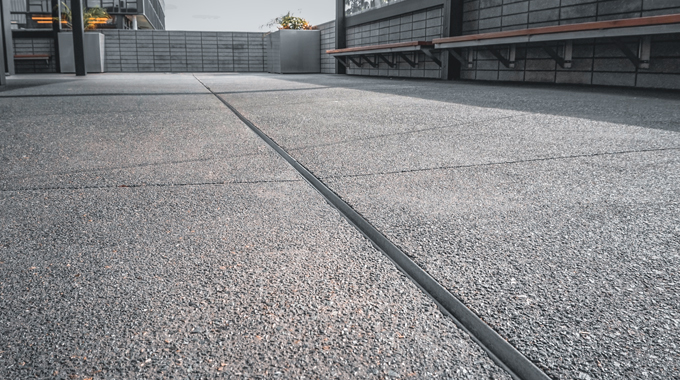

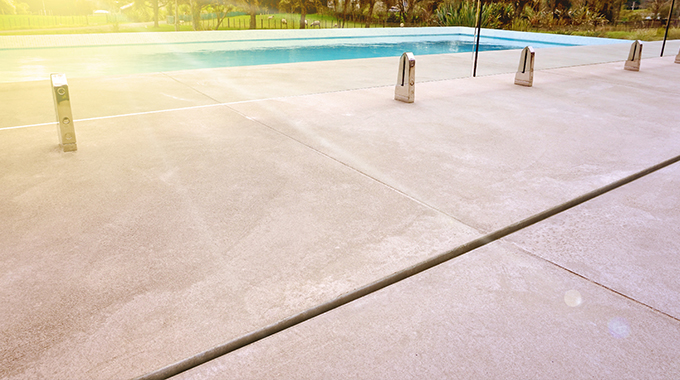

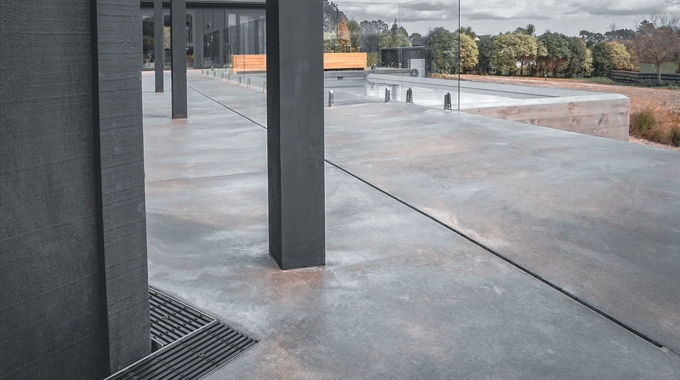

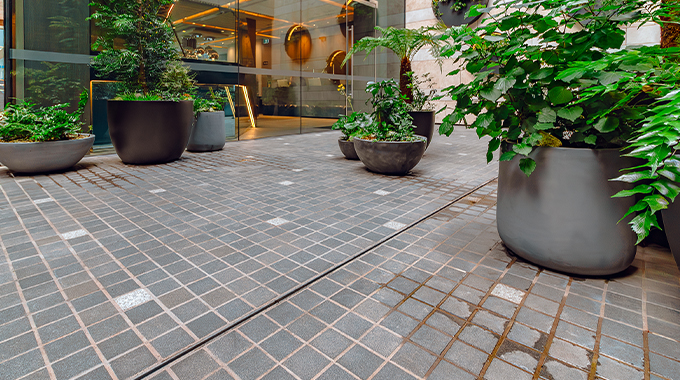

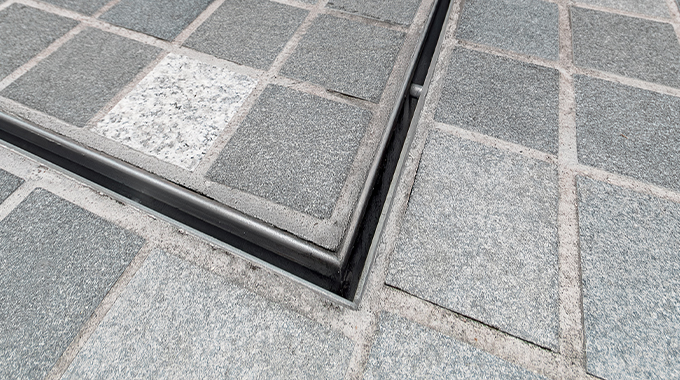

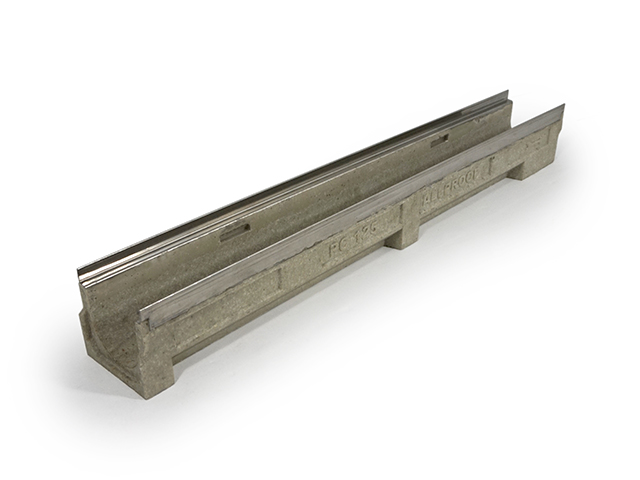

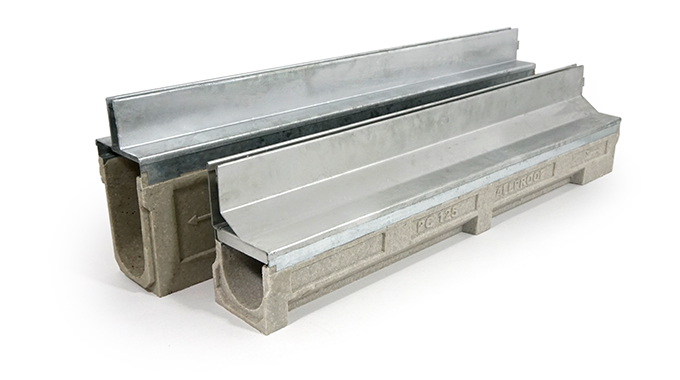

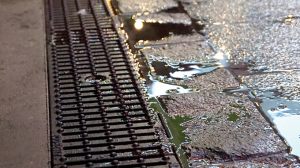

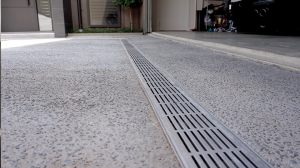

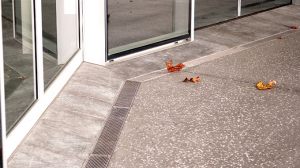

The Polymer Concrete Slot Drain combines heavy‑duty performance with a minimalist finish. Manufactured from durable polymer concrete for low permeability and excellent chemical resistance, this trench drain uses galvanised or stainless steel slot attachments to deliver discreet yet efficient surface water management. Ideal for courtyards, pool surrounds, patios, and paved outdoor areas.
Features
-
- Polymer concrete channel for durability and low permeability

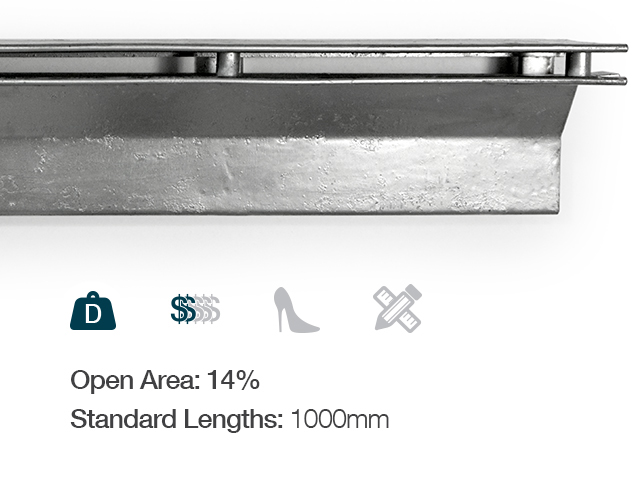

- Minimal‑impact galvanised or stainless steel slot attachments
- Slot clear opening: 15 mm

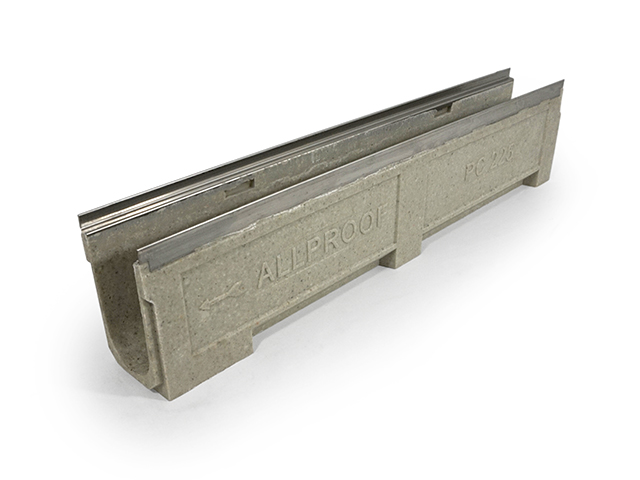

- Channel clear opening: 100 mm (channel)
- Channel depth options: 75–225 mm
- Slot attachment depth increase: 75–100 mm
- Supplied in 1 m lengths for flexibility
- Joiner channels create fall along the trench
- Inline sump for sediment catchment (talk to us about access options)
- Optional PC Clamp available
- Supports mirrored or 90° directional layouts for endless run lengths
Product Enquiry
We love to help with technical questions and provide further product information, however please note that we don’t provide costs direct to the market. For quotes and prices please direct your enquiry through your preferred installer and/or merchant. Please see our FAQ’s for further information on this.

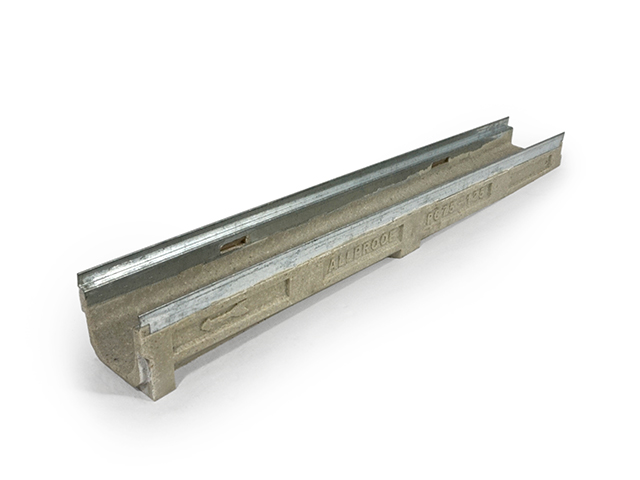

75mm SS/GALV
75-125mm SS/GALV Channel Joiner
125mm SS/GALV
125-175mm SS/GALV Channel Joiner
175mm SS/GALV
175-225mm SS/GALV Channel Joiner
225mm SS/GALV

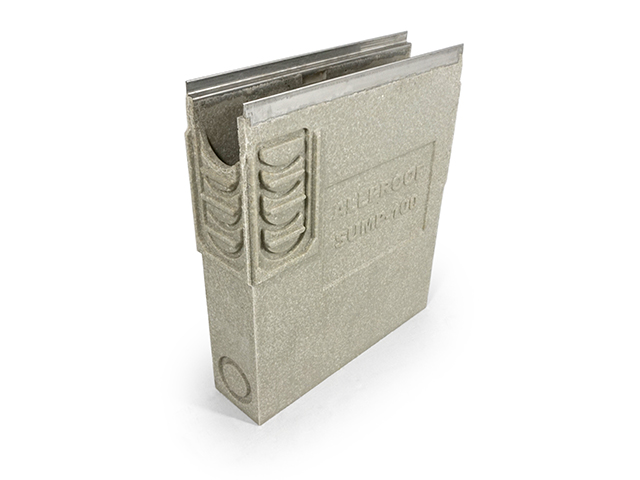

SS/GALV Inline Sump

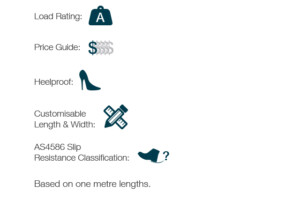

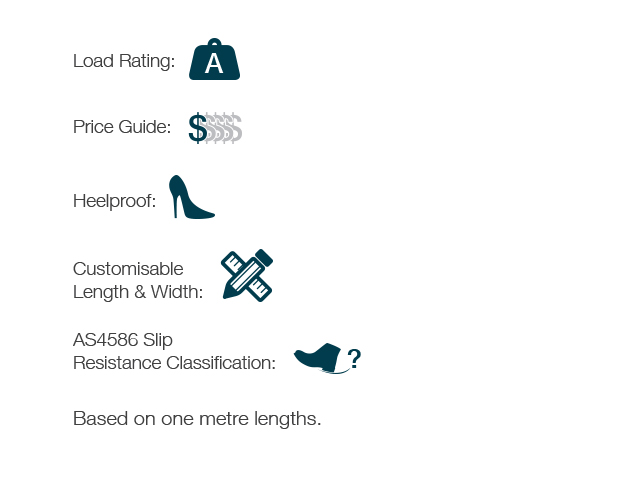

Standard stainless finish is supplied as default on Stainless Steel products unless otherwise advised.
Stainless Steel

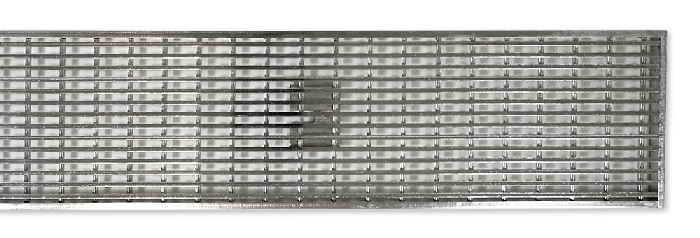

Electropolished Stainless Steel
Galvanised Steel
Cast Iron

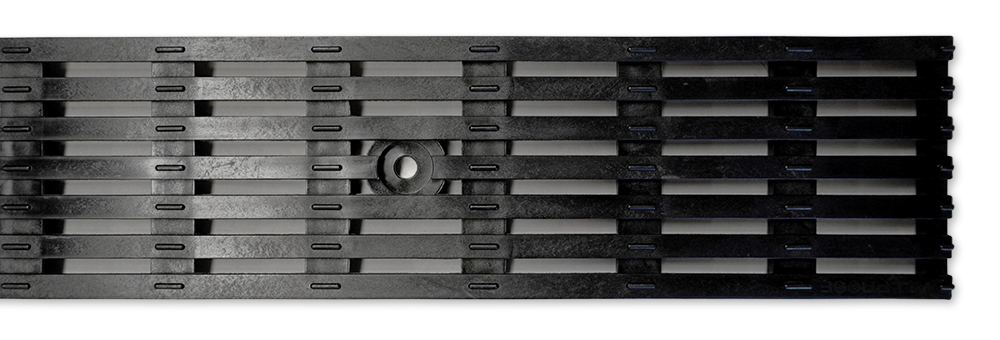

Glass Filled Nylon

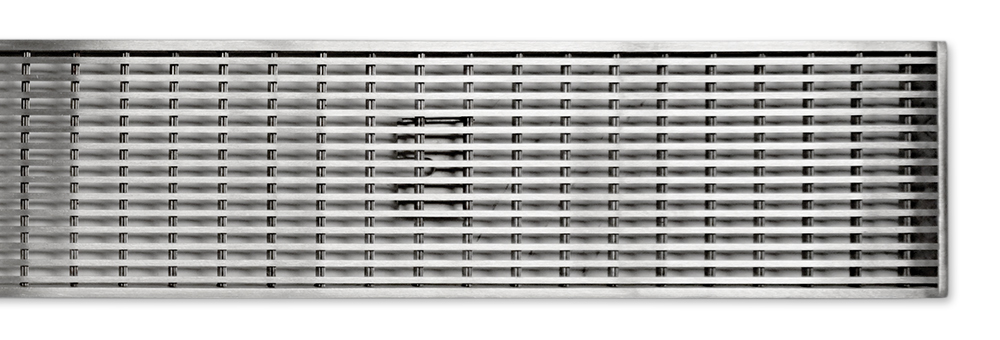

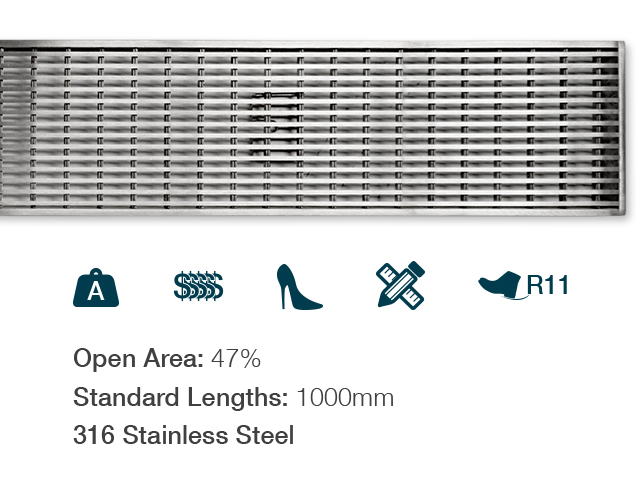

316 Stainless Steel Wedgewire

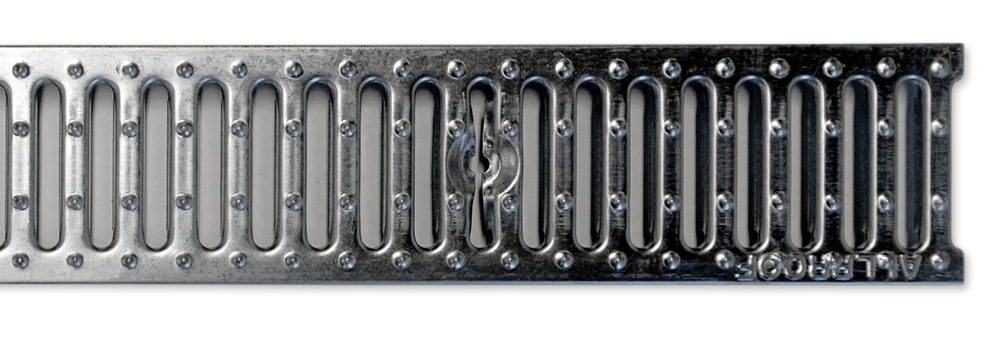

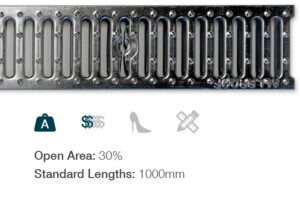

Galv or 304 Stainless Steel Grate

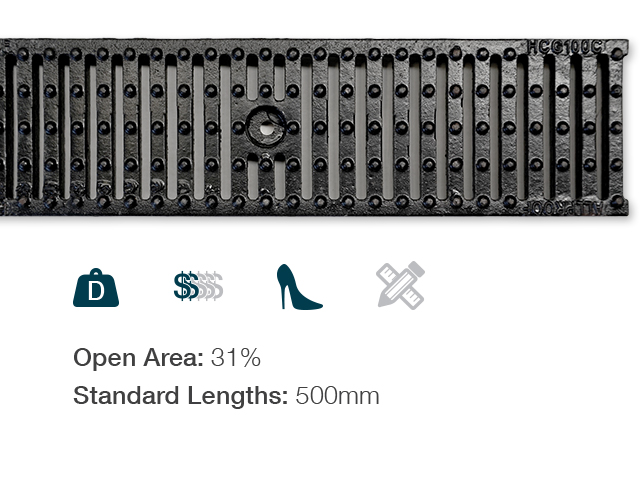

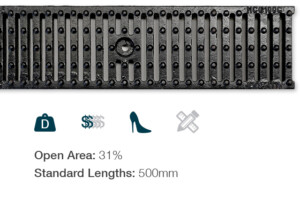

Heelproof Cast Iron Grate

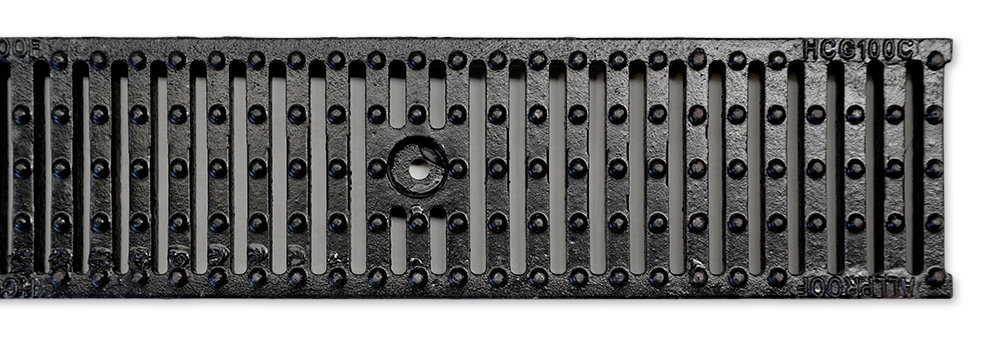

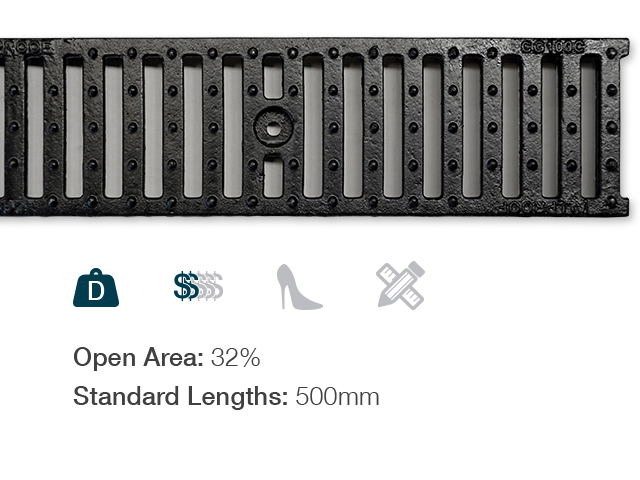

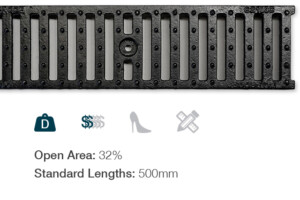

Cast Iron Grate

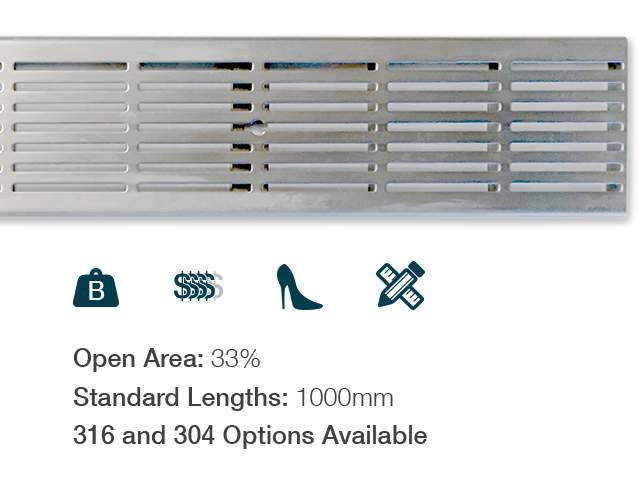

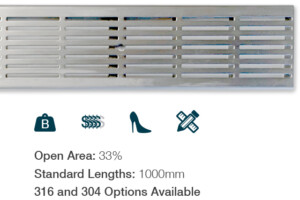

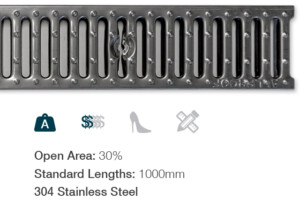

304 Stainless Steel Laser Grate

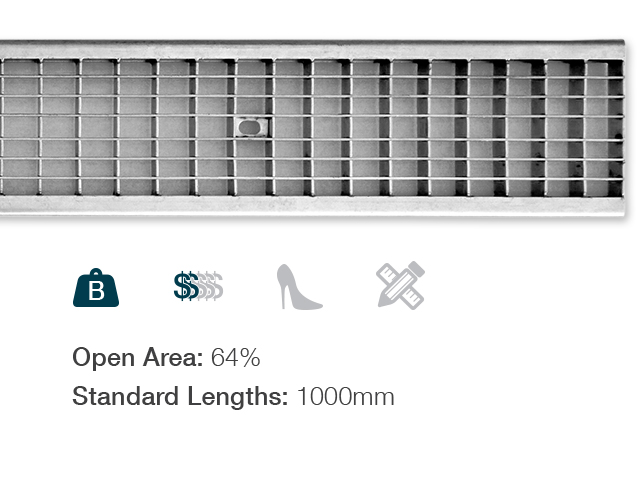

304 Stainless Steel Ladder Grate

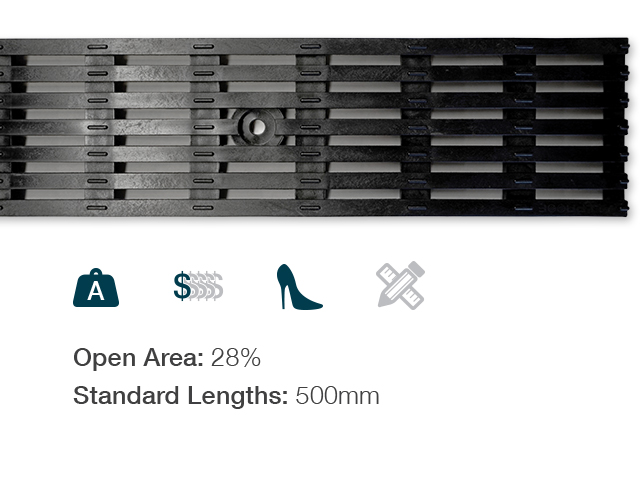

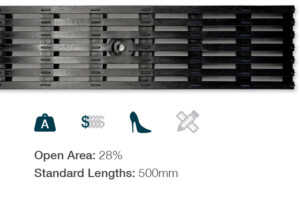

Glass Filled Nylon Grate

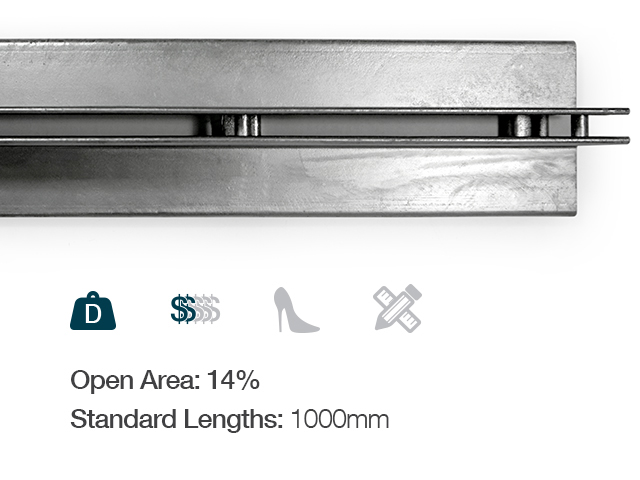

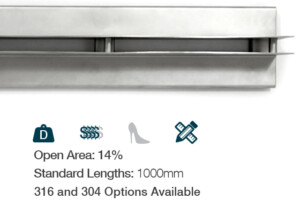

Galv Centre Slot Drain

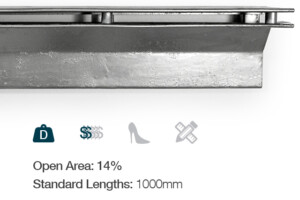

Galv Offset Slot Drain
End Caps
| wdt_ID | Code | Description | .pdf File | CAD File |
|---|---|---|---|---|
| 23 | PC225EC SS | 225mm PC End Cap | ||
| 24 | PC175EC SS | 175mm PC End Cap | ||
| 25 | PC125EC SS | 125mm PC End Cap | ||
| 26 | PC75EC SS | 75mm PC End Cap |
End caps aren’t included with channels, please specify amount of end caps required when requesting a quote.
Revit Files

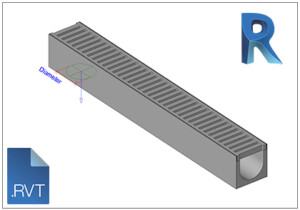

PCCI.rvt

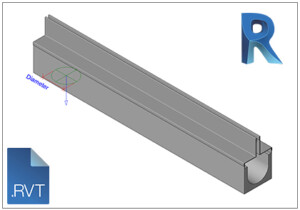

PCGCSL.rvt

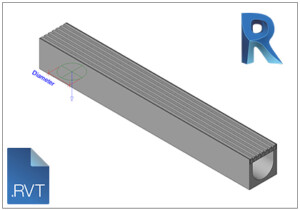

PCGFN.rvt

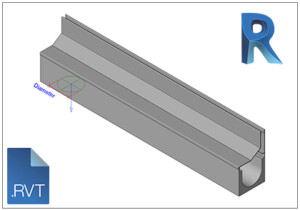

PCGOSL.rvt
PCSS.rvt
PCGS.rvt
PCHCI.rvt

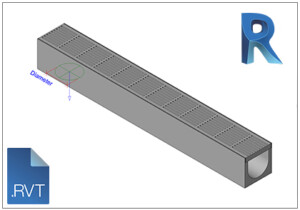

PCLAS.rvt

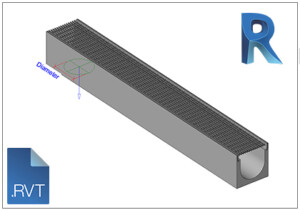

PCWW.rvt

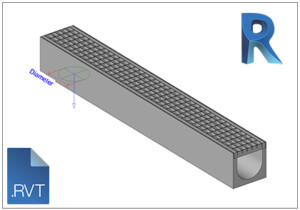

PCLAD.rvt
Install Drawings
PC Install.pdf
PC Install.dwg
PC Inline Sump Install.pdf
PC Inline Sump Install.dwg
PC Clamp Install
Technical Documents
Install Guide
Load Class
Material Analysis Report
Cast Iron Material Information
Galv Material Information
System Example

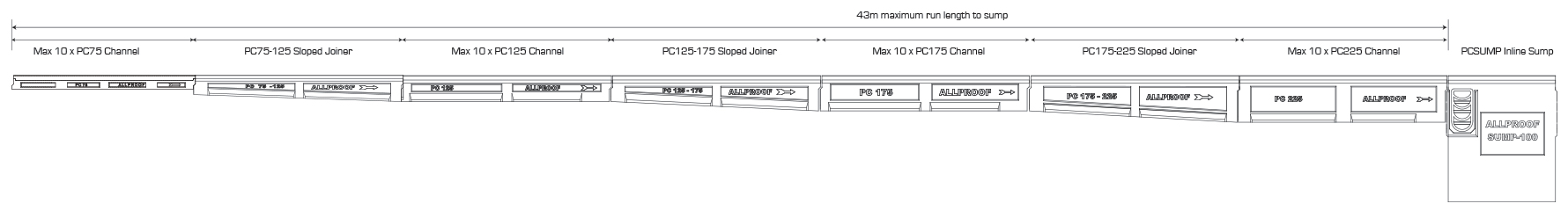

The system design accommodates runs of up to 43 meters, terminating at a sump. A mirror image can then be run in the opposite direction, resulting in maximum length of 76 meters between sumps. Overall system length is unlimited. This may be reduced dependent on required flow rates or other constraints. We suggest talking to a Hydraulics Consultant with your exact requirements.
PC Volume Capacity (L)
| wdt_ID | Code | Description | Total Litre Capacity |
|---|---|---|---|
| 7 | PC225 | 225mm PC Channel | 16.97L |
| 8 | PC200x225 | 200x225mm PC Channel | 32.07L |
| 9 | PC175 | 175mm PC Channel | 11.5L |
| 10 | PCSUMP200 | PC Inline Sump 200mm Clear Opening | 44.16L |
| 11 | PC75 | 75mm PC Channel | 3.77L |
| 12 | PC125 | 125mm PC Channel | 7.75L |
| 13 | PCSUMP100 | PC Inline Sump 100mm Clear Opening | 22.98L |
