Allproof specialises in tile over stainless steel shower tray bases, these provide modern bathrooms and showers with the stunning aesthetics of tiled walls and floors while also providing the security of a highly durable and impermeable waterproof barrier.

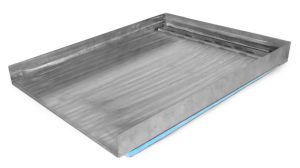

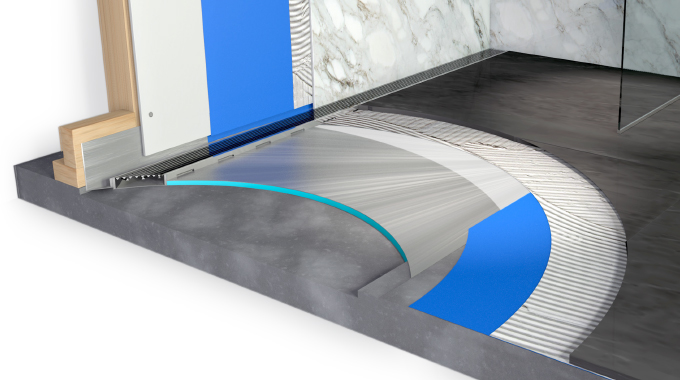

The Allproof stainless steel shower base is custom made to suit each individual shower, this accommodates for over all size, entrance(s), walls, style and location of the drainage grate, and the the depth / thickness of the floor and wall tiles. Australian standards require specific falls across a shower floor to ensure that surface water is efficiently drained, the tile over stainless shower tray incorporates an engineered wedge under the stainless base providing the specific slope, this ensures performance, compliance and improves the install process by not requiring a screeded fall.

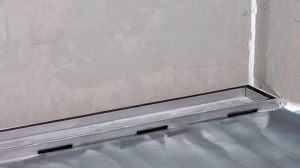

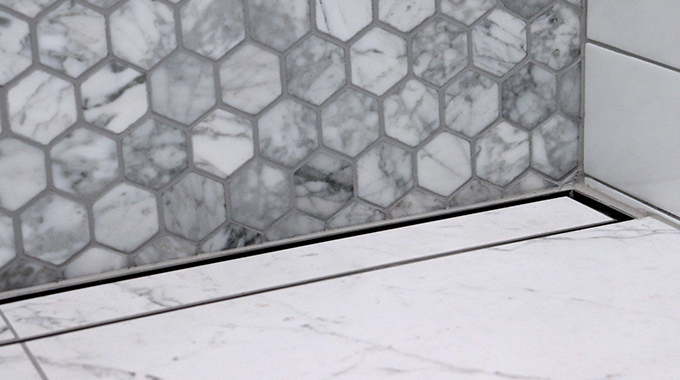

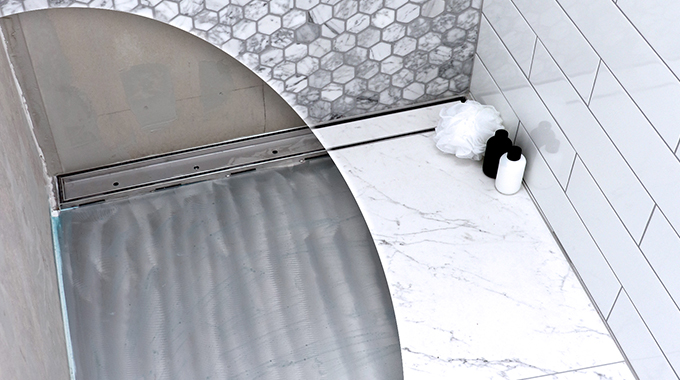

The tile over stainless shower tray uses a linear channel drain and grate with 5 designs to select from including a tile insert grate. The tray uses a tile bar around the grate providing a tidy edge to tile up against ensuring all the details match what’s expected from a high end modern bathroom shower.

> LEARN MORE ABOUT WHY YOU WOULD CHOOSE A TILE OVER TRAY <

Install Drawings


Install Guide


Design Notes

Maximum tray dimensions are 2800mm x 1300mm.

Due to production limitations a true level entry can only be achieved on a tray with 3 wall upstands and the channel/outlet directly opposite the entry side (fall directed away from the entrance to the channel). For level entry applications with less than 3 wall upstands, a minimum 10mm step down is required at the entry of the tray (a recommended feature for the containment of surface water).
