Wallthrough

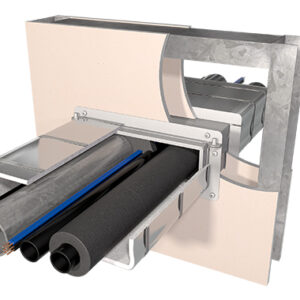

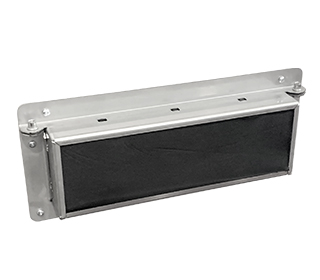

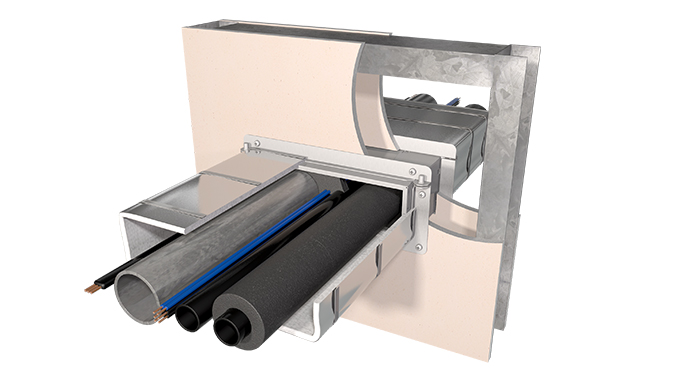

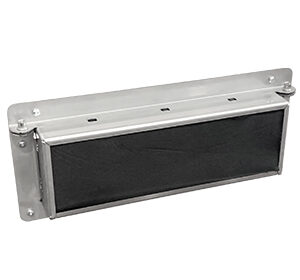

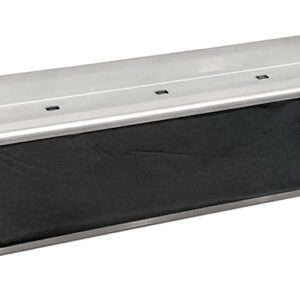

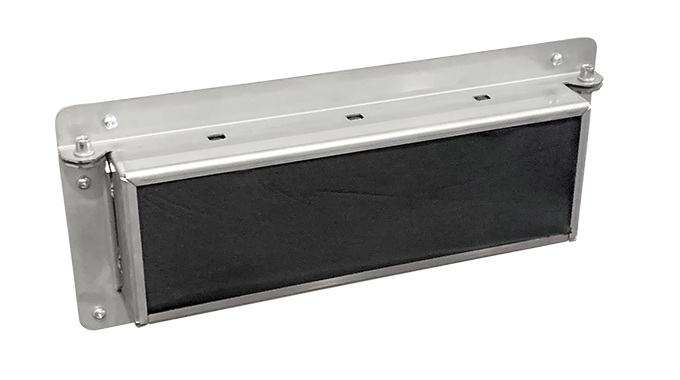

The Allproof Wallthrough provides a fire-rated multi-service penetration solution for apartment and hotel room entry points. Its stainless steel sleeve, internally lined with intumescent material, ensures robust passive fire protection for services passing through fire-rated plasterboard walls. The system can be installed before services are run or retrofitted, making it ideal for flexible project timelines and retrofit scenarios.

Features:

    • Stainless steel sleeve with intumescent lining
    • Suitable for multi-service penetrations in fire-rated plasterboard walls
    • Pre-install or retrofit installation options
    • Includes NBR block seals and fire-rated sealant for smoke control
    • Compatible with FIREFLY Penowrap for fire integrity

Branz Appraised Icon  Allproof specification masterspec

 Subscribe for Product Updates

Allproof passive fire products have been tested on plumbing and electrical service penetrations. To assist with product research and technical information our test literature has been presented in documents relevant to the service penetration that requires fire rating.

Wallthrough

Suitable For Fitting To:

    • Plasterboard Walls

Features:

    • Totally unaffected by water
    • No need to frame out penetration
    • Multi-service solution
    • Low profile flange
    • Retro or pre-service install fitting

Installation Instructions:

    1. Cut penetration through plasterboard wall 305mm x 105mm.
    2. Install Wallthrough sleeve.
    3. Seal aperture between Wallthrough sleeve and plasterboard wall with fire-rated sealant to the depth of the plasterboard and a maximum width of 5mm on both sides of the wall.
    4. Install friction-fit flange around sleeve, tension sleeve using flange fixing screws, and secure to plasterboard wall using dog pan head screw anchors.
    5. Remove NBR block seal and install services.
    6. Refit block seal around the individual service shapes.
    7. Apply sealant between block seal and Wallthrough.
    8. Apply sealant between block seal and services.
    9. Install 300mm wide FIREFLY Penowrap around Wallthrough box perimeter and services; FIREFLY Penowrap should overlap by 100mm and be taped at the join using foil-backed tape.
    10. Secure in position using stainless steel cable ties. The first cable tie should be positioned 25mm from the wall face around the Wallthrough. The third cable tie should be 50mm from the end of the FIREFLY Penowrap, with the second cable tie secured at an equal distance between the first and the third.

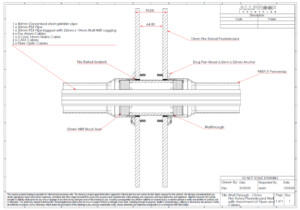

Install Details
