Cast Bronze Vinyl Flange

Vinyl grate drain clamping ring product thumbnail

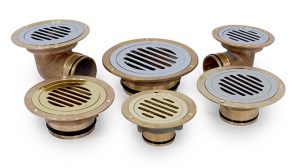

Vinyl floor waste roof drain drainage solution

Vinyl grate drain clamping ring product thumbnail

Vinyl floor waste roof drain drainage solution

Suitable for vinyl showers, vinyl floors, and membraned roofs.

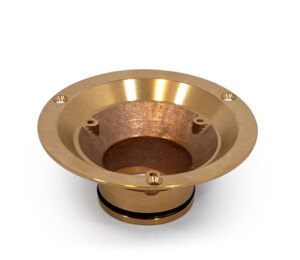

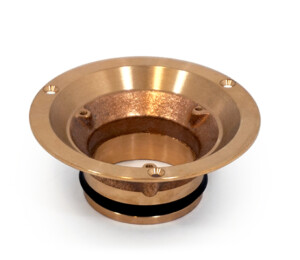

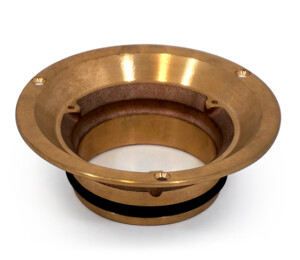

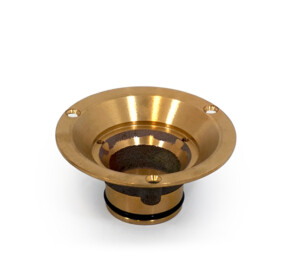

Base flange fits inside 50mm, 80mm and 100mm pipe riser
High-quality cast bronze for durability and longevity
Premium cast bronze for durability and longevity.
Vinyl/waterproofing membrane clamped using 3x stainless screws and clamp ring.
Cam-lock grate for easy waste access without disturbing vinyl/membrane.
Clamp ring/grate finishes flush with flooring.

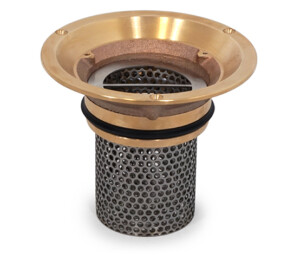

Double strainer basket and 88° side outlet option available.
Stainless steel, polished brass, and chrome on brass finish options.

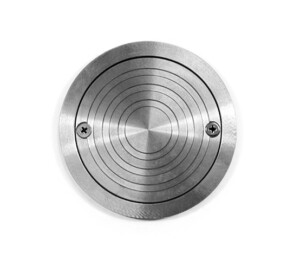

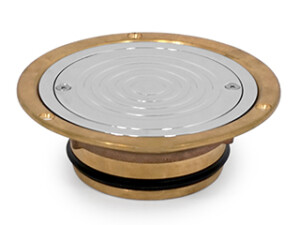

For cleanouts please click here.

Stainless Steel

wdt_ID	Code	Description	.pdf File	CAD File

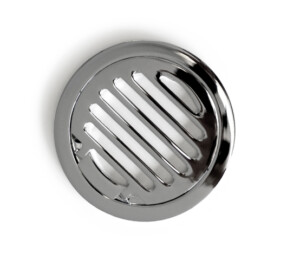

9	168.80VCR/HINGE	80mm Cast Bronze Base with Stainless Steel Hinged Grate and Clamp Ring
10	168.100VCR SS	100mm Cast Bronze Base with Stainless Steel Grate and Clamp Ring
11	168.80VCR SS	80mm Cast Bronze Base with Stainless Steel Grate and Clamp Ring

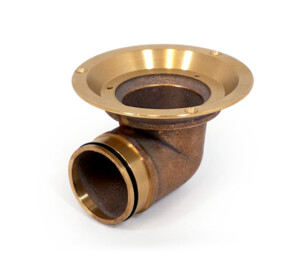

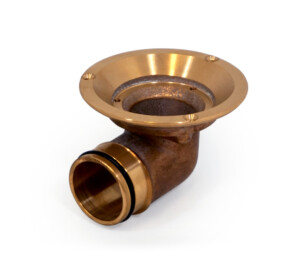

12	168.65VCR SS 90	65mm Cast Bronze Base 90° bend with Stainless Steel Grate and Clamp Ring
13	168.65VCR SS	65mm Cast Bronze Base with Stainless Steel Grate and Clamp Ring
14	168.50VCR SS 90	50mm Cast Bronze Base 90° bend with Stainless Steel Grate and Clamp Ring
15	168.50VCR SS	50mm Cast Brass Bronze with Stainless Steel Grate and Clamp Ring
16	168.100VCR/HINGE	100mm Cast Bronze Base with Stainless Steel Hinged Grate and Clamp Ring

Brass

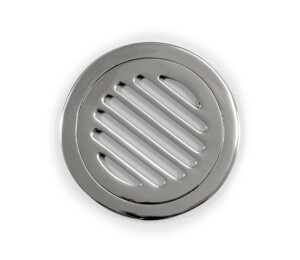

Chrome Plated

wdt_ID	Code	Description	.pdf File	CAD File
17	168.100VCR CP	100mm Cast Bronze Base with Chrome Plated Grate and Clamp Ring
18	168.80VCR CP	80mm Cast Bronze Base with Chrome Plated Grate and Clamp Ring
19	168.65VCR CP 90	65mm Cast Bronze Base Base 90° with Chrome Plated Grate and Clamp Ring
20	168.65VCR CP	65mm Cast Bronze Base with Chrome Plated Grate and Clamp Ring
21	168.50VCR CP 90	50mm Cast Bronze Base Base 90° with Chrome Plated Grate and Clamp Ring
22	168.50VCR CP	50mm Cast Bronze Base with Chrome Plated Grate and Clamp Ring

Vinyl Clamp Drain Revit Family
