Small Diameter Roof Drains

Flat Roof Gutter Drains

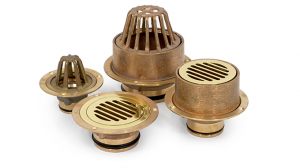

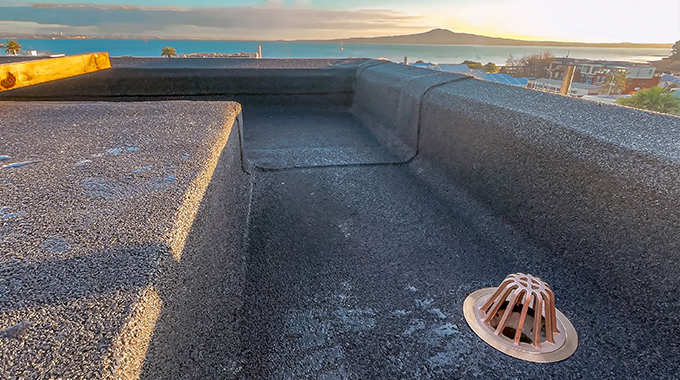

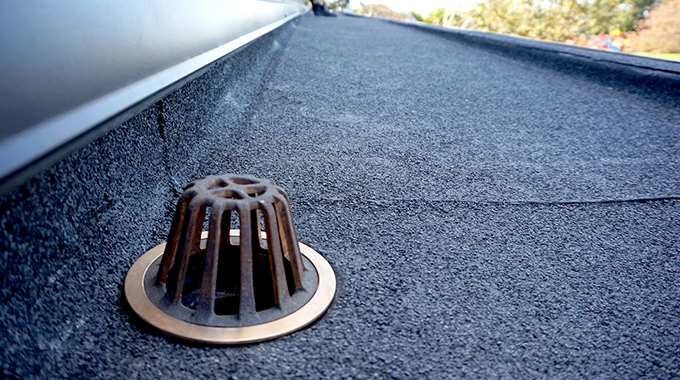

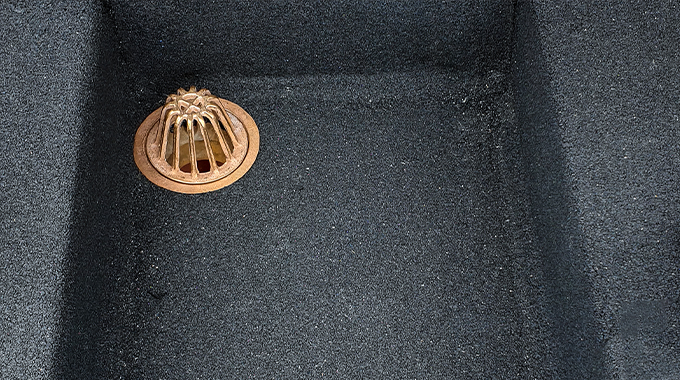

Allproof’s small-diameter roof drains made from bronze are the ideal solution for internal gutters on flat roofs. The size of the base means they easily fit into internal gutters or narrow areas where a larger roof drain wouldn’t. The centre outlet on small-diameter roof drains can also be positioned closer to walls or parapets, making it an excellent option for flat roofs or usable rooftop entertaining spaces.

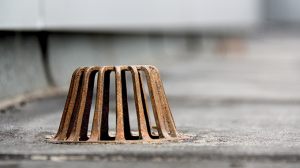

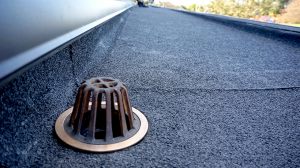

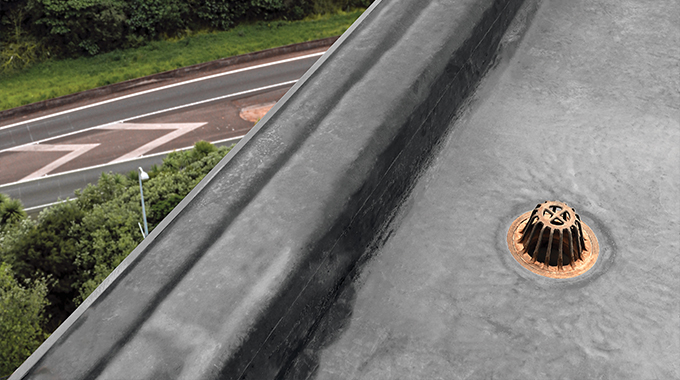

The small diameter roof drain uses a cast bronze flange / base which is rebated into the roof substrate and fixed into place using screws. The rooftop waterproof membrane is then applied over the entire roof space and dressed into the flange. A clamp ring is then fixed over the top of the membrane and flange with stainless screws, providing a flush finish with the waterproofing surface and mechanically clamping the membrane in place. This will ensure that the membrane doesn’t move as the building settles or is affected by the elements. The bronze material doesn’t warp or flex under heat-applied membrane creating a premium and high-performing finish. The grate uses a cam-lock system so that the waterproofing isn’t disturbed during maintenance.

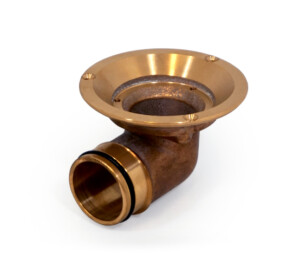

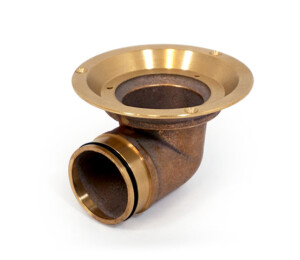

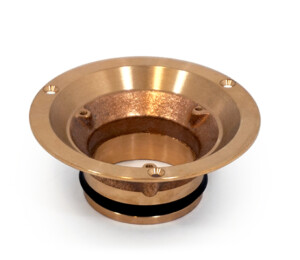

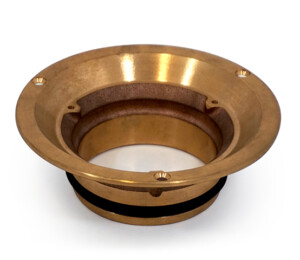

The bronze roof drain flange outlet fits inside the pipe with an o-ring seal on 50mm, 65mm, 80mm and 100mm downpipe. A 90° flange and outlet option is available on 50mm and 65mm bases providing an excellent option for skillion roofs or roof spaces with reduced depth.

Allproof’s small diameter bronze roof drains have been independently flow rate tested.

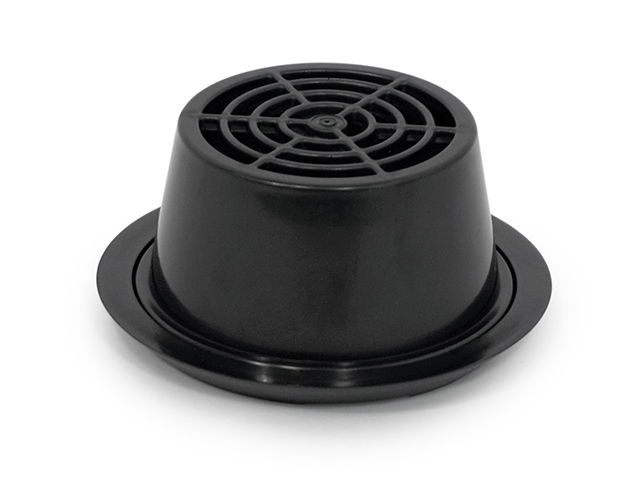

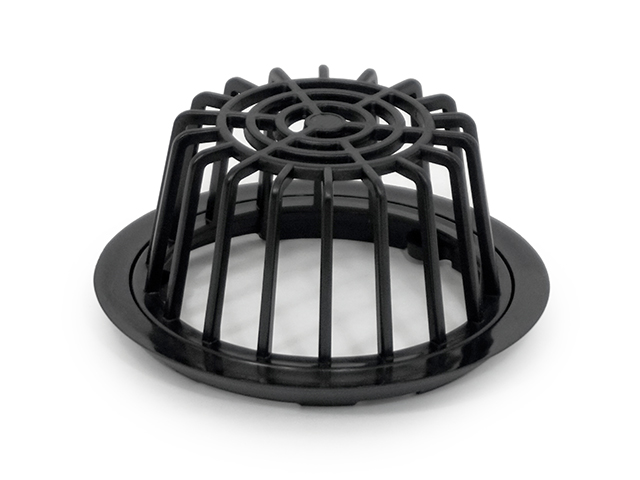

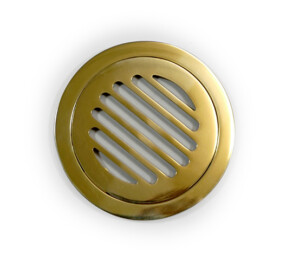

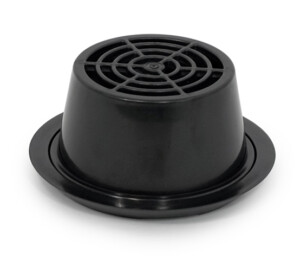

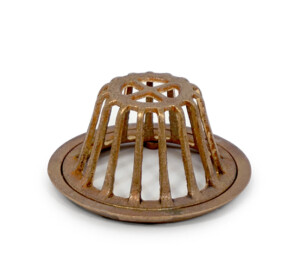

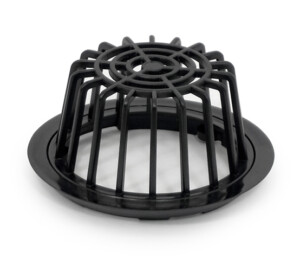

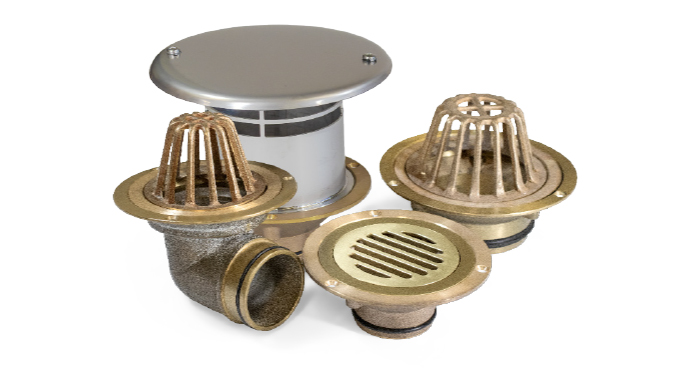

The small-diameter bronze roof drain comes with a variety of grate options including dome, overflow and flat drainage grates. The dome roof drain prevents blockage from leaves or other debris such as plastic bags. The overflow can be used with a dome or flat grate, the flat grate can reduce the height allowing it to sit under decking or tile jacks on usable rooftop spaces. An ASA injection moulded plastic black grate can be used as an economic option, these have been UV stabilised and designed to withstand Australian conditions.

wdt_ID	Code	Description

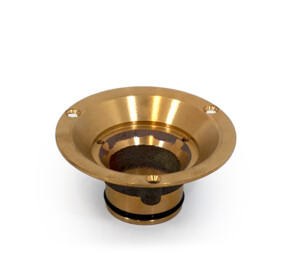

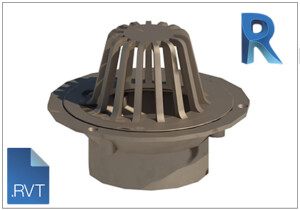

1	168.50 DCR	50mm Cast Bronze Domed Roof Drain with Clamp Ring
2	168.50DCR 90	50mm Cast Bronze 88° Side Outlet Domed Roof Drain with Clamp Ring

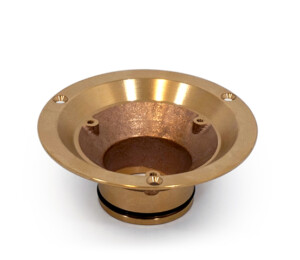

3	168.65 DCR	65mm Cast Bronze Domed Roof Drain with Clamp Ring
4	168.65DCR 90	65mm Cast Bronze 88° Side Outlet Domed Roof Drain with Clamp Ring
5	168.80 DCR	80mm Cast Bronze Domed Roof Drain with Clamp Ring
6	168.100 DCR	100mm Cast Bronze Domed Roof Drain with Clamp Ring

wdt_ID	Code	Description

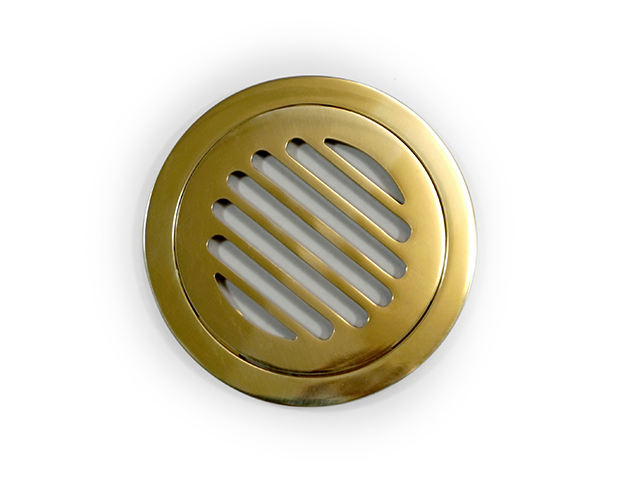

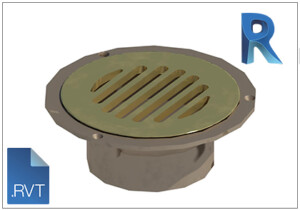

1	168.50VCR BR	50mm Cast Bronze Base with Brass Grate and Clamp Ring
2	168.50VCR BR 90	50mm Cast Bronze Base 88° Side Outlet with Brass Grate and Clamp Ring
3	168.65VCR BR	65mm Cast Bronze Base with Brass Grate and Clamp Ring
4	168.65VCR BR 90	65mm Cast Bronze Base 88° Side Outlet with Brass Grate and Clamp Ring
5	168.80VCR BR	80mm Cast Bronze Base with Brass Grate and Clamp Ring
6	168.100VCR BR	100mm Cast Bronze Base with Brass Grate and Clamp Ring

wdt_ID	Code	Description
1	168.65DCR OFLOW SS	65mm Cast Bronze Stainless Steel Overflow Roof Drain with Clamp Ring
2	168.65DCR 90 OFLOW SS	65mm Cast Bronze 88° SideOutlet Stainless Steel Overflow Roof Drain and Clamp Ring
3	168.80DCR OFLOW SS	80mm Cast Bronze Stainless Steel Overflow Roof Drain with Clamp Ring
4	168.100DCR OFLOW SS	100mm Cast Bronze Stainless Steel Overflow Roof Drain with Clamp Ring

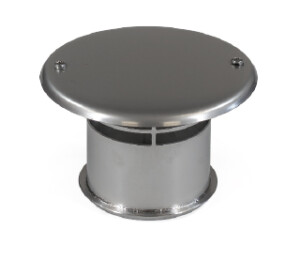

5	168.65DCR OFLOW	65mm Cast Bronze Overflow Domed Roof Drain with Clamp Ring
6	168.65DCR 90 OFLOW	65mm Cast Bronze 88° Side Outlet Overflow Domed Roof Drain and Clamp Ring
7	168.80DCR OFLOW	80mm Cast Bronze Overflow Domed Roof Drain with Clamp Ring
8	168.100DCR OFLOW	100mm Cast Bronze Overflow Domed Roof Drain with Clamp Ring
9	168.65VCR OFLOW	65mm Cast Bronze Overflow Flat Roof Drain with Clamp Ring
10	168.65VCR 90 OFLOW	65mm Outlet Cast Bronze with 88° Side Overflow Flat Roof Drain and Clamp Ring
