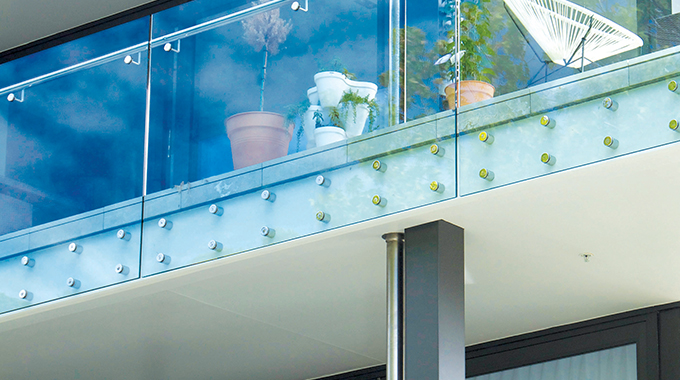

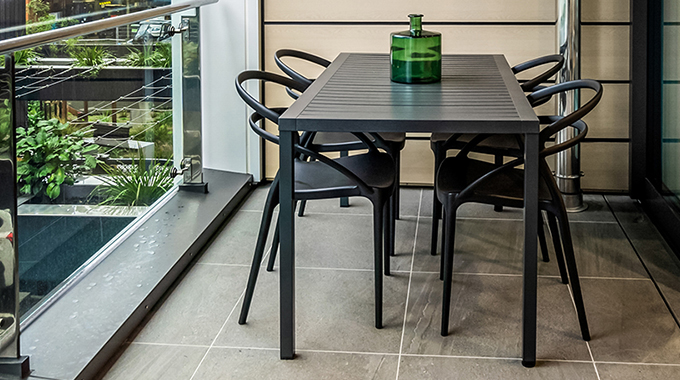

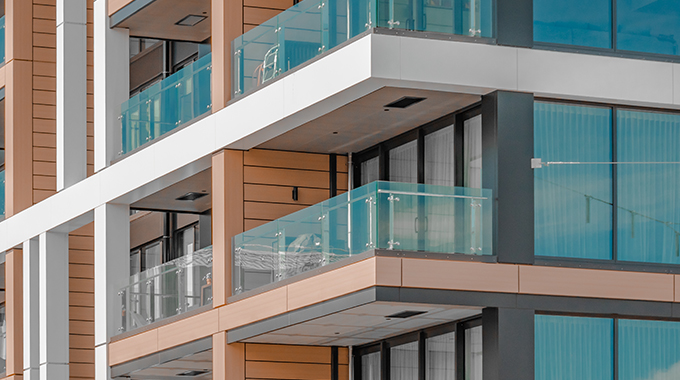

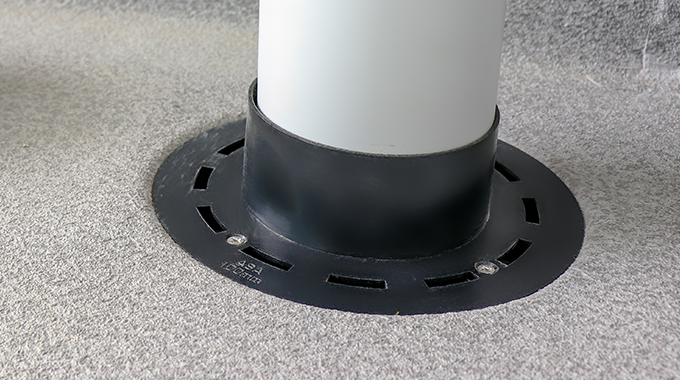

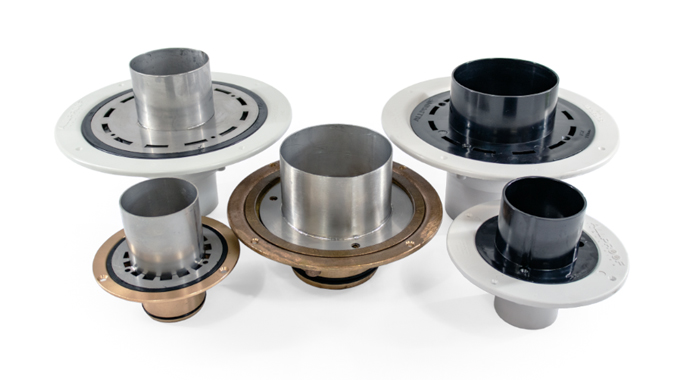

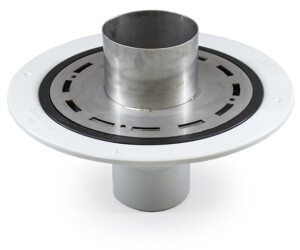

The Allproof Allthrough is a unique solution to meet the requirements of multi-level balcony drainage. The system features a closed sleeve for straight-through levels and an open sleeve for levels where the surface drainage needs to be allowed to feed into the downpipe. The unit is suitable where a floating deck/tile application is being used or a membrane finish balcony.

The closed sleeve should be used when discharging roof drainage through the system.

Options include:

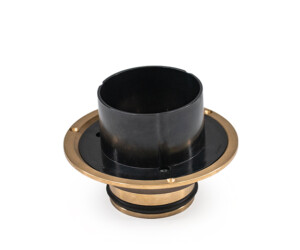

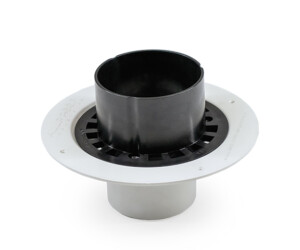

  • Solid one-piece ASA UV stable plastic clamp ring and pipe sleeve unit

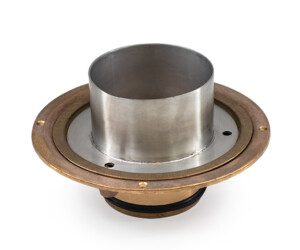

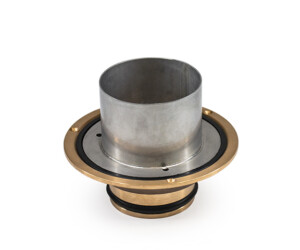

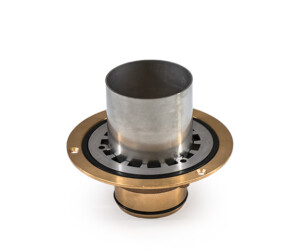

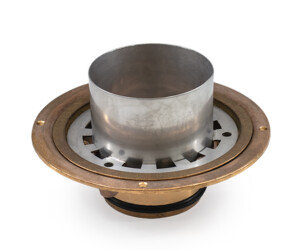

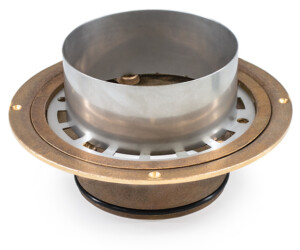

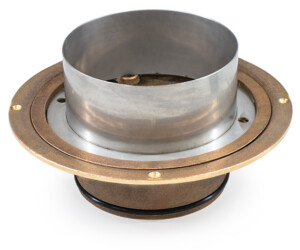

  • Durable two-piece stainless steel pipe sleeve with ASA or bronze clamp ring

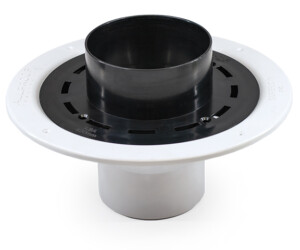

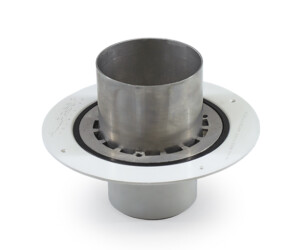

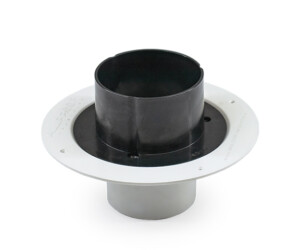

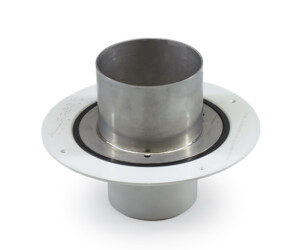

  • PVC Base (suited to liquid-applied membranes)
  • Brass bases for heat-applied membranes

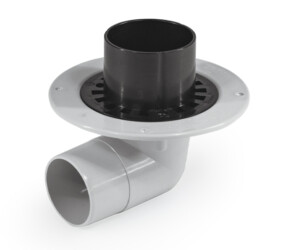

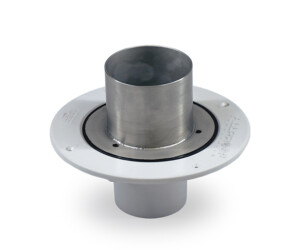

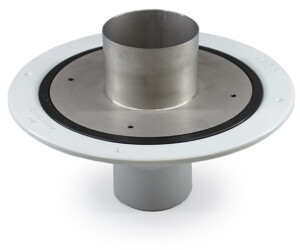

  • Sureflow and VRTW bases for heat-applied membranes
  • Suits pipe 65mm – 150mm diameter

Watermark certification product drainage plumbing standards

Product Enquiry

Brochure

Open Plastic Allthrough

wdt_ID Code Description Heat Application .pdf File CAD File

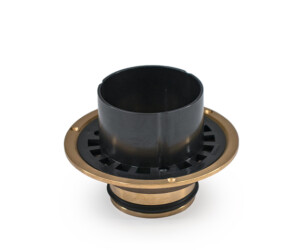

6 AT65BRO PLAS 65mm Allthrough Br Base Open Plastic Sleeve Yes
7 AT65O PLAS 65mm Allthrough With Open Plastic Sleeve No

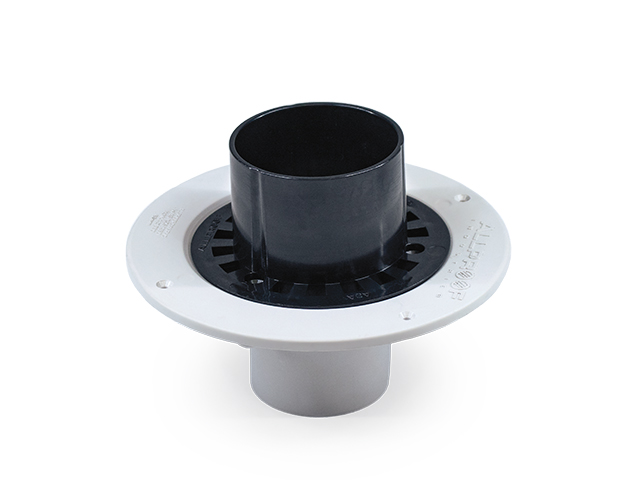

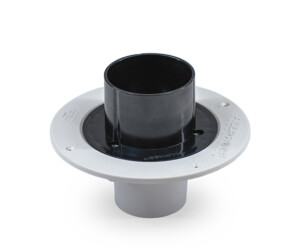

8 AT65O TW PLAS 65mm Allthrough With Thick Walled Base & Open Plastic Sleeve Yes

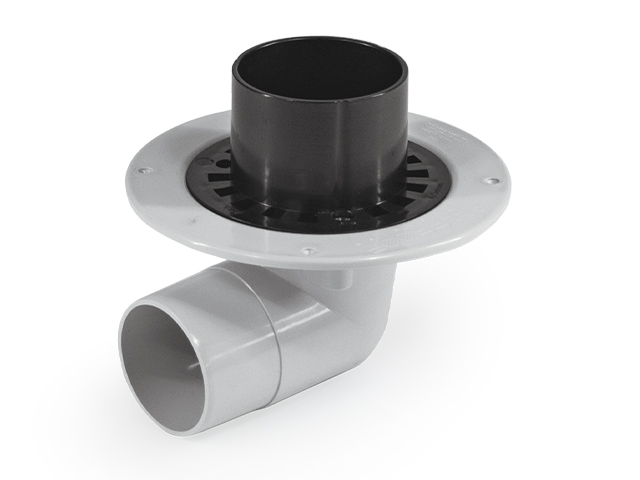

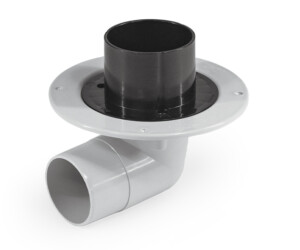

9 AT65.88O TW PLAS 65mm Allthrough With 88°Side Outlet Thick Walled Base & Open Plastic Sleeve Yes
10 AT80BRO PLAS 80mm Allthrough Br Base Open Plastic Sleeve Yes

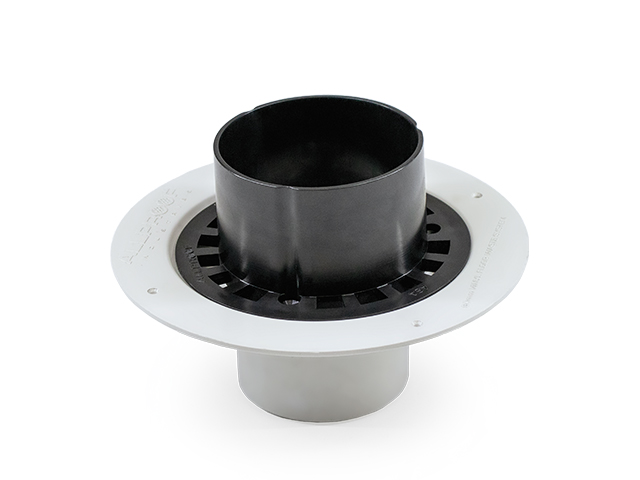

11 AT80O PLAS 80mm Allthrough With Open Plastic Sleeve No

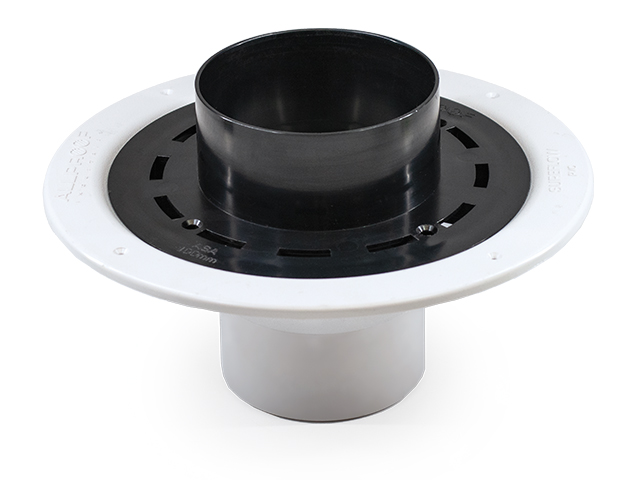

12 AT100O PLAS 100mm Allthrough With Open Plastic Sleeve Yes

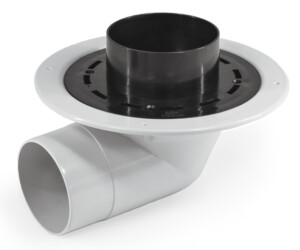

13 AT100.88O PLAS 100mm Allthrough 88° Side Outlet With Open Plastic Sleeve Yes

Open SS Allthrough

wdt_ID Code Description Heat Application .pdf File CAD File

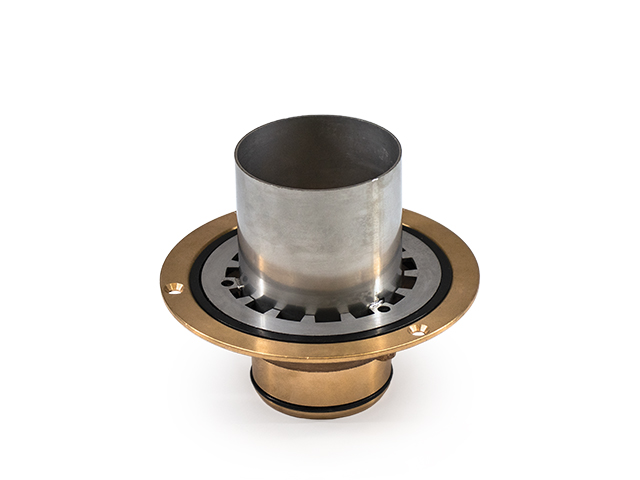

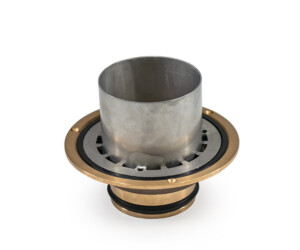

1 AT65BRO 65mm Allthrough Br Base Open SS Sleeve Yes
2 AT65O 65mm Allthrough With Open SS Sleeve No

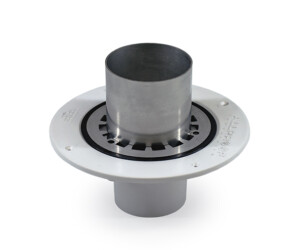

3 AT65TWO 65mm Allthrough With Thick Walled Base Open SS Sleeve Yes

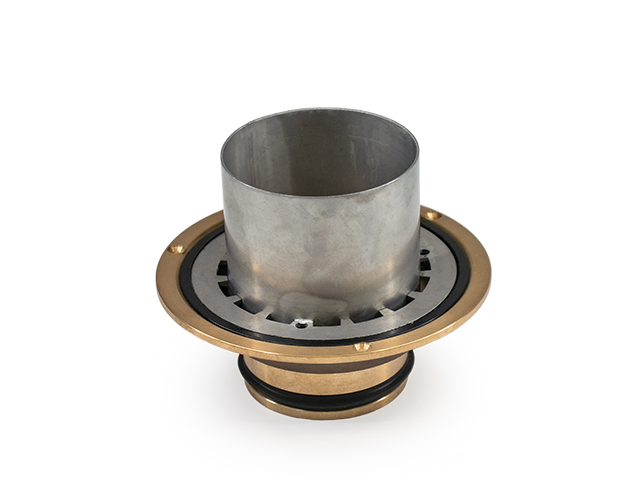

4 AT80BRO 80mm Allthrough Br Base Open SS Sleeve Yes

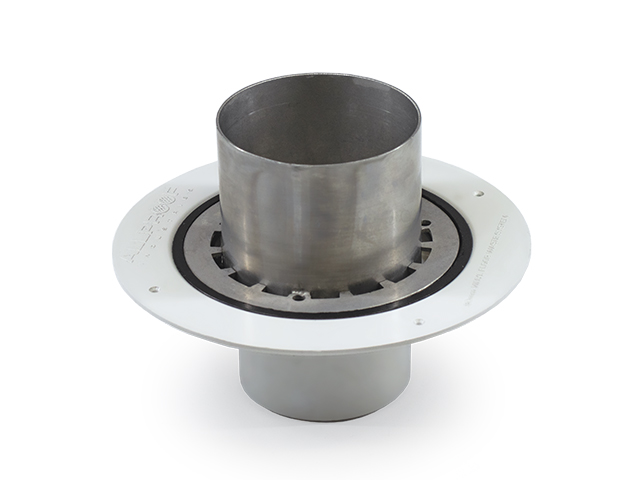

5 AT80O 80mm Allthrough With Open SS Sleeve No

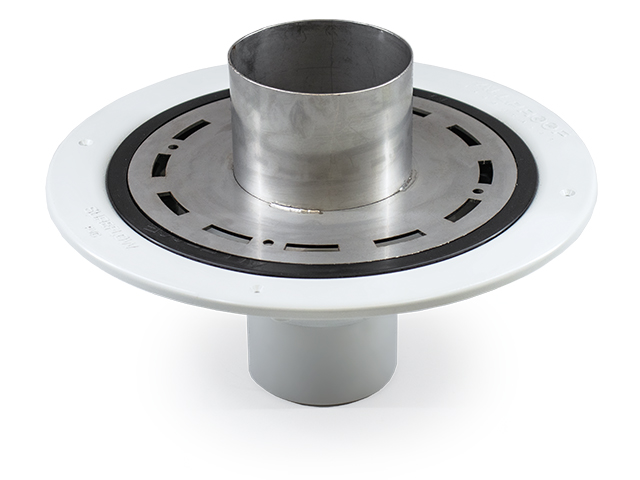

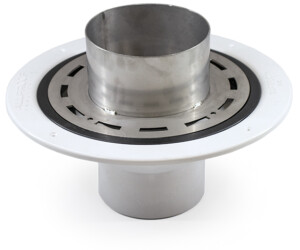

6 AT80O SF 80mm Allthrough Sureflow Base With Open SS Sleeve Yes

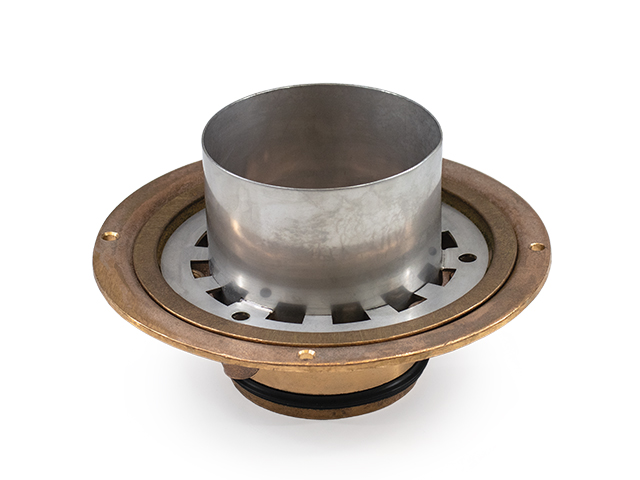

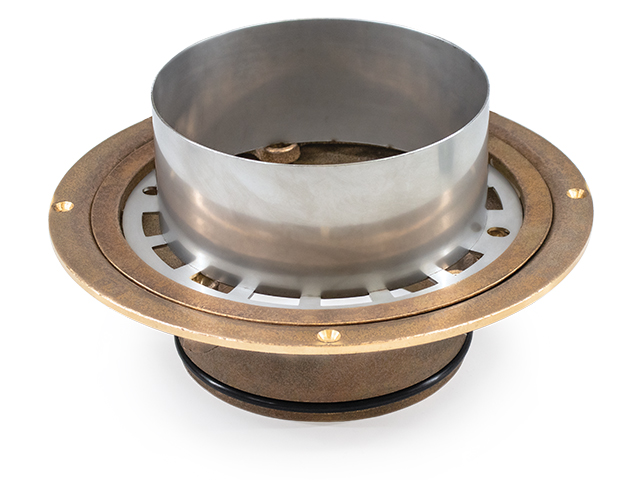

7 AT100BRO 100mm Allthrough Br Base Open SS Sleeve Yes

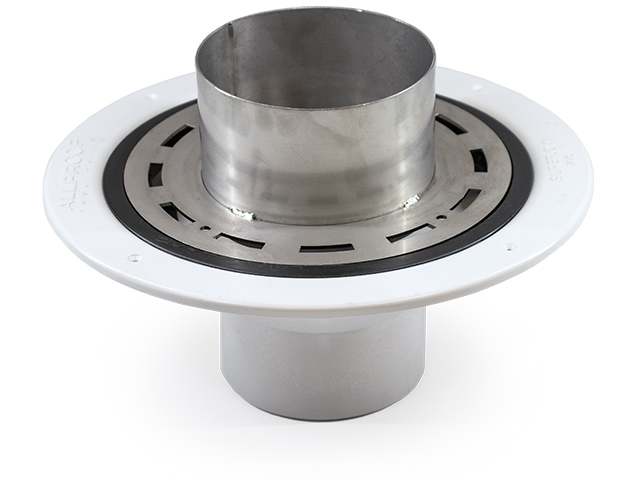

8 AT100O SF 100mm Allthrough Sureflow Base With Open SS Sleeve Yes
9 AT150BRO 150mm Allthrough Br Base Open SS Sleeve Yes

Closed Plastic Allthrough

wdt_ID Code Description Heat Application .pdf File CAD File

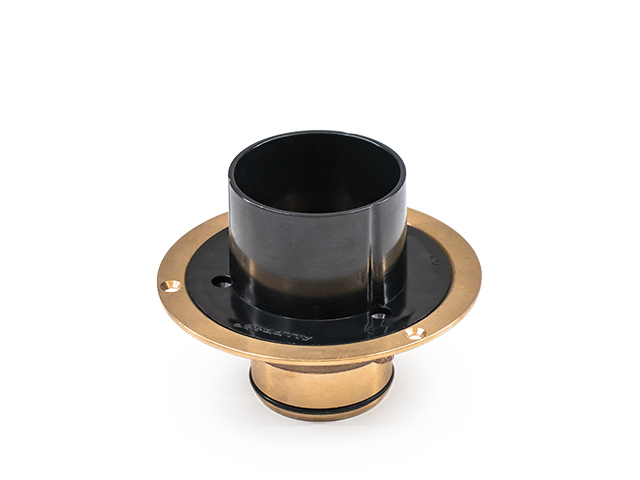

12 AT65BRC PLAS 65mm Allthrough Br Base Closed Plastic Sleeve Yes
13 AT65C PLAS 65mm Allthrough With Closed Plastic Sleeve No

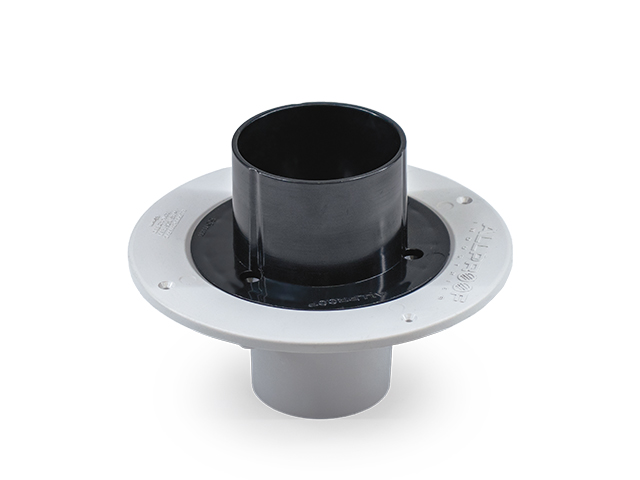

14 AT65C TW PLAS 65mm Allthrough With Thick Walled Base & Closed Plastic Sleeve Yes
15 AT65.88C TW PLAS 65mm Allthrough With 88° Side Outlet Thick Walled Base & Closed Plastic Sleeve Yes

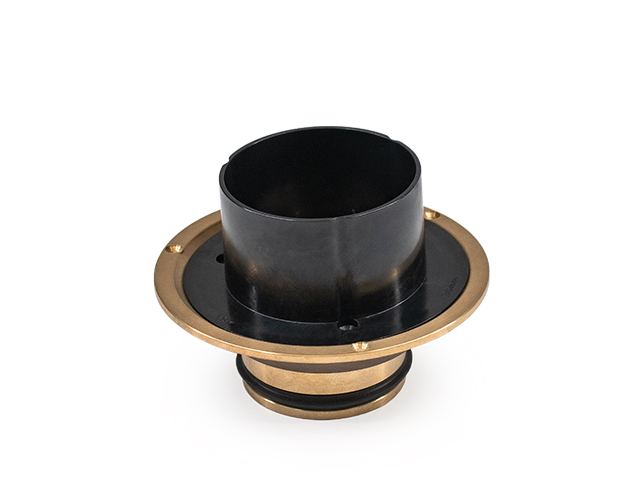

16 AT80BRC PLAS 80mm Allthrough Br Base Closed Plastic Sleeve Yes

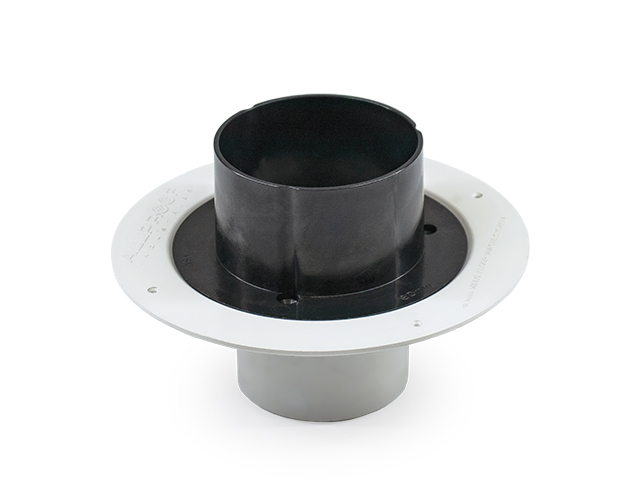

17 AT80C PLAS 80mm Allthrough With Closed Plastic Sleeve No

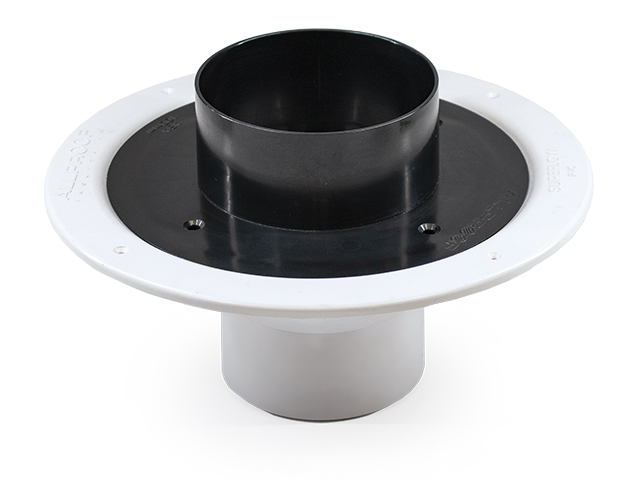

18 AT100C PLAS 100mm Allthrough With Closed Plastic Sleeve Yes

Closed Stainless Steel Allthrough

wdt_ID Code Description Heat Application .pdf File CAD File

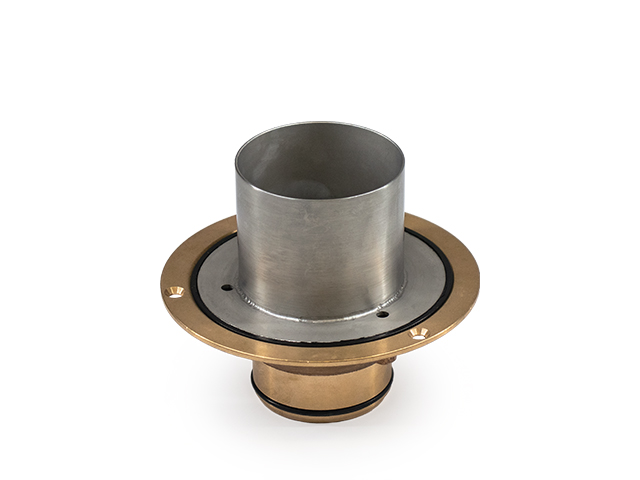

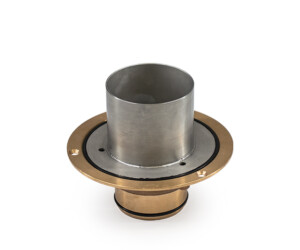

1 AT65BRC 65mm Allthrough Br Base Closed SS Sleeve Yes
2 AT65C 65mm Allthrough With Closed SS Sleeve No

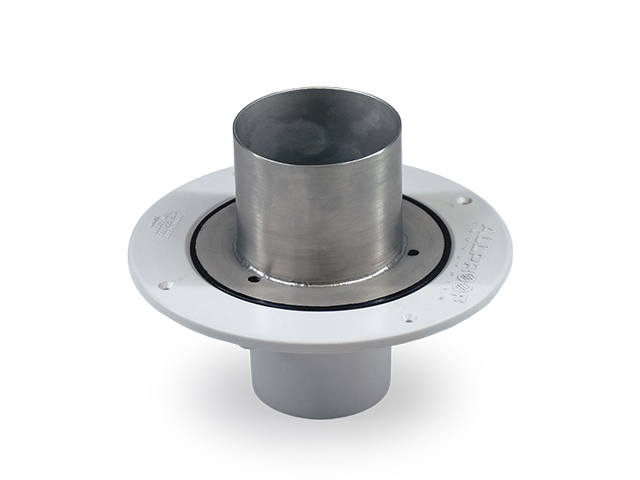

3 AT65TWC 65mm Allthrough With Thick Walled Base Closed SS Sleeve Yes

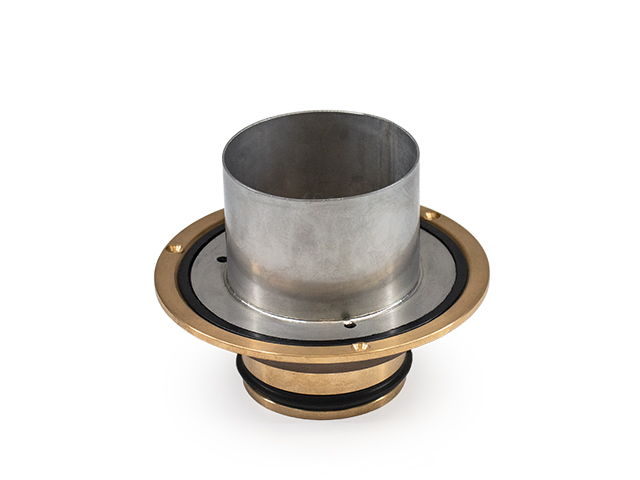

4 AT80BRC 80mm Allthrough Br Base Closed SS Sleeve Yes

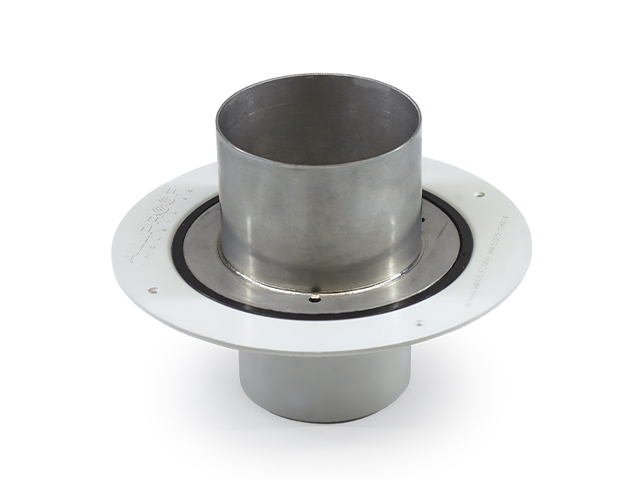

5 AT80C 80mm Allthrough With Closed SS Sleeve No

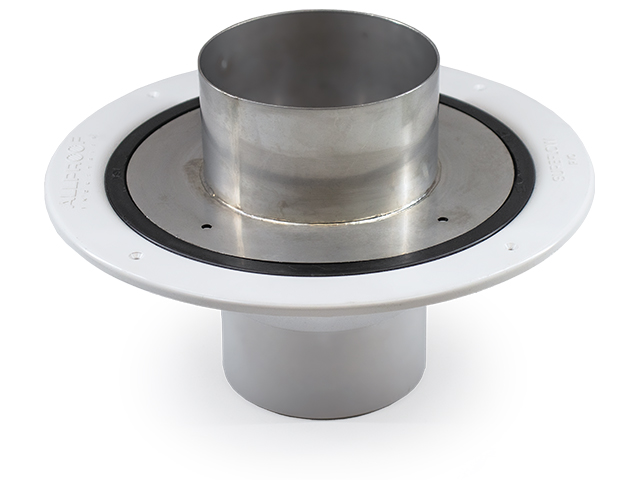

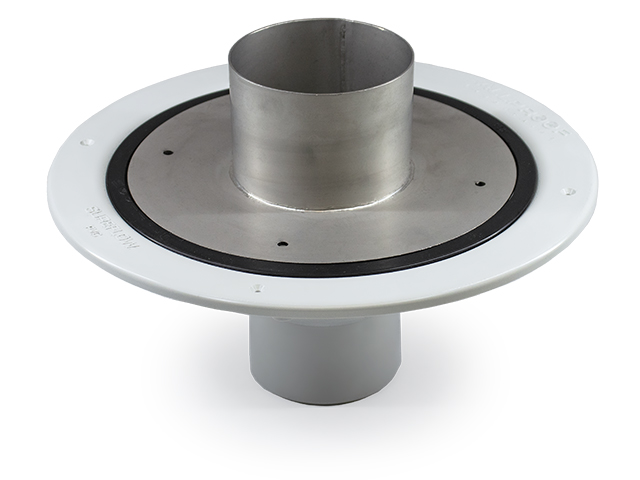

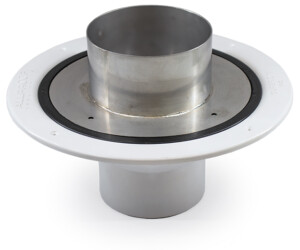

6 AT80CSF 80mm Allthrough Sureflow Base With Closed SS Sleeve Yes

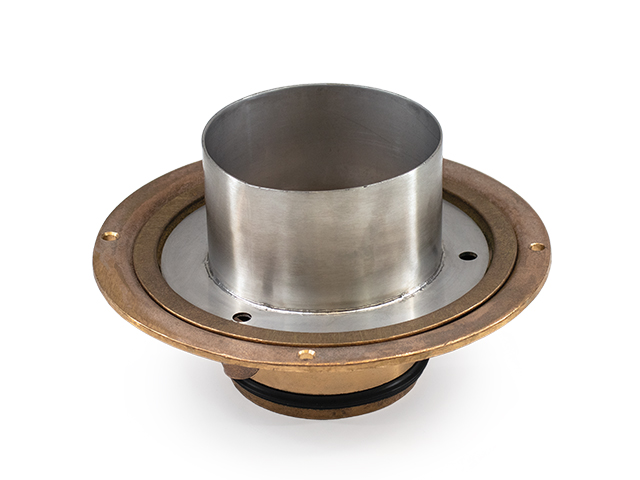

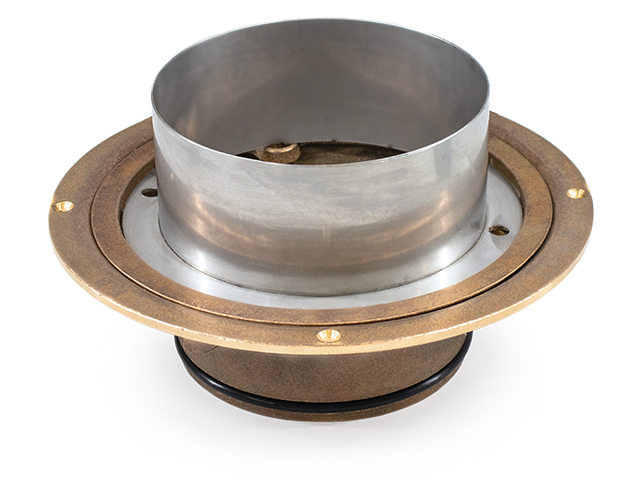

7 AT100BRC 100mm Allthrough Br Base Closed SS Sleeve Yes
8 AT100C 100mm Allthrough With Closed SS Sleeve Yes
9 AT150BRC 150mm Allthrough Br Base Closed SS Sleeve Yes

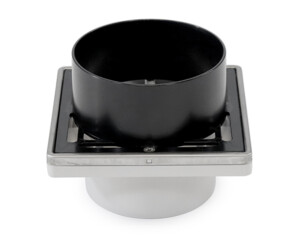

Square Allthrough

wdt_ID Code Description .pdf File CAD File

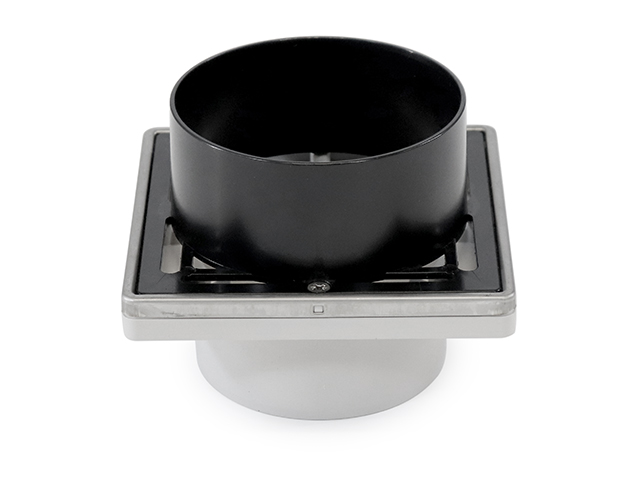

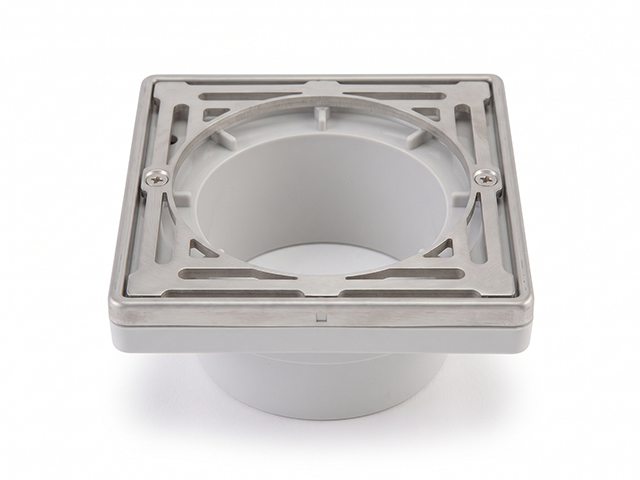

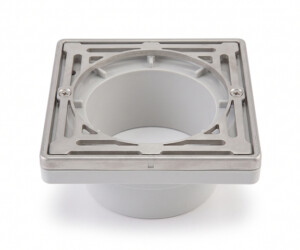

6 PS150.100SAT 150mm Square Allthrough Plas DN100

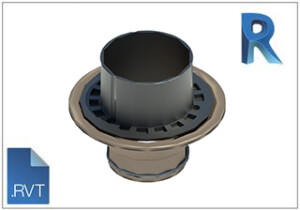

Revit Files
