Vinylrite Roof Drain – Thick Walled

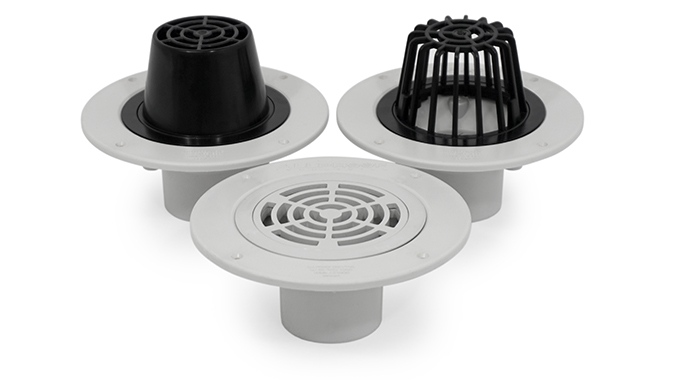

Suitable for use with both domed and flat grate options

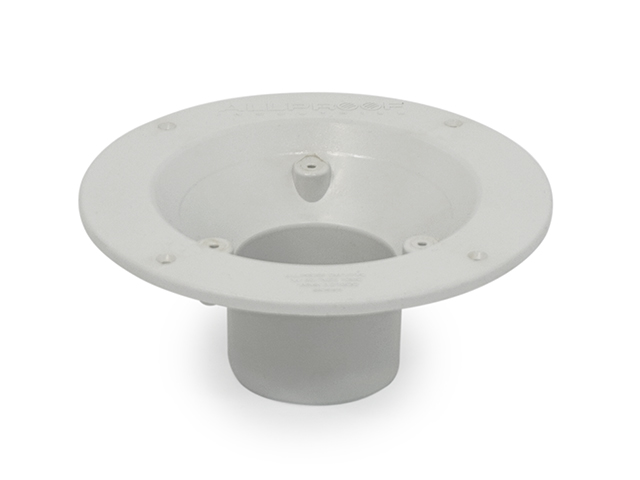

Vertical Outlet 65mm pipe size

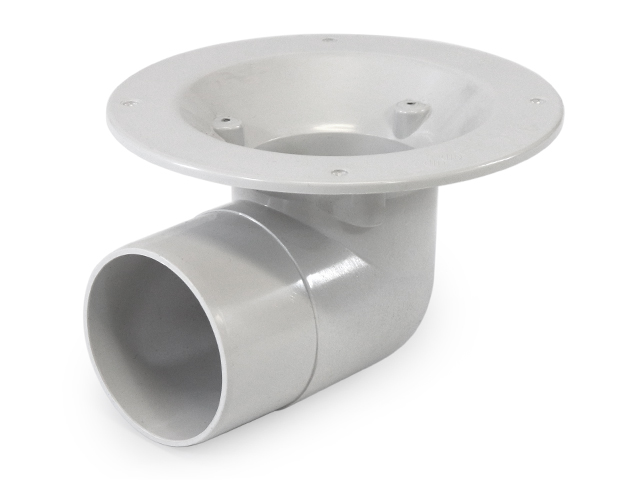

88° Outlet 65mm & 80mm pipe size
Utilises Allproof’s Sureflow thick-gauge profile making it ideal for asphalt-based membrane installations

View Full Catalogue

Please note these finishes are only available on selected grate options, please see codes and drawings tab for a full list.

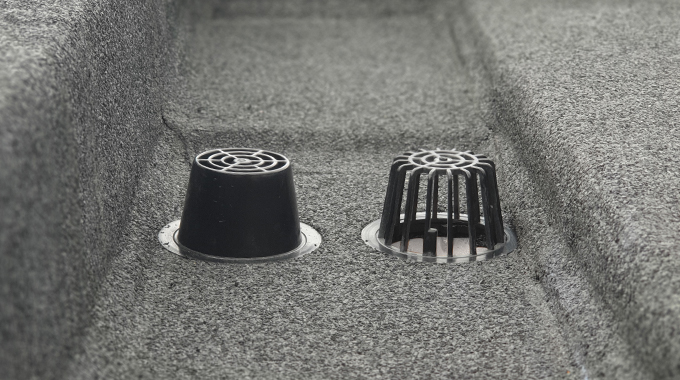

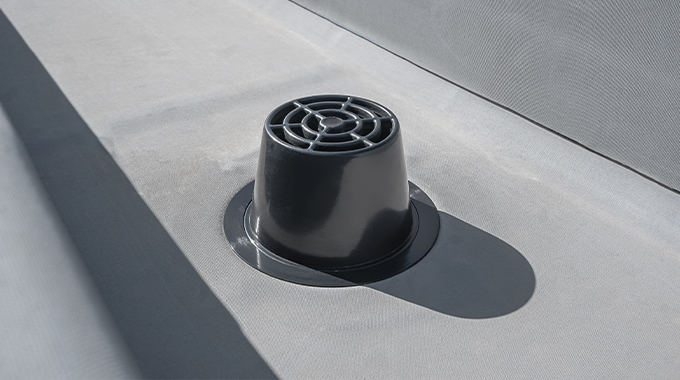

VRTW Dome

VRTW Overflow

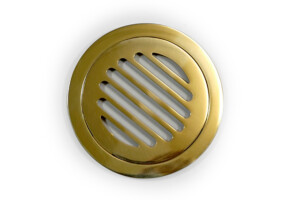

VRTW Flat

wdt_ID	Code	Description	.pdf File	CAD File
27	VRTW65CP	65mm Thick Wall VR Flat Chrome Plated Grate

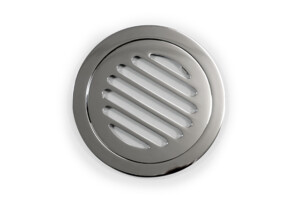

28	VRTW65SS	65mm Thick Wall VR Flat Stainless Steel Grate
29	VRTW65WH	65mm Thick Wall VR Flat White Plastic Grate

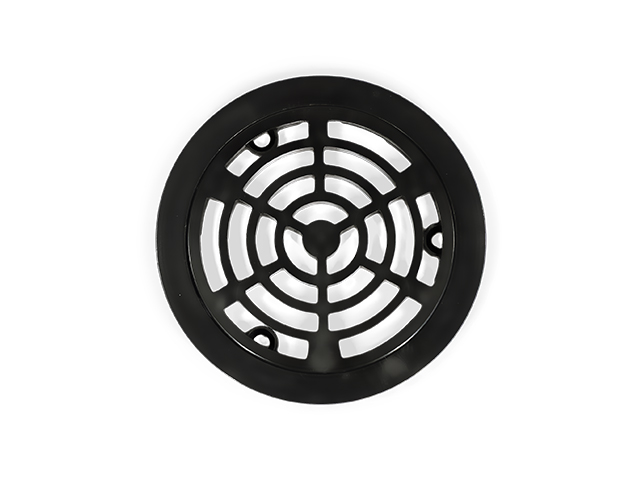

30	VRTW65BLK	65mm Thick Wall VR Flat Black Plastic Grate
31	VRTW65.88CP	65mm x 88 deg Thick Wall VR Chrome
32	VRTW65.88SS	65mm x 88 deg Thick Wall VR SS
33	VRTW65.88WH	65mm x 88 deg Thick Wall VR White Plastic
34	VRTW65.88BLK	65mm x 88 deg Thick Wall VR Black Plastic
35	VRTW80.88CP	80mm x 88 deg Thick Wall VR Chrome
36	VRTW80.88SS	80mm x 88 deg Thick Wall VR SS
37	VRTW80.88WH	80mm x 88 deg Thick Wall VR White Plastic
38	VRTW80.88BLK	80mm x 88 deg Thick Wall VR Black Plastic

Balcony Set Up Detail

Install Drawings
