Vinylrite Roof

Vinylrite Roof

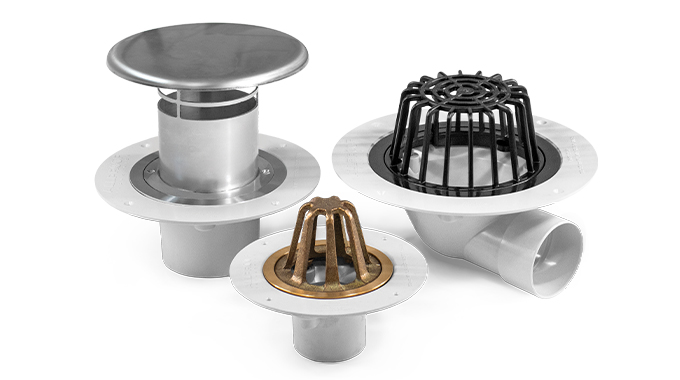

The Allproof Vinylrite Roof Drain is designed for use with liquid-applied membranes, providing a secure and durable roof drainage solution. Available with a choice of injection-moulded uPVC or 100% recycled polypropylene (PP) bases, it supports sustainable construction without compromising performance. We offer a UV-stable black plastic dome and overflow, a bronze dome, and a stainless steel overflow for outdoor applications. For covered, under-deck, and indoor use only, a white plastic flat grate is available.

Features:

- Compatible with liquid-applied membranes
- uPVC base or 100% recycled polypropylene (PP) base option
- Grate options: dome, overflow, and flat
- Outlet sizes from 50mm to 100mm
- Solvent cement connection for direct pipe attachment
- Membrane mechanically secured with three stainless steel screws and clamp ring
- Clamp ring provides a flush finish and easy maintenance access

View Full Catalogue

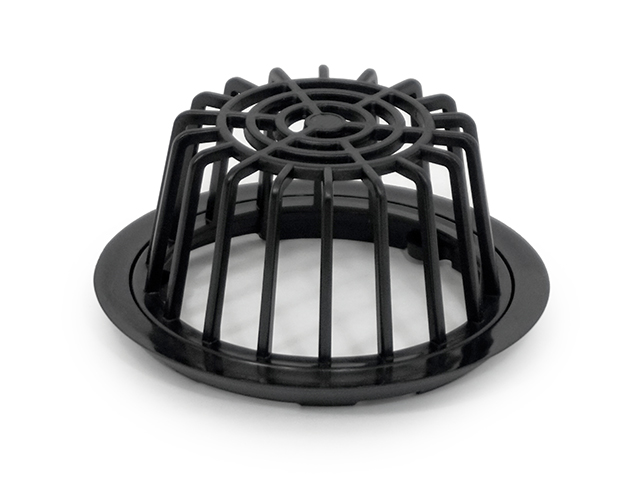

plastic roof drain membrane clamping grate dome lid — Plastic Dome

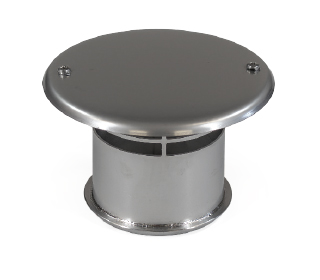

plastic roof drain overflow grate — Plastic Overflow

vinylrite 88 degree pvc flange — 50mm x 88°

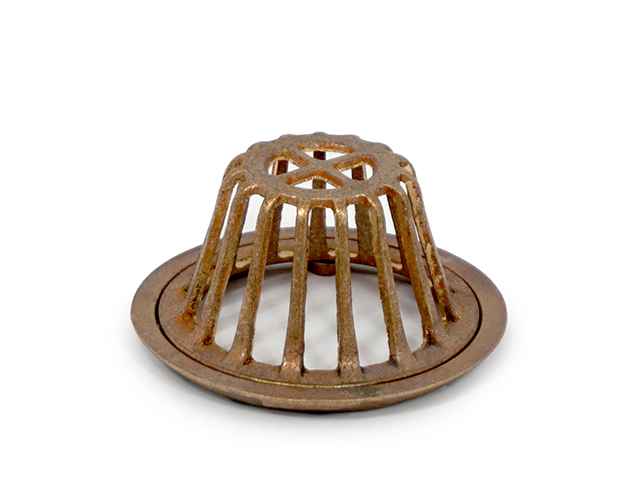

Dome - Vinylrite Roof

wdt_ID	Code	Description
21	VR50DOME	50mm Vinylrite with Bronze Dome Grate
22	VR65DOME PLAS	65mm Vinylrite with Plastic Dome Grate
23	VR65DOME	65mm Vinylrite with Bronze Dome Grate
24	VR80DOME PLAS	80mm Vinylrite with Plastic Dome Grate
25	VR80DOME	80mm Vinylrite with Bronze Dome Grate
26	VR100DOME PLAS	100mm Vinylrite with Plastic Dome Grate
27	VR100DOME	100mm Vinylrite with Bronze Dome Grate
28	VR100.50.88DOME PLAS	100mm x 50mm x 88° Vinylrite with Plastic Dome Grate
29	VR100.50.88DOME	100mm x 50mm x 88° Vinylrite with Plastic Dome Grate

Overflow - Vinylrite Roof

wdt_ID	Code	Description
20	VR65OFLOW PLAS	65mm Vinylrite with Plastic Overflow Grate
21	VR65OFLOW SS	65mm Vinylrite with SS Overflow Grate
22	VR80OFLOW PLAS	80mm Vinylrite with Plastic Overflow Grate
23	VR80OFLOW SS	80mm Vinylrite with SS Overflow Grate
24	VR100OFLOW PLAS	100mm Vinylrite with Plastic Overflow Grate
25	VR100OFLOW SS	100mm Vinylrite with SS Overflow Grate
26	VR100.50.88OFLOW PLAS	100mm x 50mm x 88° Vinylrite with Plastic Overflow Grate
27	VR100.50.88OFLOW SS	100mm x 50mm x 88° Vinylrite with SS Overflow Grate

wdt_ID	Code	Description
16	VR65WH	65mm Vinylrite with Construction Cap & White Plastic Grate
17	VR80WH	80mm Vinylrite with Construction Cap & White Plastic Grate
18	VR100WH	100mm Vinylrite with Construction Cap & White Plastic Grate
19	VR100.50.88WH	100mm x 50mm x 88° Vinylrite with Construction Cap & White Plastic Grate
