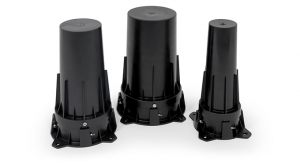

Cast In Fire Collar group image passive fire protection

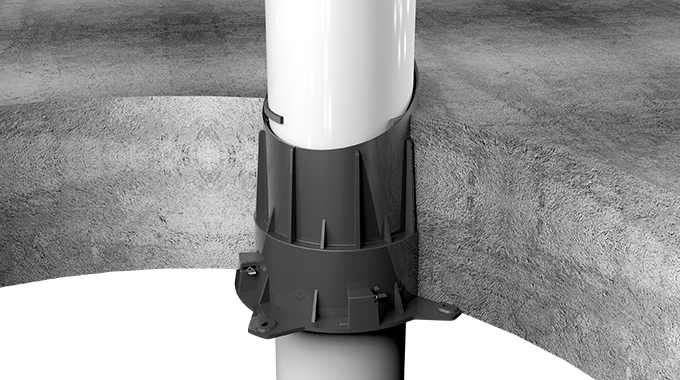

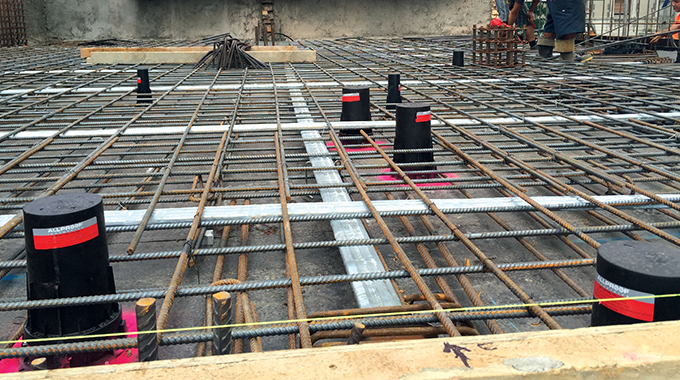

cast in fire collar in floor slab
pair coil passive fire rated penetration cast in fire collar

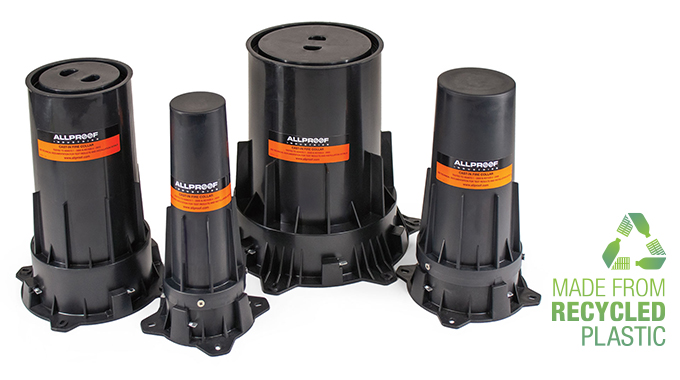

Cast In Fire Collar group image passive fire protection
cast in fire collar in floor slab
pair coil passive fire rated penetration cast in fire collar

Cast-In Fire Collars

Allproof Cast-In Fire Collars provide a reliable passive fire protection solution for plumbing pipe penetrations in concrete floors. These collars are secured to formwork before the concrete pour, eliminating the need for core drilling or retrofitting. Once the slab is poured and formwork stripped, the top is cut for fast pipe installation, delivering an efficient and compliant fire-rated solution tested to AS1530.4 and AS4072.1.

Features:

    • Pre-installed to formwork before concrete pour
    • Eliminates post-installation core drilling and retrofitting
    • Quick pipe installation by cutting off the top section post-pour
    • Fire tested to AS1530.4 and AS4072.1
    • Made from 100% recycled plastic using renewable solar energy

Branz Appraised Icon  Allproof specification masterspec

 Subscribe for Product Updates

Allproof passive fire products have been tested on plumbing and electrical service penetrations. To assist with product research and technical information our test literature has been presented in documents relevant to the service penetration that requires fire rating.

Cast-In Fire Collars

Suitable For Fitting Within:

  • Solid Masonry Floors

Features:

  • 250mm overall height
  • Sturdy construction for casting in
  • Multiple fixing positions
  • Made from recycled PP

Installation Instructions:

  1. Nail to formwork in correct location.
  2. Pour concrete floor.
  3. Remove formwork ensuring galvanised steel ring is exposed.
  4. Cut plastic collar to desired height.
  5. Install pipework.
  6. Seal gap between pipe and collar on top side of floor with intumescent sealant.

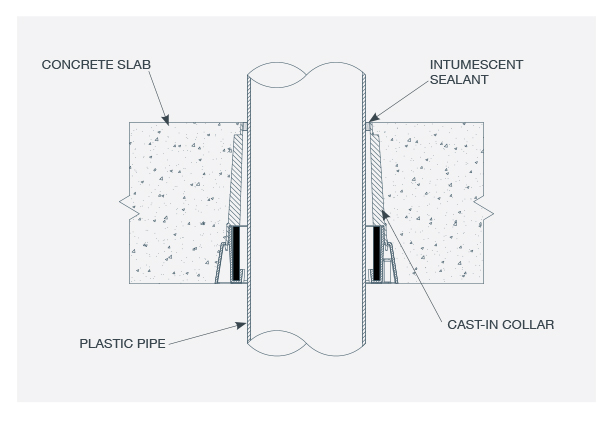

Installation Details

install detail of cast in fire collar for passive fire protection

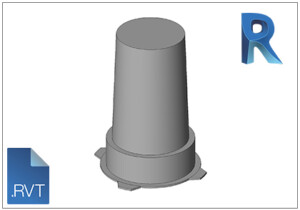

Product Revit Family
