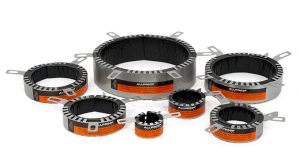

Allproof passive fire products have been tested on plumbing and electrical service penetrations. To assist with product research and technical information our test literature has been presented in documents relevant to the service penetration that requires fire rating.

Suitable For Fitting To:

• • Concrete, masonry, brick walls
  • Plasterboard walls & ceilings
  • Concrete floors
  • Hollow core construction floors

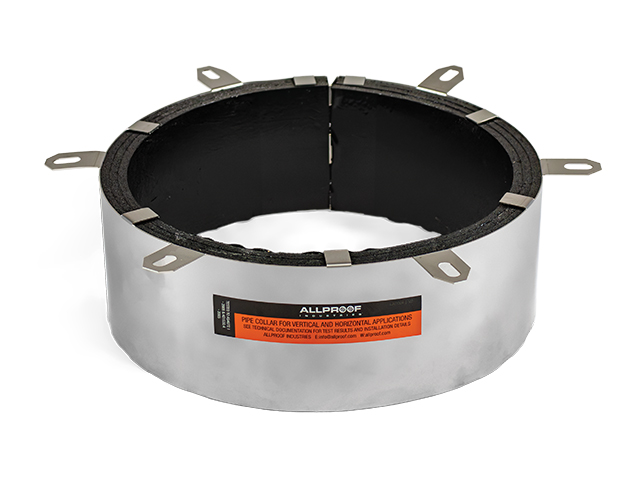

Features:

• • Totally unaffected by water
  • Unique low profile design (25-80mm)
  • Tested on PVC socket connections for floor stack installations (40-100mm)
  • Stainless or galvanized steel case
  • Retro fitting – easy install slide tab
  • For use on various plastic pipes

Installation Instructions:

1. 1. Ensure substrate around pipe is flat and free from obstructions.
   2. Open pipe collar and position around pipe.
   3. Slide tab through slot in pipe collar and fold back 180° to secure.
   4. Secure pipe collar into concrete by using M6 masonry anchors or expanding metallic bolts. Install pipe collars into plasterboard using expanding hollow core wall anchors. Do not use fixings which rely on plastic or nylon components for grip.
   5. Install only from underside on floor penetrations. Install pipe collar on both sides for wall penetrations.

For test results please see our Fire Brochure literature.

Fire-Penetration-Schedule.xlsx

---

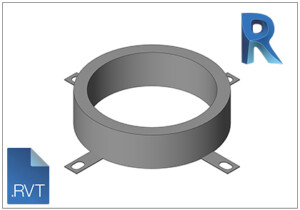

Revit Files

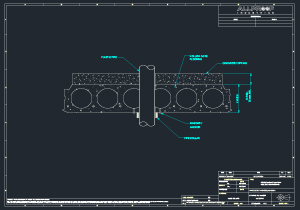

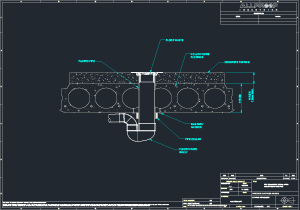

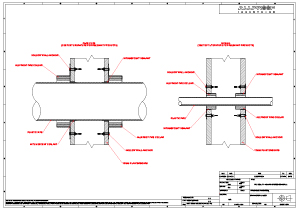

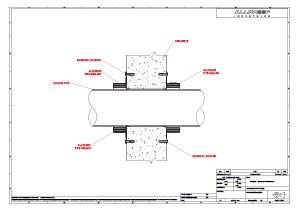

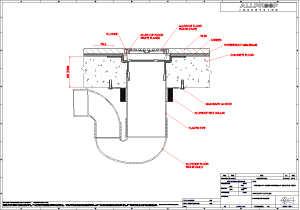

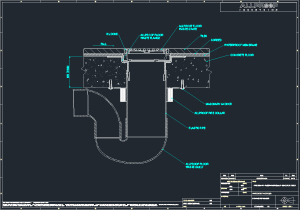

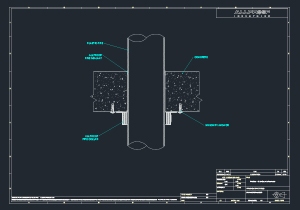

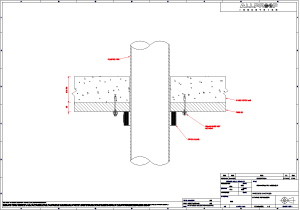

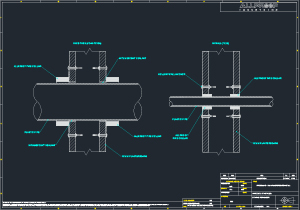

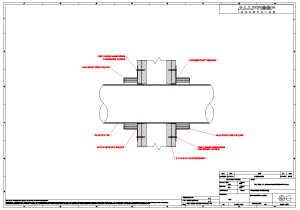

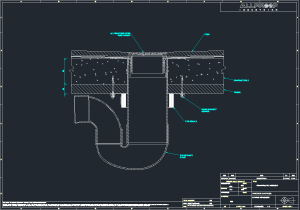

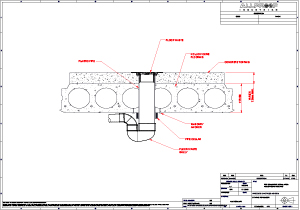

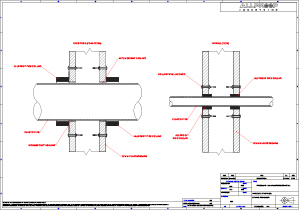

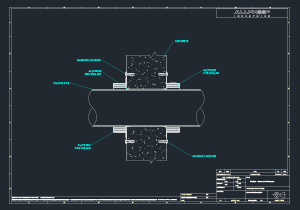

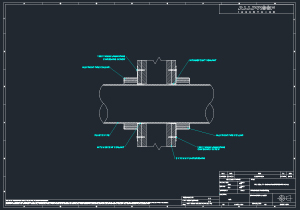

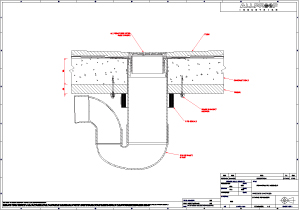

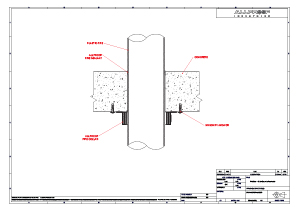

Install Details
