Home » Products » Polymer Concrete Pits

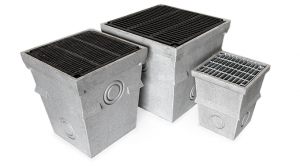

Allproof Industries PC Range utilises polymers to supplement cement as the binder material, this creates a durable product that is highly resistant to a wide variety of chemicals and has extremely low permeability, making it excellent for heavy-duty commercial drainage installation. Available in a range of sizes and grate options, and available rated from load class A to E.
PIT33
PIT33 Riser
PIT45
PIT45 Riser
PIT66
PIT66 Riser
Please see bottom of page for product drawings.
Polymer Concrete Pits - Pits
| wdt_ID | Code | Description |
|---|---|---|
| 48 | PCPIT 66 | PC Pit 676 Wide X 616 Deep |
| 49 | PCPIT 45 | PC Pit 526 Wide X 600 Deep |
| 50 | PCPIT 33 | PC Pit 374mm Wide X 450 Deep |
Polymer Concrete Pits - Risers
| wdt_ID | Code | Description |
|---|---|---|
| 48 | PCRISER 66 | PC Pit Riser 676 Wide X 300 High |
| 49 | PCRISER 45 | PC Pit Riser 526 Wide X 300 High |
| 50 | PCRISER 33 | PC Pit Riser 374 Wide X 300 High |
Polymer Concrete Pits - Grates
| wdt_ID | Code | Description |
|---|---|---|
| 52 | PIT33 WW B | PC Pit 33 WW SS Grate Class B |
| 53 | PIT33 LAS | PC Pit 33 Las Grate |

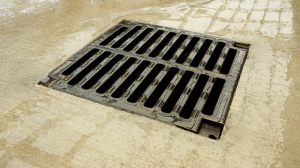

| 54 | PIT33 CI | PC Pit 33 Cast Iron Grate |
| 55 | PIT33CSS B | PC Pit 33 Cover Stainless Steel Class B |
| 56 | PIT33 GALV | PC Pit 33 Galv Steel Grate |
| 57 | PIT45 WW B | PC Pit 45 WW SS Grate Class B |
| 58 | PIT45 CI | PC Pit 45 Heelproof Cast Iron Grate |
| 59 | PIT45CSS B | PC Pit 45 Cover Stainless Steel Class B |
| 60 | PIT45 GALV | PC Pit 45 Galv Steel Grate |
| 61 | PIT66 WW B | PC Pit 66 WW SS Grate Class B |
| 62 | PIT66 HCI | PC Pit 66 Heelproof Cast Iron Grate |
| 63 | PIT66CSS B | PC Pit 66 Cover Stainless Steel Class B |
| 64 | PIT66 GALV | PC Pit 66 Galv Steel Grate |
Polymer Concrete Pits - Pit33 - Assemblies
Polymer Concrete Pits - Pit45 - Assemblies
| wdt_ID | Pit | Grate | Riser | .pdf File | CAD File |
|---|---|---|---|---|---|
| 41 | PIT45 | Wedge Wire | - | ||
| 42 | PIT45 | Cast Iron | - | ||
| 44 | PIT45 | Galv | - | ||
| 45 | PIT45 | Cast Iron | PCRISER 45 | ||
| 46 | PIT45 | Wedge Wire | PCRISER 45 | ||
| 47 | PIT45 | Galv | PCRISER 45 |
Polymer Concrete Pits - Pit66 - Assemblies
Technical Documents
Install Guide
Load Class
Material Analysis Report
Cast Iron Material Information Sheet
Galv Material Information Sheet
Install Details
PC Pit Install Detail
Polymer Concrete Pit Volume Capacity (L)
| wdt_ID | Code | Description | Total Litre Capacity |
|---|---|---|---|
| 18 | PCRISER33 | PC Pit Riser 374 Wide x 300 High | 28.4L |
| 19 | PCPIT66 | PC Pit 676 Wide x 616 Deep | 162.1 |
| 20 | PCPIT45 | PC Pit 526 Wide x 600 Deep | 89.4L |
| 21 | PCPIT33 | PC Pit 374 Wide x 450 Deep | 29.5L |
| 22 | PCRISER45 | PC Pit Riser 526 Wide x 300 High | 57.4L |
| 23 | PCRISER66 | PC Pit Riser 676 Wide x 300 High | 105.9L |
