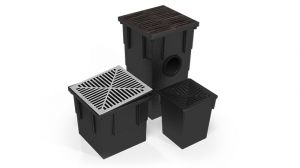

Allproof’s square pit range provide a stormwater catchment sump for external areas. Injection moulded from 100% recycled plastic these excellent drainage pits bring an economic solution while accommodating for environmental sustainability.

The pits come in three sizes, 250mm square by 300 deep, 350mm square by 325mm deep or 350mm square by 600mm deep. the 350mm square pits both come with pre-marked outlets and an easy install rubber gasket pipe seal for Ø100mm pipe. The 600mm depth pit provides 300mm depth at the bottom for sediment catchment. Pit volumes from 12 – 45 litres.

Grate have been designed to match or compliment the grates form Allproof’s linear channel ranges so design consistency can be achieved across all exterior drainage systems.

Drainage Pit Grates

These drainage pits are highly adaptable, they can be installed in commercial or residential projects. Square plastic pits boast a wide range of drainage grates to suit the aesthetic and performance requirements of install environments. Grates have been load class tested for vehicle and foot traffic with heelproof options available for pedestrianised areas. The stainless steel wedge wire grate has a slip resistance classification of R11 and a total open area of 30% with individual open areas of 100mm2. This makes the Wedge Wire grate the perfect solution of pavements, pedestrianised streets and urban areas with lots of foot traffic. The tile insert grate acts as a sump / pit cover with a recess that a tile can be installed into. The grate provides a drainage path around the outside meaning only a narrow reveal is visible, this solution is ideal for residential courtyards and patios but can also be incorporated into urban planning zones. The cast iron grate provides a commercial solution for heavier traffic while still being heelproof.

Drainage Pits - 350x350



Drainage Pits - 250x250



Drainage Pits - Seals



Pit Assemblies

Drainage Pit Volume Capacity (L)


Material Information
