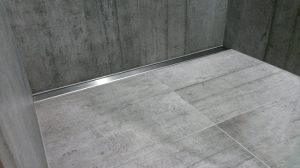

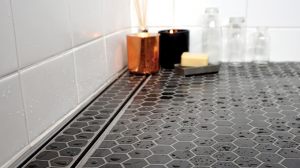

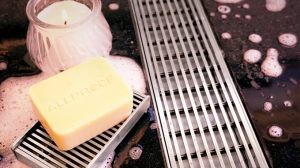

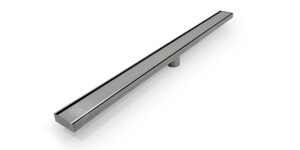

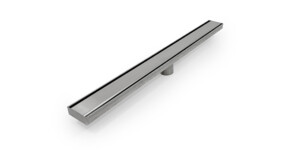

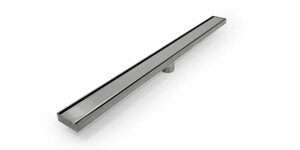

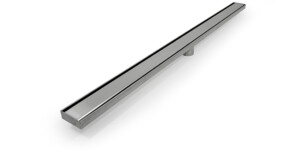

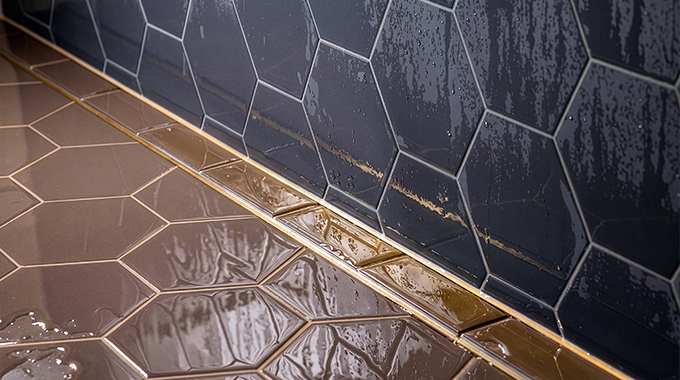

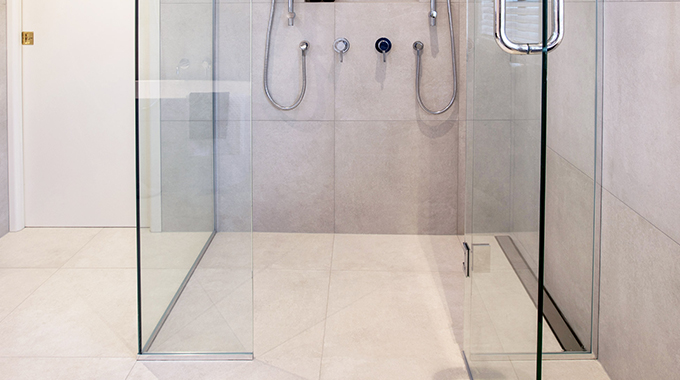

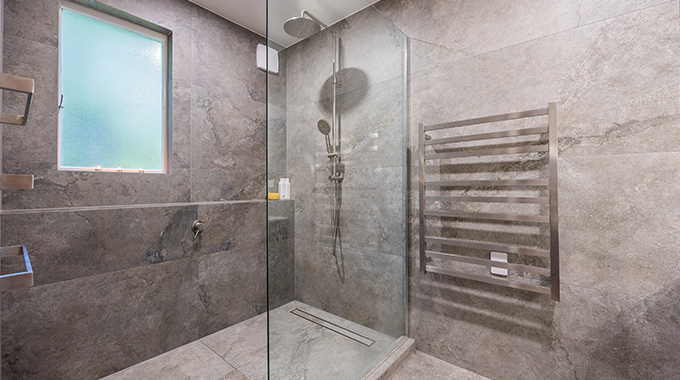

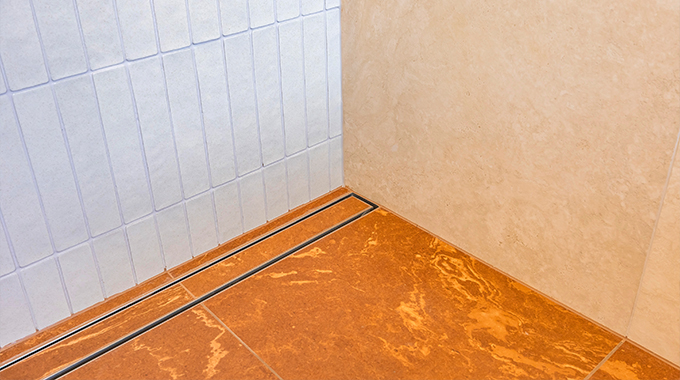

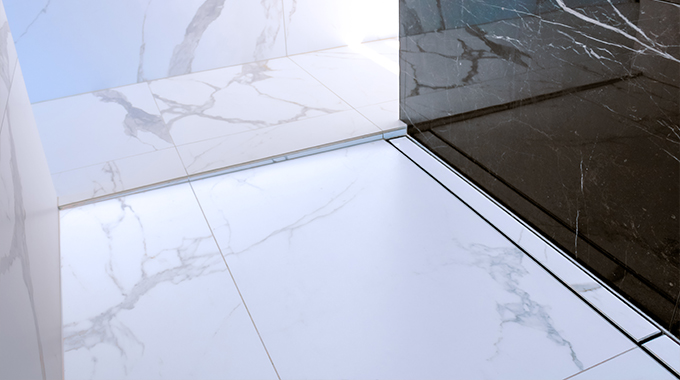

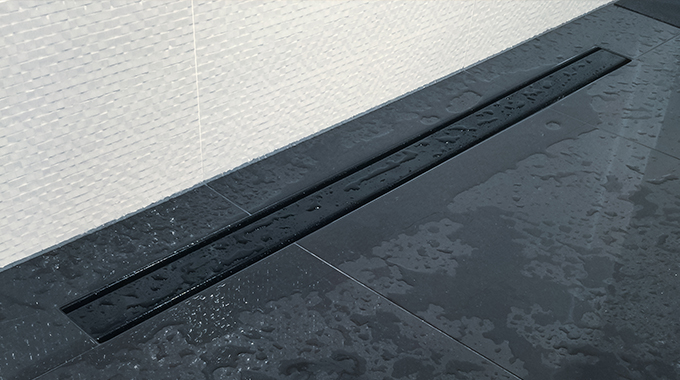

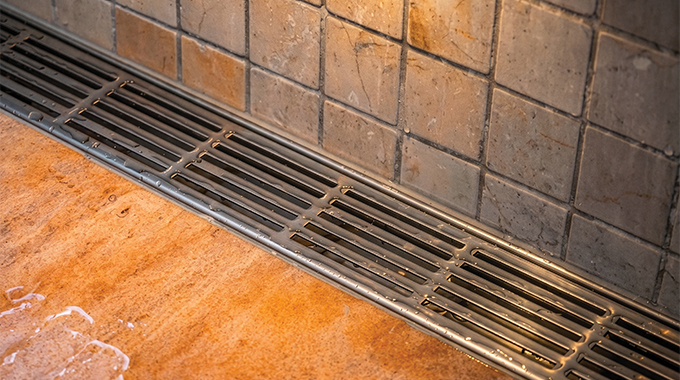

The Vision Series is a high grade stainless steel linear channel drainage system with a centre outlet and a choice of 5 grate designs. This highly durable strip drain makes the perfect solution for tiled showers in modern bathrooms. The Vison Series can by installed against a wall or in the centre of the floor / shower entrance creating a threshold drain to prevent the spill of surface water outside of the shower area.

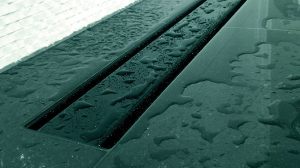

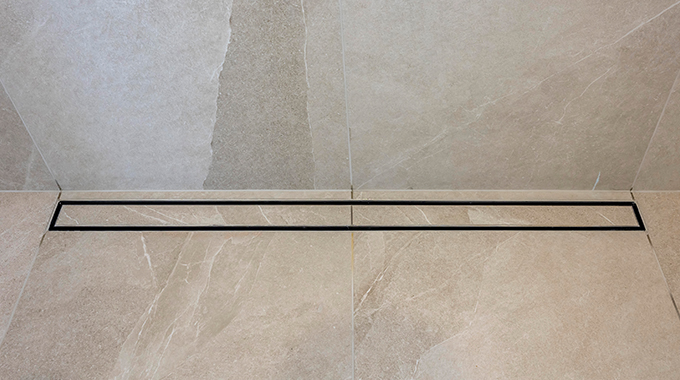

The tile insert linear grate creates a discreet drainage system by blending in with the floor tiles and only leaving a narrow but efficient drainage gap, alternatively select from a range of stylish modern grates to suit a variety of bathroom designs. The channel length and outlet location are customisable meaning it can be tailored to individual bathroom designs. Electroplated and powder coated colours also available when designing a custom channel drain.

Vision channels come with a VF80 puddle floor flange which is designed specifically for shower trench drains. This provides an excellent surface for the waterproof membrane to be applied to. Using a Vision Shower Channel over a channel with a built in flange reduces the surface area for waterproof membrane bonding and therefore any associated risk. A floor waste gully trap is also available to complete the system.

Puddle flange waterproofing drainage grate channel drain plastic fitting

As New Zealand’s leading drainage system manufacturer you can trust Allproof to lead the way with the latest innovative ideas for your bathroom.

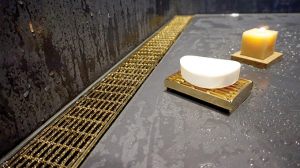

Inspired by current trends and taking note from times gone by our new Metal Collection provides a traditional touch to modern design.
Our products are proudly manufactured in New Zealand to the quality associated with Allproof and the premium finishes of gold, copper and powder coating.
Metal Collection finishes are electroplated onto Allproof stainless steel VISION series shower channels, Elegance, Wakatipu and Kaiteri grates as well as bathroom accessories.
For custom plated and powder coated finishes please allow extra time as these are made bespoke to order.
For these finishes please download a custom form and note the required finish in the appropriate section.
Please note colours may vary on your computer screen display due to settings.

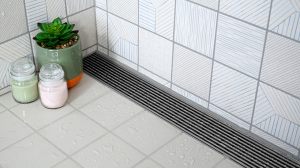

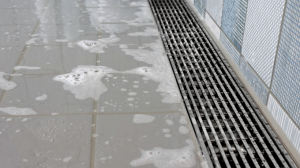

Equator


Horizon

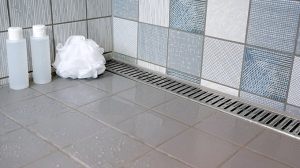

Sunrise

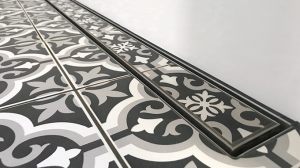

Tile Insert

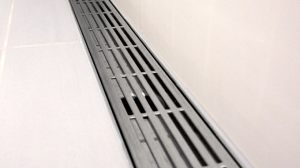

Vapour

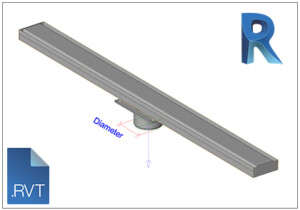

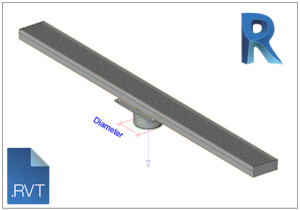

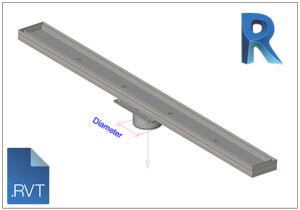

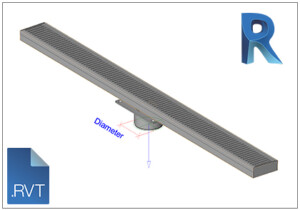

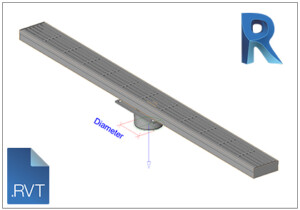

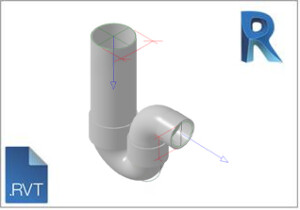

Revit Files


Vision Channel Install Drawings


Vision Channel Install Guide


Maintenance Guides
