Large Diameter Roof Drains

Name: Large Diameter Roof Drains
SKU: DRCR/FCR 168.65DRCR 168.80DRCR 168.100DRCR 168.100DRCR90 168.150DRCR 168.200DRCR 168.225DRCR 168.65FCR 168.80FCR 168.100FCR 168.100FCR90 168.150FCR 168.200FCR 168.65DRCROFLOW 168.80DRCROFLOW 168.100DRCROFLOW 168.100DRCROFLOW90 168.150DRCROFLOW 168.65FCROFLOW 168.80FCROFLOW 168.100FCROFLOW 168.100FCROFLOW90 168.150FCROFLOW

Large Diameter Roof Drains

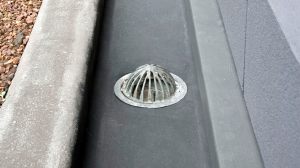

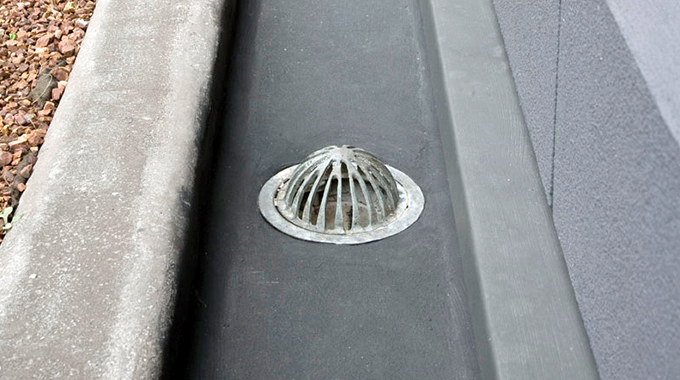

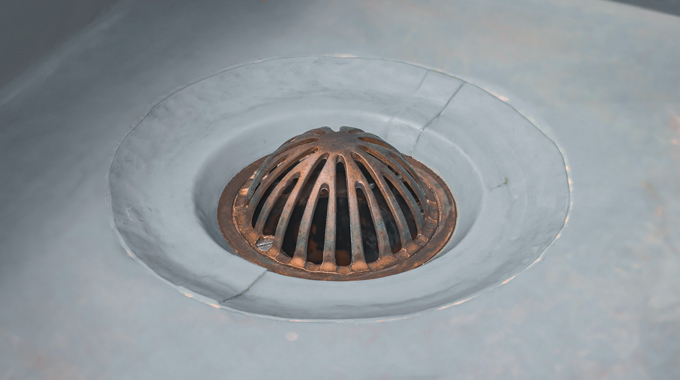

Allproof’s Large Diameter Roof Drains are designed for commercial and residential applications requiring high-performance, durable roof drainage. The cast bronze body provides a robust surface for secure waterproofing membrane application, with a clamp ring mechanically securing the membrane for a flush finish. The removable grate or overflow allows for easy access and maintenance, ensuring long-term performance.

Features:

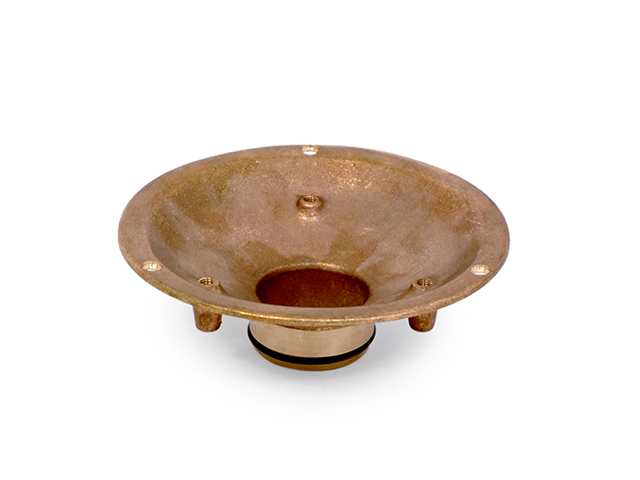

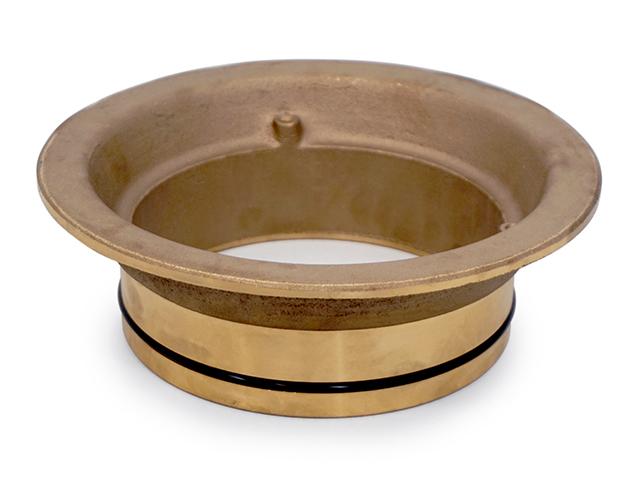

- Cast bronze base with internal O-ring seal for pipe insertion.
- Clamp ring secures waterproofing membrane with flush finish.

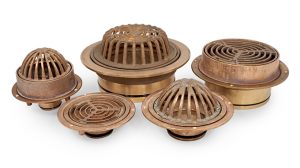

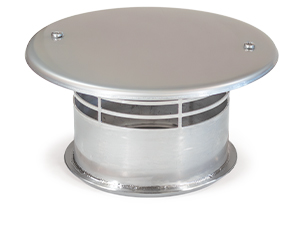

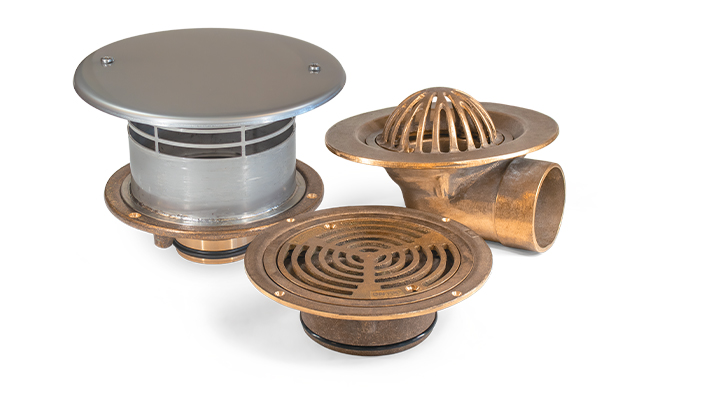

- Grate options: domed, flat, stainless steel overflow.
- Removable grate for easy downpipe access without disturbing membrane.
- Compatible with pipe sizes 65mm–200mm.

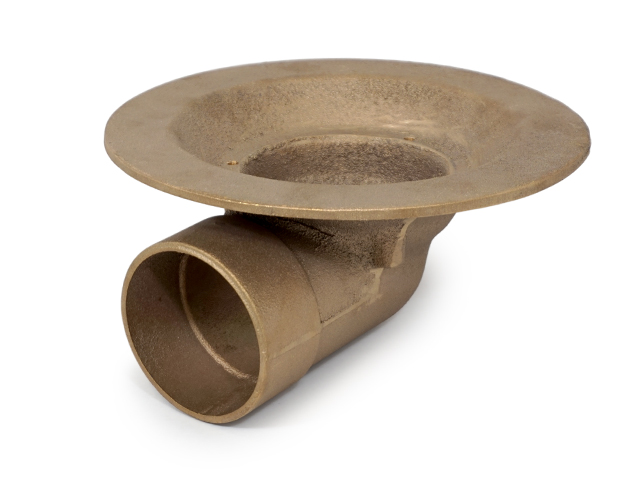

- 88° side outlet option available for 100mm pipes.
- Independently flow rate tested for verified performance.

View Full Catalogue

Dome - Large Roof Drains

wdt_ID	Code	Description

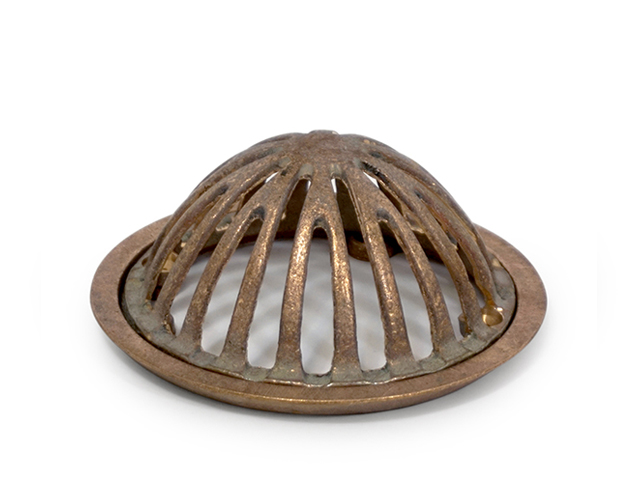

1	168.65DRCR	65mm Bronze Base & Dome Grate with Clamp Ring

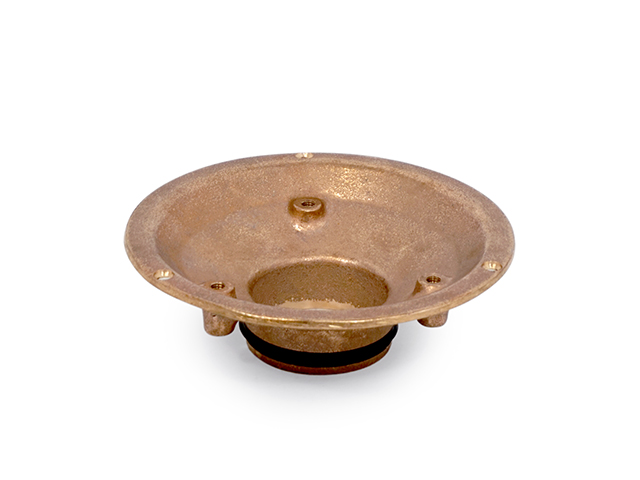

2	168.80DRCR	80mm Bronze Base & Dome Grate with Clamp Ring
3	168.100DRCR	100mm Bronze Base & Dome Grate with Clamp Ring
4	168.100DRCR90	100mm x 88° Bronze Base & Dome Grate with Clamp Ring
5	168.150DRCR	150mm Bronze Base & Dome Grate with Clamp Ring
6	168.200DRCR	200mm Bronze Base & Dome Grate with Clamp Ring
7	168.225DRCR	225mm Bronze Base & Dome Grate with Clamp Ring

Flat - Large Roof Drains

Overflow - Large Roof Drains

wdt_ID	Code	Description
11	168.65OFLOW SS	65mm Bronze Base & SS Overflow with Clamp Ring
12	168.80OFLOW SS	80mm Bronze Base & SS Overflow with Clamp Ring
13	168.100OFLOW SS	100mm Bronze Base & SS Overflow with Clamp Ring
14	168.100OFLOW SS 90	100mm x 88° Bronze Base & SS Overflow with Clamp Ring
15	168.150OFLOW SS	150mm Bronze Base & SS Overflow with Clamp Ring
16	168.200OFLOW SS	200mm Bronze Base & SS Overflow with Clamp Ring
17	168.65DRCR OFLOW	65mm Cast Bronze Domed Overflow Roof Drain with Clamp Ring
18	168.80DRCR OFLOW	80mm Cast Bronze Domed Overflow Roof Drain with Clamp Ring
19	168.100DRCR OFLOW	100mm Cast Bronze Domed Overflow Roof Drain with Clamp Ring
20	168.100DRCR OFLOW 90	100mm Cast Bronze 88° Side Outlet Domed Overflow Roof Drain with Clamp Ring

Large Diameter Roof Drains

Large Diameter Roof Drains

Features:

Dome - Large Roof Drains

Flat - Large Roof Drains

Overflow - Large Roof Drains

Revit

Install Drawings

Specialists in Plumbing, Drainage & Passive Fire Protection Products

Allproof Industries is a New Zealand family-owned manufacturing, marketing and distribution company specialising in Plumbing, Drainage Systems and Fire Protection Products.

wdt_ID	Code	Description

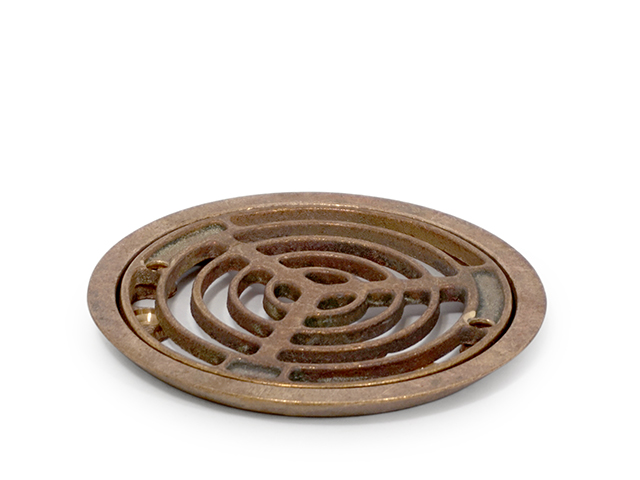

1	168.65FCR	65mm Bronze Base & Flat Grate with Clamp Ring
2	168.80FCR	80mm Bronze Base & Flat Grate with Clamp Ring
3	168.100FCR	100mm Bronze Base & Flat Grate with Clamp Ring
4	168.100FCR90	100mm x 88° Bronze Base & Flat Grate with Clamp Ring
5	168.150FCR	150mm Bronze Base & Flat Grate with Clamp Ring
6	168.200FCR	200mm Bronze Base & Flat Grate with Clamp Ring

Large Diameter Roof Drains

Large Diameter Roof Drains

Features:

Dome - Large Roof Drains

Flat - Large Roof Drains

Overflow - Large Roof Drains

Revit

Install Drawings
